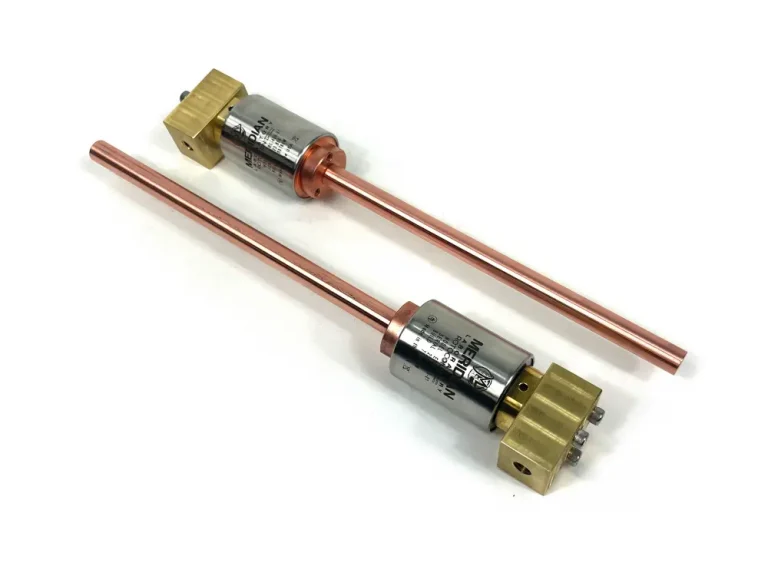

Custom Rotary Grounds Part Close Up ERG-400-0728

Plating ROTOCON Custom Rotary Grounds Part Close Up

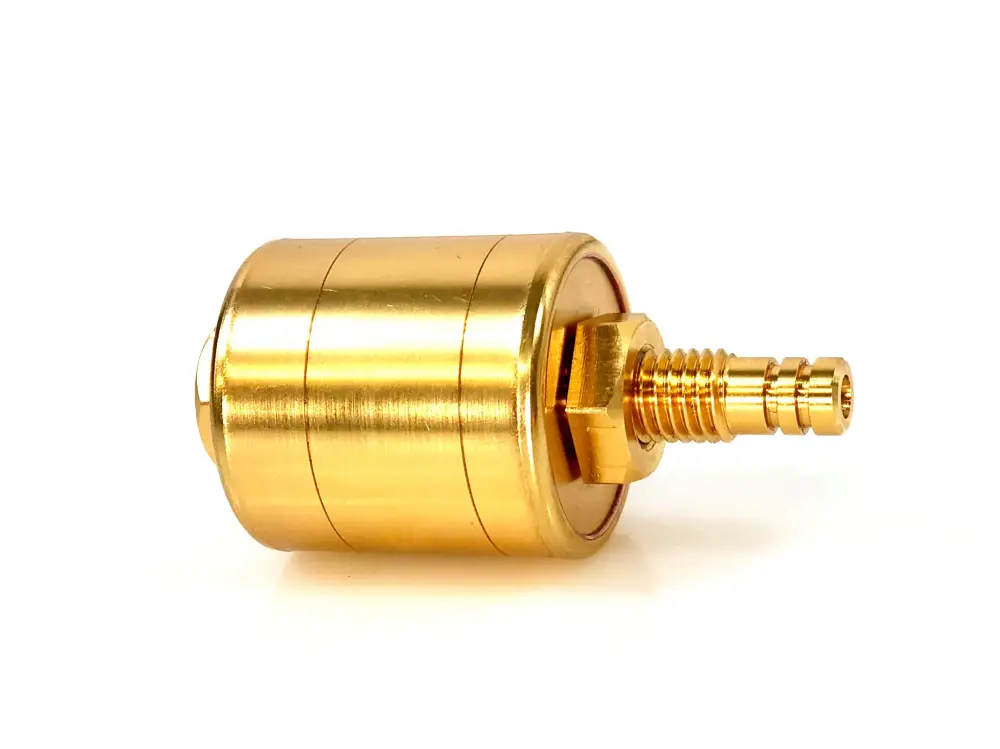

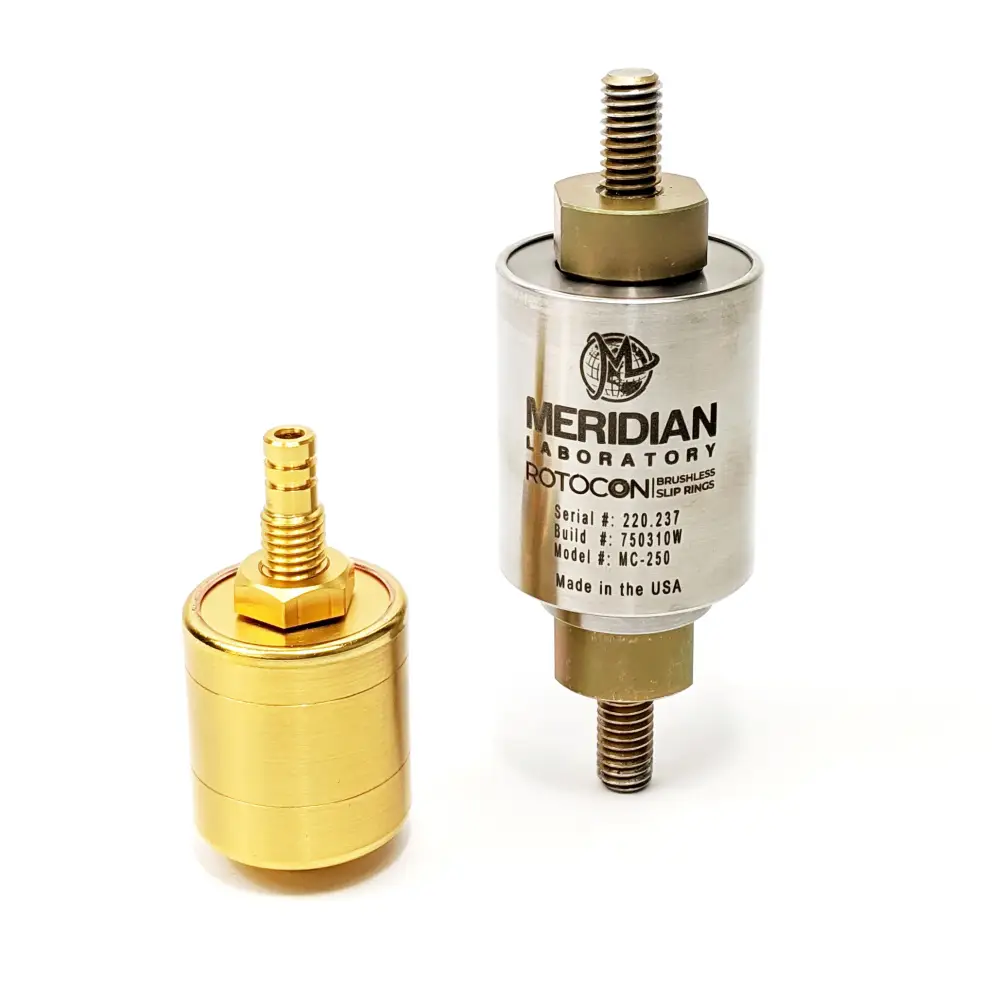

Gold ROTOCON Custom Rotary Grounds Part Close Up

Request A Quote

OVERVIEW

Customized ROTOCON Rotary Electrical Grounds Designed to Meet Your Exact Needs

Precision-Engineered Solutions – Designed to meet exact application requirements
Maintenance-Free Performance – No grease, brush replacements, or adjustments required
Stable Current Transfer in Rotary Applications – Eliminates fluctuations for high-precision applications
Flexible Customization – Options for size, mounting, material, and environmental sealing
Proven Reliability – Trusted across industries for long-lasting, high-performance operation

With decades of expertise, Meridian Laboratory specializes in designing and manufacturing custom rotary electrical grounds for applications requiring stable, high-current transfer. While our standard ROTOCON rotary grounds are widely used in rotary welding, electroplating, electropolishing, and other manufacturing processes, we specialize in custom rotary grounding solutions for applications requiring a specific size, form factor, environmental protection, installation method, or process-driven requirement.

Our custom rotary electrical grounds have been successfully implemented across industries such as semiconductor, welding, plating, and other high-current industrial applications worldwide. Whether you need a low-volume prototype or production level volumes, we deliver cost-effective, maintenance-free rotary grounding solutions that ensure stable, consistent current delivery without fluctuations or degradation over time.

Customizations

ROTOCON Rotary Ground Customization Capabilities

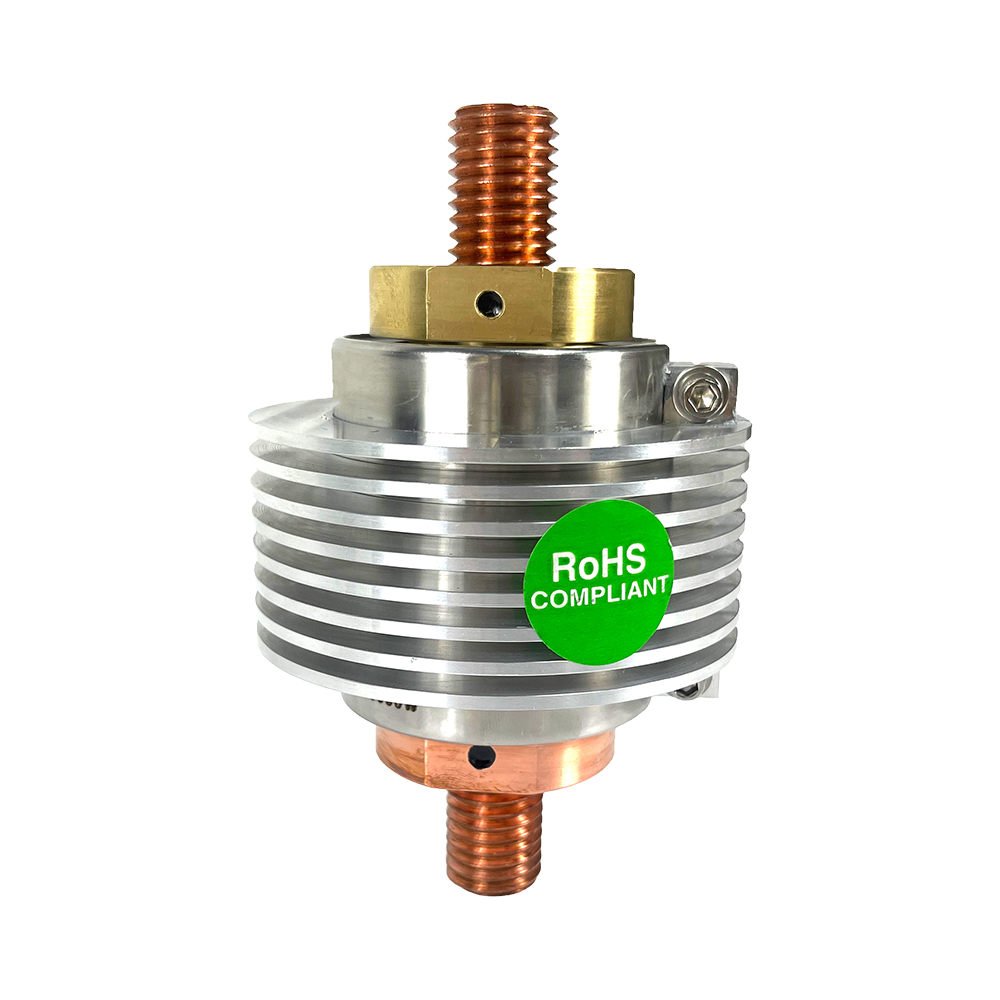

MECHANICAL Electrical Environment RoHS

CUSTOM ROTARY GROUNDS TO FIT YOUR APPLICATION

Rotating ground circuits are oftentimes overlooked during the design cycle, or are challenging to incorporate with other aspects of a design and equipment. Meridian Laboratory can provide custom rotary grounds to match the size, rotational speed, mounting, and form factor requirements of your application.

Customized mounting methods
Specialized form factors and sizes
Ability to integrate with pre-existing equipment and designs
High speed rotary grounds
Rotary grounds for linear feed applications

Discover More

ROTARY GROUNDS FOR CHALLENGING ELECTRICAL REQUIREMENTS

Rotating electrical grounds are a critical link in rotating equipment and applications. For challenging electrical requirements, Meridian Laboratory develops custom ROTOCON rotary grounds to meet your specific needs.

Static discharge rotary grounds
Lightning strike tested rotary grounds
High voltage power line safety rotary grounds
High frequency rotary grounds
RF rotary grounds specific for operation at 13.56 MHz
High current rotary grounds up to 20,000 amps
High voltage rotary grounds rated for hundreds of thousands of volts

Discover More

CUSTOM ROTARY GROUNDS DESIGNED TO LAST

Meridian Laboratory designs high performance, custom rotary grounds to endure the challenging environments in which they are utilized. Whether it is exposure to corrosive substances, extreme temperatures, or wet and humid conditions, our custom rotary grounds are engineered to deliver consistent, reliable performance under the toughest circumstances.

Specialized rotary grounds for corrosive applications
Sealed rotary grounds for wet and humid environments
Protective enclosures for extreme environments

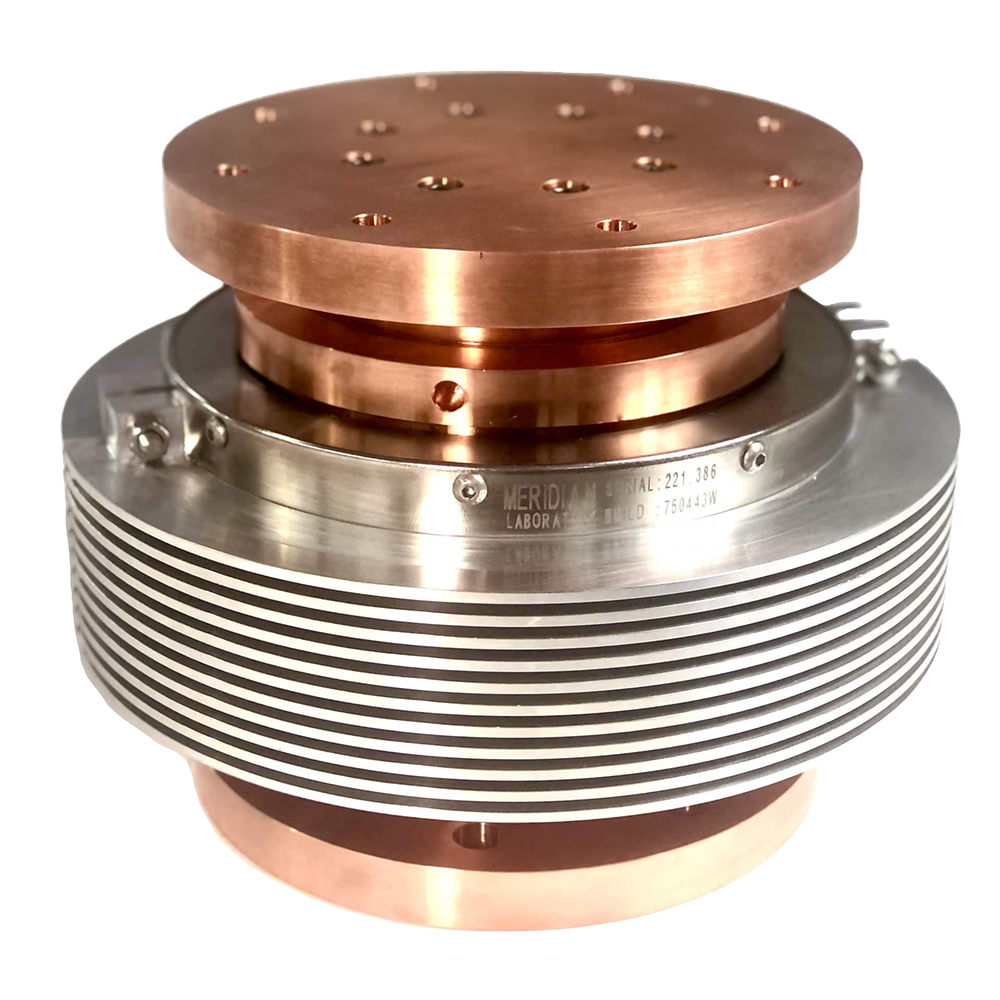

Cooling mechanisms for high temperature applications

Discover More

NON-MERCURY ROTARY GROUNDS FOR SENSITIVE APPLICATIONS

Meridian Laboratory offers non-mercury, custom ROTOCON rotary grounds catering to sensitive applications. They can provide the same stable and consistent current delivery, without the need for maintenance or adjustments. Non-mercury, custom ROTOCON rotary grounds regularly surpass hundreds of millions of total revolutions.

Non-mercury, liquid contact models available for sensitive applications
Provide consistent and repeatable performance akin to mercury rotary grounds
Maintenance-free rotary ground performance

Discover More

Projects

Custom Rotary Ground Solutions

Meridian Laboratory specializes in delivering custom slip rings and rotary solutions for high-performance applications worldwide.

Use the filter below to explore our diverse range of custom slip ring solutions!

Select Your Specifications

UHS-201-011-F

Meridian Laboratory Placeholder Product Filters

Channels: 1
Amperage: 0.3A
Operating Speed: 20,000
Mounting: Flange
Data Speed: N/A
Voltage: N/A

Request Datasheet

View Series

MCT-100-4mm

Channels: 1
Amperage: 100A
Operating Speed: 3,000
Mounting: End-of-Shaft
Data Speed: N/A
Voltage: 600V

Request Datasheet

View Series

ERGS-250-1027

Channels: 1
Amperage: 250A
Operating Speed: 100
Mounting: End-of-Shaft
Data Speed: N/A
Voltage: 600V

Request Datasheet

View Series

ERG-400-SCI

Channels: 1
Amperage: 400A
Operating Speed: 1,000
Mounting: End-of-Shaft
Data Speed: N/A
Voltage: 600V

Request Datasheet

View Series

UHS-201-111

Channels: 1
Amperage: 0.3A
Operating Speed: 40,000
Mounting: End of Shaft
Data Speed: N/A
Voltage: N/A

Request Datasheet

View Series

FAQs

Common Custom Rotary Ground Questions

What is the minimum quantity required for a custom ROTOCON?

There is no minimum order requirement for a custom ROTOCON slip ring. In most cases, we can tailor our standard models to fit your specific needs without a minimum quantity requirement.

For more complex or highly specialized projects, we work closely with your R&D and engineering teams to efficiently develop prototype, pre-production, and final production models at each stage of your project. Whether you need a single unit or a full production run, we are committed to delivering the right solution for your application. Contact us to discuss your requirements!

What is the expected lifespan of a ROTOCON rotary ground?

ROTOCON rotary grounds are built to provide reliable, uninterrupted electrical contact over an extended operational lifespan, frequently surpassing 500 million revolutions without requiring cleaning, conductive grease, or brush maintenance. Our designs emphasize long-term performance and dependability, using carefully selected materials and components to ensure a robust, maintenance-free solution.

Do you offer a rotary ground with an integrated rotary gas union?

Yes, Meridian Laboratory offers a standard model ERGT-800-1PRU, offering the functionality of being both a rotating electrical ground and a gas/air union combined into one solution. We also offer custom rotary grounds and rotary unions based on the specific needs of your application. Please visit our Rotary Union Combination page or contact us to learn more.

What is the average lead time?

Lead times vary based on the specific model and quantities being requested. Some of our standard ROTOCON models are in-stock, or have the ability to be ready in a matter of weeks. For basic customizations, we generally estimate a lead time of 4-8 weeks. The delivery time for very specific and in-depth custom ROTOCON rotary electrical connectors largely depends on the scope of the project and specific details of the application. Please contact us for more information relative to your specific project and how we can support your needs.

Can a ROTOCON be used with high frequency signals or power?

Yes, certain ROTOCON rotary electrical connectors and rotary grounds are able to carry high frequency signals and power. Contact the Technical Sales Team to discuss detailed specifications.

Can a ROTOCON rotary ground be used as a rolling contact?

Yes, a ROTOCON rotary ground can serve as a rolling electrical contact in applications that require a continuous, low-resistance ground path. However, it’s important to verify that your application’s mechanical and electrical requirements align with the capabilities of the specific ROTOCON model. We recommend reaching out to discuss your specifications so we can ensure the best fit for your needs.

View All Faq’s

Custom Options

Engineering Capabilities & Services

Engineering & Design Precision Machining Manufacturing & Assembly Testing & Validation Ongoing Support

Meridian Laboratory starts every project by working to understand the goals and objectives of a customer’s application. Our experienced engineering team works with companies large and small across the world in a wide variety of industries. Our electrical, mechanical, and application support engineers have a diverse set of experiences to aid in solving the most challenging problems related to rotational motion. Most custom ROTOCON rotating electrical connectors can be designed from our expansive library of standard models and easily modified to meet your requirements without non-recurring engineering (NRE) costs involved. Additionally, we have the expertise to provide fully custom rotary solutions for complex applications.

100% In-House Engineering & Design
Prototype to Production Level Support
Research & Development Testing
Drawing & Revision Control

Discover More

Meridian Laboratory produces the machined components utilized within our ROTOCON slip rings in-house, from prototype to production, regardless of complexity or tolerance. Our highly experienced machining team utilizes the latest machine tools and measurement equipment to ensure the highest quality components go into our final product. We have expertise working with a wide variety of materials including stainless steel, carbon steel, titanium, copper, brass, bronze, aluminum, plastics, and more.

CNC and manual machining equipment to support all volumes
Ability to machine 1-off prototypes
Automated bar pullers and parts catching for maximum output
Precision measurement equipment capable of measuring to 0.000027″ (0.0006858mm)

Discover More

All ROTOCON slip rings and rotary solutions are assembled in the United States by Meridian Laboratory’s team of trained technicians, from project start to completion. Our facilities and workflows allow for both prototype and high-volume production.

The components utilized within ROTOCON slip rings are strictly inspected and measured at numerous points during assembly to ensure quality conformance. All ROTOCON slip rings undergo final rotational and electrical bench testing prior to shipment. The results of this test are included with each ROTOCON slip ring as a Certificate of Conformance.

Extensive training program for assembly technicians
ERP inventory and manufacturing order tracking system
Quality system checks implemented at numerous points of manufacturing
Part serialization and traceability

Discover More

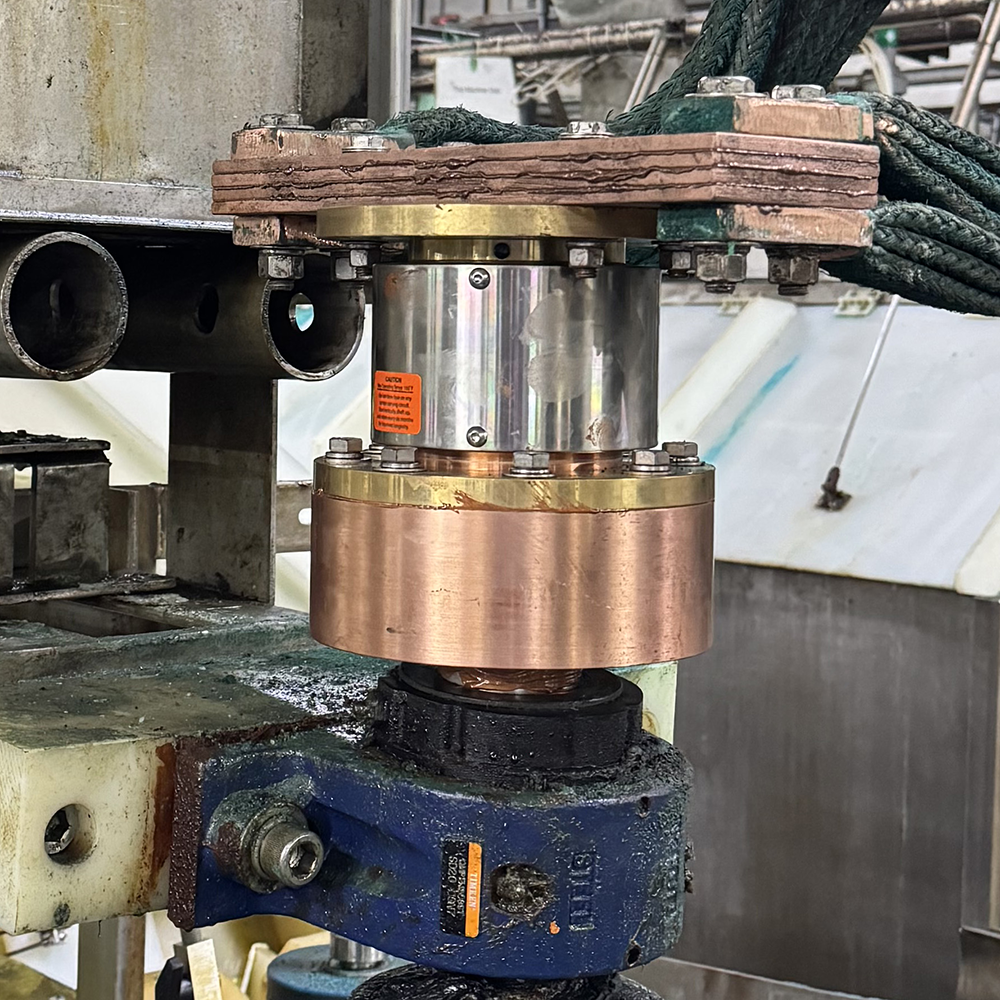

ROTARY GROUNDS DESIGNED FOR MANUFACTURING AND HARSH ENVIRONMENTS

Meridian Laboratory owns and utilizes a wide variety of standard and custom test and verification tools to benchmark, test, and certify its high performance ROTOCON rotary electrical slip rings. We can also provide developmental qualification testing to ensure potential rotary electrical solutions meet the application requirements of our customers, prior to design finalization and manufacturing.

First Article Inspection (FAI)
Certificate of Conformance (CoC) for all products
100% End-of-Line Testing
Performance Verification Testing (PVT)
Burn-In Testing
High Current Testing
High Voltage Insulation Testing
Ethernet Bit Error & Packet Loss Testing
Environmental Chamber Testing
High Speed Rotational Testing
Kelvin Resistance Testing
HALT Testing
Reliability / Longevity Testing
Material Compatibility Testing
Customer Application Specific Testing

Discover More

Meridian Laboratory is dynamic in offering additional services and support to meet the specific needs of our customers. From initial inquiry to ongoing volume production and beyond, we work to ensure unbeatable quality and service is provided for every project and customer.
