OVERVIEW

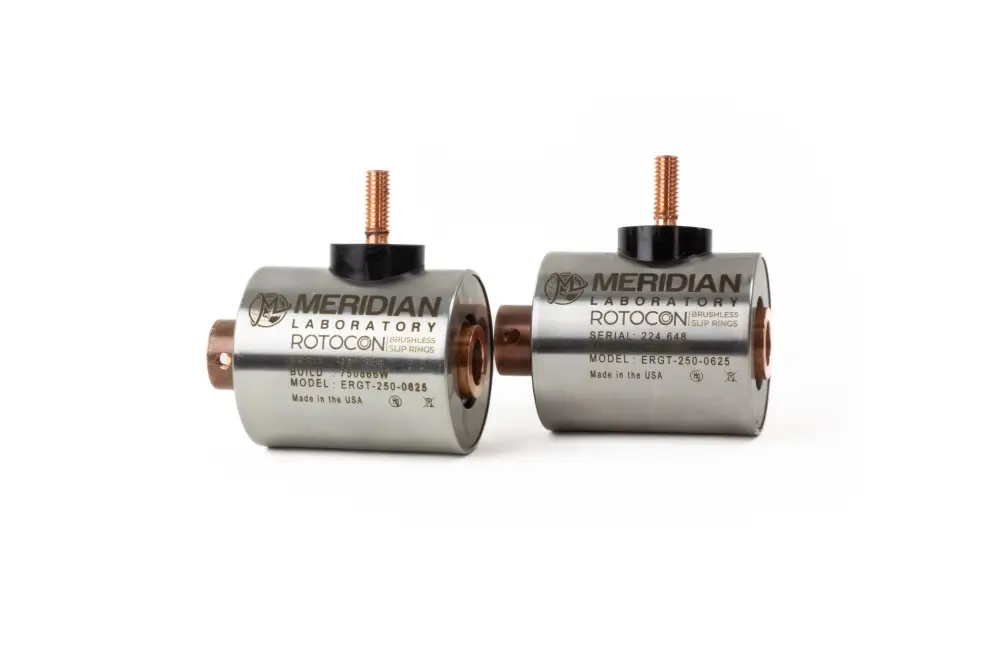

Maintenance-Free, Through-Hole Rotary Grounds

Provides stable and consistent current delivery
Does not require grease, adjustment, or maintenance
Unaffected by rotation or total number of revolutions

Meridian Laboratory’s series of through-hole / through-bore rotary grounds are designed with a hole in the center to mount over or onto a shaft, or allow media to pass through the center. They provide a low resistance rotating ground path for electrical current. ROTOCON though-hole rotary grounds provide stable and consistent current delivery with no changes or fluctuation in amperage over time regardless of orientation, total revolutions, or instantaneous speed.

ROTOCON through-hole rotary grounds are offered with a center hole up to 2.50” (63.5mm) in diameter, allowing for a shaft or media such as welding gas, plating solution, and other fluids/gasses to pass through the center.

ROTOCON through-hole rotary grounds are widely used in rotary welding cells, rotary plating processes, and other high current applications which require a consistent rotary ground connection. While called a rotary ground, they can be used for either the power (positive) or the return (ground) circuit without any change in performance or longevity.

ROTOCON through-hole rotary grounds are offered in a variety of amperage ratings and hole diameters to meet your requirements. Additionally, Meridian Laboratory can design and deliver custom rotary grounds to meet your exact specifications in a cost and time efficient manner.

Advantages

Why Choose ROTOCON Through-Hole Rotary Grounds?

CONSISTENT CURRENT Maintenance Free ROTARY UNION DURABLE CONSTRUCTION

CONSISTENT CURRENT PROVIDES BETTER RESULTS

ROTOCON through-hole rotary grounds provide a low-resistance connection between stationary and rotating elements of an application. Their innovative design eliminates conduction through metal-on-metal contact and ensures current delivery does not fluctuate over time or during rotation. This guarantees better process consistency for high current applications.

No metal-on-metal contact
< 0.03 milliohm resistance, stationary or rotating
Dependable current delivery while stationary, indexing, and rotating
Reduced defect rate from stable current without fluctuation
110 grade copper ensures optimal electrical contact for maximum performance

Discover More

MAINTENANCE FREE THROUGH-HOLE ROTARY GROUNDS

ROTOCON through-hole rotary grounds do not require maintenance of any kind. When used properly, they can provide unparalleled longevity and reliability, regardless of orientation and duty cycle. They provide a fast return on investment from the savings gained in eliminating downtime due to maintenance, the replacement of existing conventional rotary grounds, and reduced scrapped product due to manufacturing inconsistencies.

Do not require grease, adjustment, cleaning, or brush replacement
Frequently surpass 500 million total revolutions
Maximizes ROI from reduced downtime, scrap, and replacement rotary ground savings

Discover More

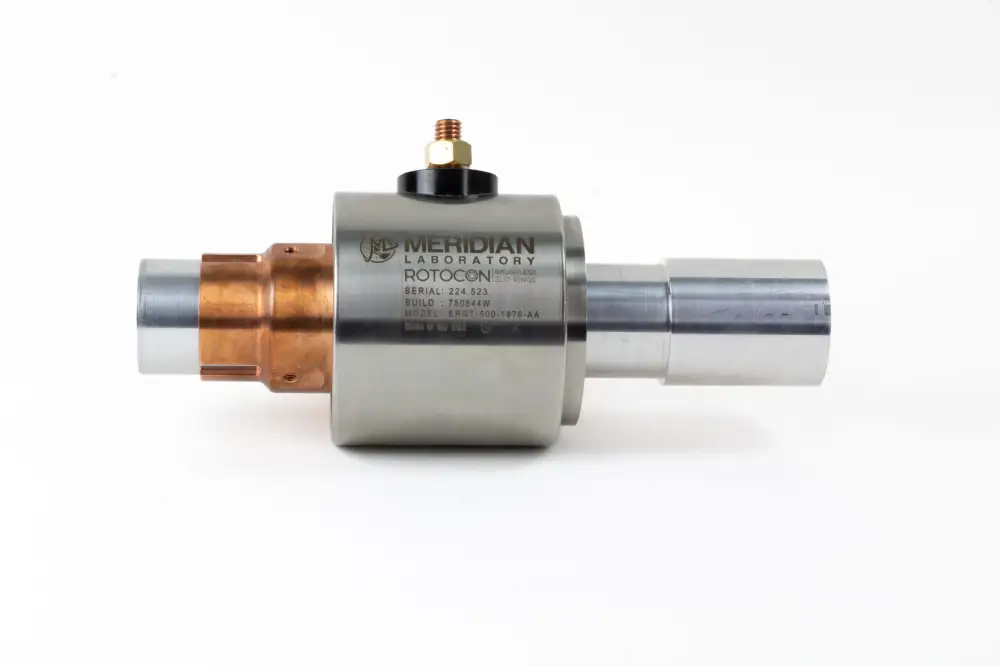

ROTARY UNION + ROTARY GROUND IN ONE ASSEMBLY

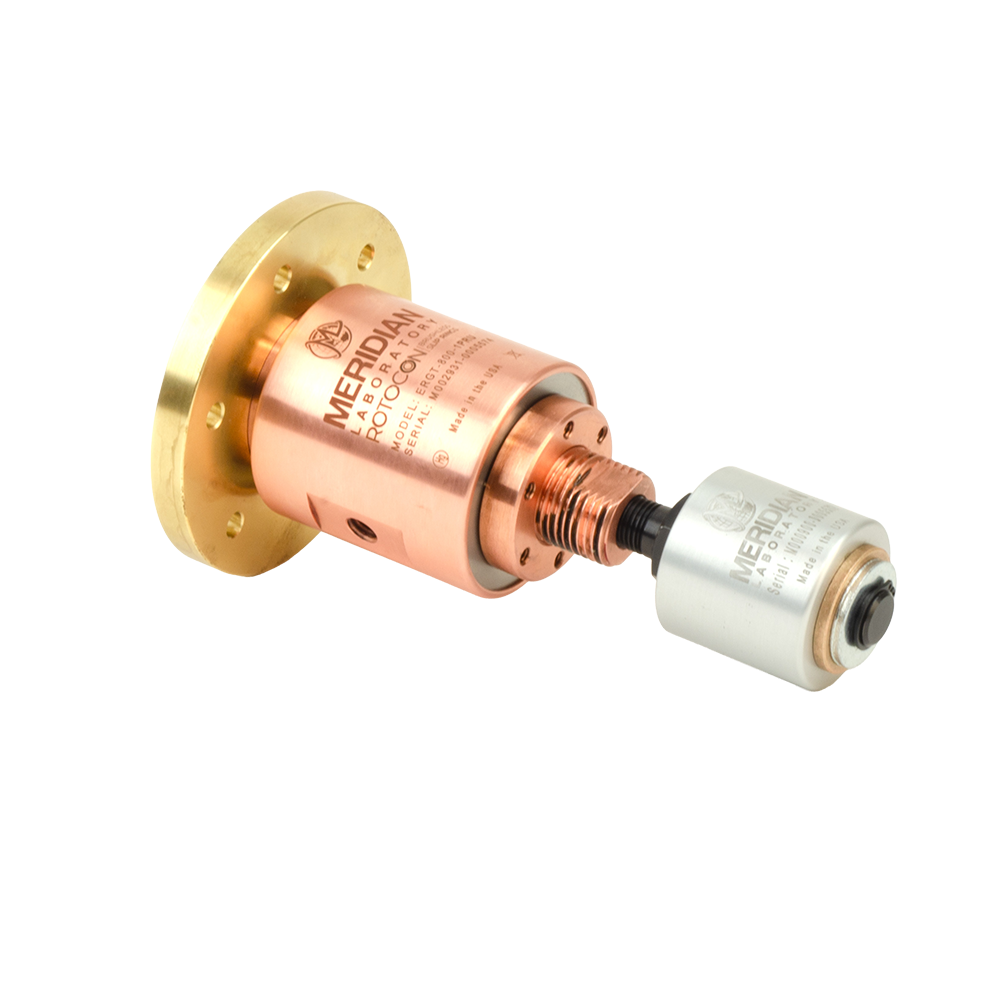

Meridian Laboratory offers standalone solutions that allow for a high current ground circuit and gas or media to rotate together. This is commonly used for shielding gasses in rotary welding applications and plating solutions for electroplating processes. ROTOCON through-hole rotary grounds with rotary unions are available in off-the-shelf configurations to meet your exact needs.

Added capability of shielding gasses or media combined with electrical rotary ground in single assembly
Single source provider simplifies process of design and procurement

Discover More

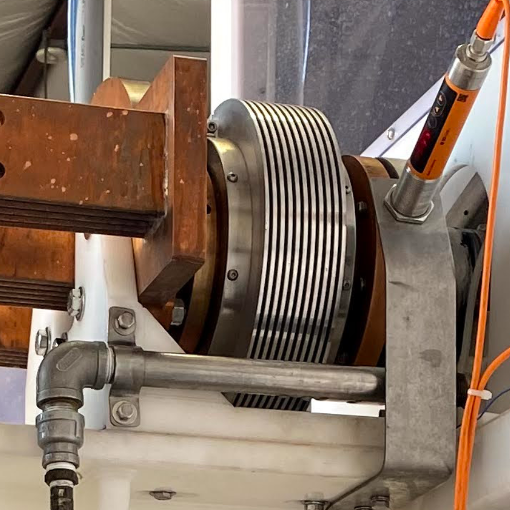

ROTARY GROUNDS DESIGNED FOR MANUFACTURING AND HARSH ENVIRONMENTS

ROTOCON through-hole rotary grounds are designed to be used in demanding industrial and manufacturing applications. They are made from durable materials that withstand the welding, plating, and cutting environments they are used within. This makes ROTOCON through-hole rotary grounds the ideal choice for semi or fully automated processes that demand long term consistency and reliability.

Rotocon through-hole rotary grounds feature corrosion resistant 304 ss and high conductivity 110 copper
Through-hole rotary grounds are environmentally sealed**for exact ingress protection ratings, see product specific pages

Discover More

General Specifications

ERGT Series Rotary Ground Specifications

MOUNTING

p

Through-Hole or Flange

For more information on mounting, check out our Installation and Mounting information.

BORE DIAMETER

p

Up to 2.5”⌀ (63.5mm) Standard

TEMPERATURE

p

-4°F to 160°F

(-20°C to 70°C)

Configurations

ERGT Series Standard Models

Name	Amperage	Minimum Hole Diameter	Maximum Hole Diameter	Terminal Count	Max Operating Speed	Part Downloads	2D Download Action Type	File Datasheet	Model Download (3D STP)
ERGT-2000-XXXX	2000A	0.250"	2.50"	4	150		Standard Models	MERIDIAN-LABORATORY-ROTOCON-ERGT-2000-XXXX.pdf	Yes
ERGT-3000-XXXX	3000A	1.00"	1.00"	6	150		Standard Models	MERIDIAN-LABORATORY-ROTOCON-ERGT-3000-XXXX.pdf	Yes
ERGT-1500-XXXX	1500A	0.250"	2.50"	3	150		Standard Models	MERIDIAN-LABORATORY-ROTOCON-ERGT-1500-XXXX.pdf	Yes
ERGT-2000-XXXX	2000A	0.250"	2.00"	4	200		Standard Models	MERIDIAN-LABORATORY-ROTOCON-ERGT-2000-XXXX.pdf	Yes
ERGT-1000-XXXX	1000A	0.250"	2.50"	2	150		Standard Models	MERIDIAN-LABORATORY-ROTOCON-ERGT-1000-XXXX.pdf	Yes
ERGT-1500-XXXX	1500A	0.250"	2.00"	3	200		Standard Models	MERIDIAN-LABORATORY-ROTOCON-ERGT-1500-XXXX.pdf	Yes
ERGT-1000-1750	1000A	1.75"	1.75"	2	200		Standard Models	MERIDIAN-LABORATORY-ROTOCON-ERGT-1000-1750.pdf	Yes
ERGT-500-XXXX	500A	0.250"	2.50"	1	150		Standard Models	MERIDIAN-LABORATORY-ROTOCON-ERGT-500-XXXX.pdf	Yes
ERGT-1000-XXXX	1000A	0.250"	2.00"	2	200		Standard Models	MERIDIAN-LABORATORY-ROTOCON-ERGT-1000-XXXX.pdf	Yes
ERGT-500-1250	500A	1.25"	1.25"	1	200		Standard Models	MERIDIAN-LABORATORY-ROTOCON-ERGT-500-1250.pdf	Yes
ERGT-500-2000	500A	2.00"	2.00"	1	200		Standard Models	MERIDIAN-LABORATORY-ROTOCON-ERGT-500-2000.pdf	Yes
ERGT-500-XXXX	500A	0.250"	2.00"	1	200		Standard Models	MERIDIAN-LABORATORY-ROTOCON-ERGT-500-XXXX.pdf	Yes
Custom Through-Hole Rotary Grounds	Up to 3000A		Up to 3.00" Diameter			Contact Us
ERGT-500-1000	500A	1.00"	1.00"	1	200		Standard Models	MERIDIAN-LABORATORY-ROTOCON-ERGT-500-1000.pdf	Yes
