ROTOCON MXO Series

Water & Dust Proof Slip Rings for Harsh Environments

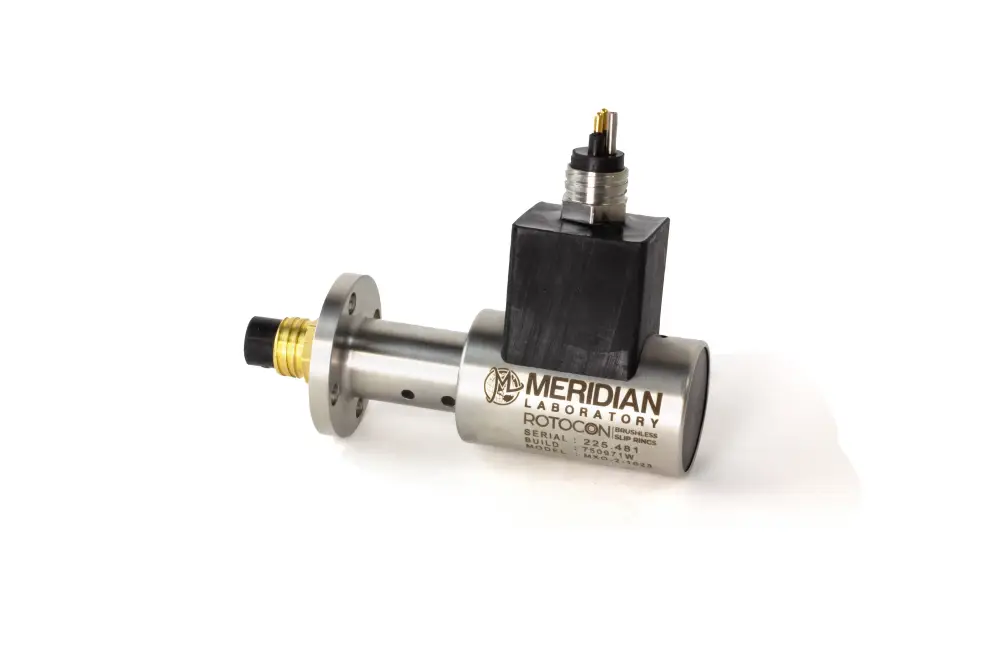

MXO-2-1023 MXO Series ROTOCON Part Up Close

MXO-4-RAPP MXO Series ROTOCON Part Up Close

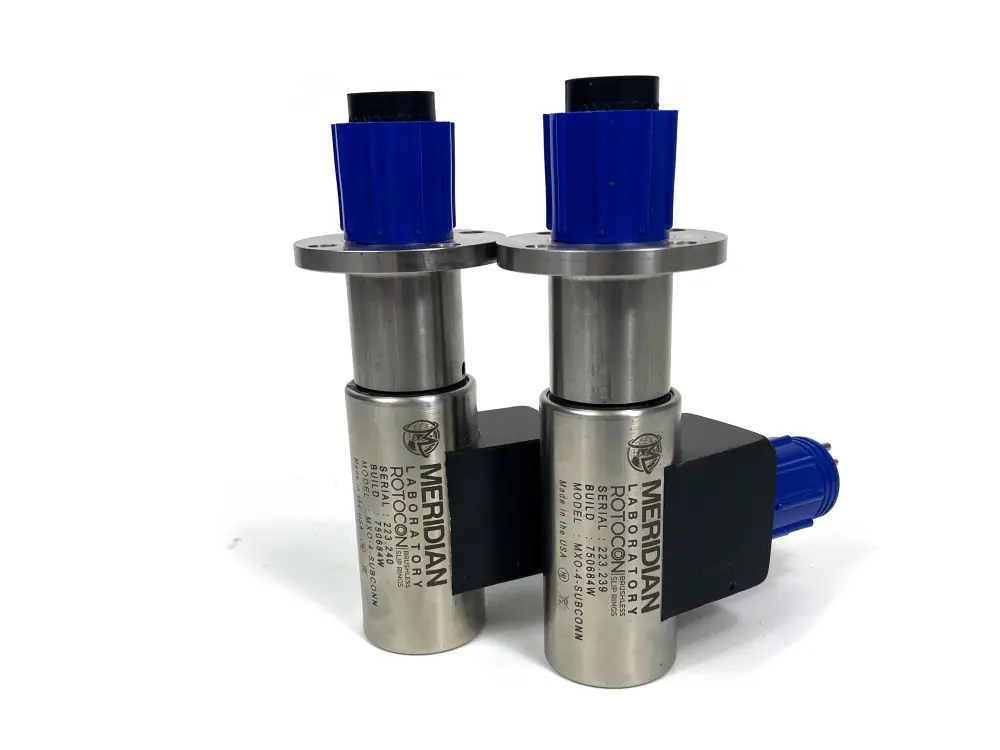

MXO-4-SUBCONN MXO Series ROTOCON Part Up Close

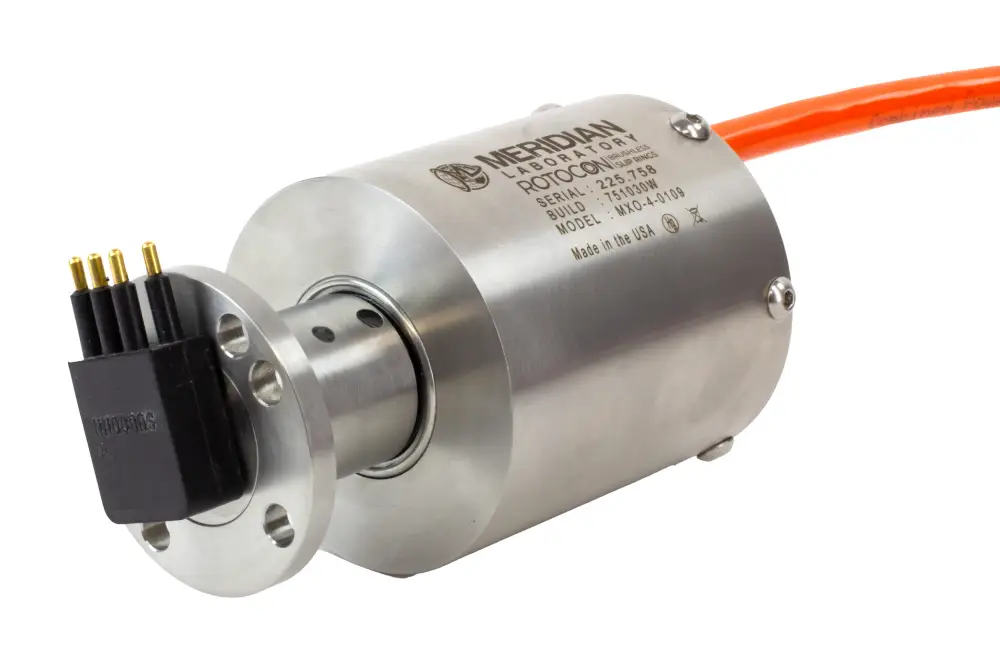

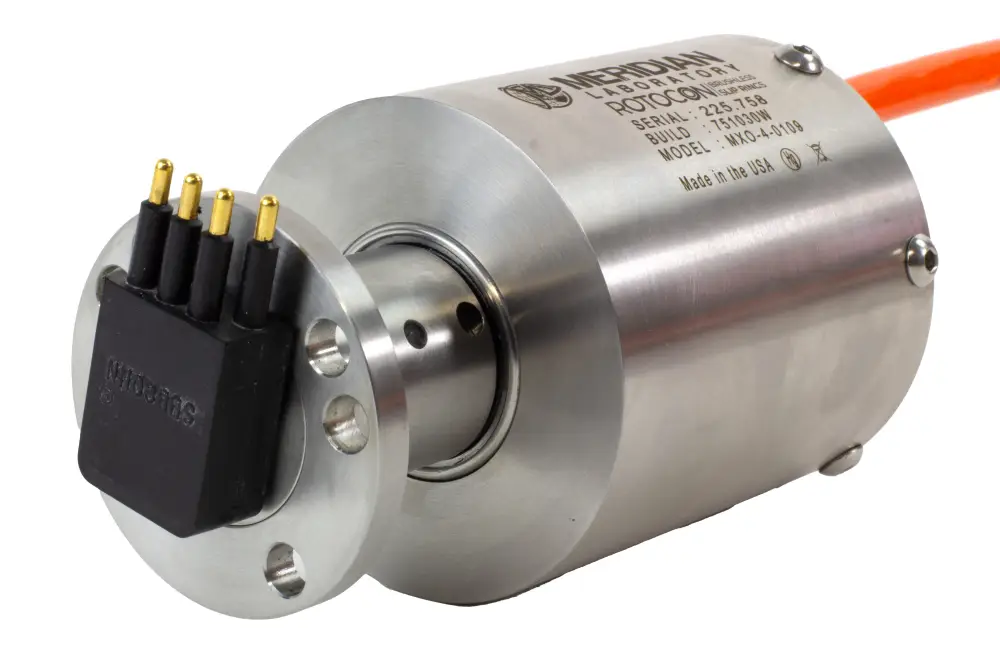

MXO-4-0109 MXO Series ROTOCON Part Up Close

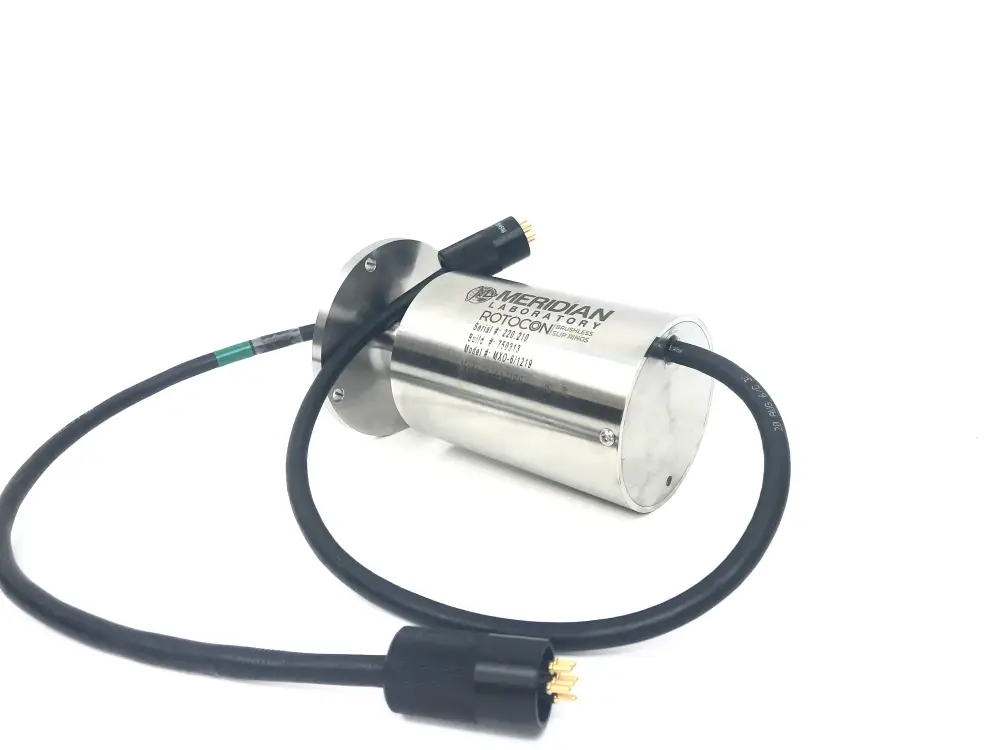

MXO-6:1219 MXO Series ROTOCON Part Up Close

Request A Quote

Overview

ROTOCON IP-Rated Marine Slip Rings for Washdown, Dusty, and Harsh Environments

Available with IP68 sealing capabilities
Maintenance-free ROTOCON brushless slip ring technology
Unaffected by harsh environmental conditions

ROTOCON environmentally sealed slip rings are designed for harsh environments, providing dustproof, waterproof, and maintenance-free operation. Engineered for IP-rated protection up to IP68, our ROTOCON marine slip rings withstand direct and indirect exposure to water, dust, debris, and extreme conditions, making them ideal for oceanographic, underwater, subsea, and washdown applications.

ROTOCON harsh environment slip rings excel in marine, offshore, and industrial applications, offering lasting performance without the need for maintenance. They are widely used in bottling and liquid filling equipment, marine cable reels, oceanographic winches, oil well machinery, subsea research vessels, grain handling equipment, and other washdown environments.

Unlike traditional brushed slip rings, which suffer from brush wear, oxidation, and arcing, ROTOCON IP68 slip rings feature a sealed, brushless design that ensures reliable power and signal transmission in wet, humid, and dirty environments.

For marine, oceanographic, and industrial applications requiring a sealed, waterproof, and dustproof rotating connection, ROTOCON brushless slip rings provide unmatched durability, reliability, and long-term performance.

For operating environments which require IP66 sealing or less, see our full line of MX Series Multi-Channel Slip Rings.

Advantages

Why choose ROTOCON Environmentally Sealed Slip Rings?

ENVIRONMENTALLY SEALED BRUSHLESS TECHNOLOGY MAINTENANCE FREE LOSSLESS SIGNALS EASILY CONFIGURABLE RELIABLE ETHERNET

ENVIRONMENTALLY SEALED SLIP RINGS DELIVER SAFE AND LONG LASTING OPERATION

ROTOCON waterproof and dustproof slip rings are environmentally sealed to provide a superior rotating electrical connection. They are sealed from the outside environment and remain unaffected by dust and liquids, as well as humidity and other environmental factors that conventional, brushed slip rings are challenged by. They are internally arc-free, making them the ideal choice for wet, dust-filled, clean rooms and other challenging operating environments.

ENVIRONMENTALLY SEALED DESIGN
UNAFFECTED BY LIQUIDS, DUST, AND OTHER FACTORS
ROBUST DESIGN FOR HARSH ENVIRONMENTS

Discover More

BRUSHLESS SLIP RING TECHNOLOGY PROVIDES SUPERIOR PERFORMANCE

ROTOCON dustproof and waterproof slip rings are brushless by design, functioning through a molecularly bonded, liquid metal film contact to transfer electrical power and signal. ROTOCON brushless slip ring technology introduces near-zero electrical resistance while stationary, or during rotation – regardless of rotational speed, or total number of revolutions.

NEAR-ZERO ELECTRICAL NOISE, STATIONARY OR ROTATING
HIGH SPEED CAPABLE WITHOUT FLUCTUATION IN ELECTRICAL RESISTANCE
NO INTERNAL WEAR PARTS

Discover More

ENCLOSED SLIP RINGS WITHOUT MAINTENANCE

Conventional, brushed slip rings rely on metal-on-metal contact to transfer power between stationary and rotating components. ROTOCON IP-rated, harsh-environment slip rings do not have any internal wear parts, and therefore do not require any maintenance, adjustment, or replacement of parts during the lifetime of their use.

NO METAL-ON-METAL CONTACT
100% MAINTENANCE-FREE
OUTLAST TRADITIONAL, BRUSHED SLIP RINGS
ROUTINELY SURPASS 500M+ TOTAL REVOLUTIONS

Discover More

PERFECT SLIP RING SIGNAL INTEGRITY, STATIONARY OR ROTATING

ROTOCON environmentally sealed slip rings are unique in their ability to provide excellent analog signal transmission, without fluctuation or noise – whether stationary or while rotating. They are the ideal choice for sensitive electrical signals such as encoders, thermocouples, strain gauges, and more.

PERFECT SIGNAL INTEGRITY – REGARDLESS OF SPEED
NEAR-ZERO ELECTRICAL NOISE
EXCELLENT FOR ANALOG SIGNAL TRANSMISSION

am

Discover More

CONFIGURABLE SLIP RINGS TO MEET YOUR EXACT NEEDS, QUICK AND COST EFFECTIVELY

ROTOCON maintenance-free, sealed slip rings are modular by design and are able to be configured in quick and cost efficient ways to meet your exact needs. A variety of mechanical mounting and electrical termination options are offered to make for the most optimized slip ring for your unique application. Meridian Laboratory also offers additional rotating accessories such as fiber optic rotary joints, rotary unions, encoders, and more to integrate with ROTOCON harsh environment slip rings.

MODULAR DESIGN ALLOWS FOR SIMPLE AND FAST CUSTOMIZATIONS
WIDE VARIETY OF MECHANICAL AND ELECTRICAL OPTIONS
INTEGRATABLE WITH FIBER OPTIC ROTARY JOINTS, ROTARY UNIONS, ENCODERS, AND MORE

am

Discover More

RELIABLE, HIGH-SPEED ETHERNET SLIP RING PERFORMANCE

ROTOCON harsh environment slip rings and rotating electrical connectors transmit high-speed Ethernet based communication up to 1000 Mbps (1 Gbps) reliably and without bit errors, packet loss, or crosstalk. They are also capable of many other communication protocols including Etherlink, Profinet, EtherNet/IP, Profibus, Modbus TCP/IP, Powerlink, CC-Link IE, SERCOS III, SynqNet, MECHATROLINK-III, ControlNet, RS485, RS432, RS422, EtherCAT, and more.

GUARANTEED ETHERNET TRANSMISSION WITHOUT BIT ERRORS OR CROSSTALK
HIGH SPEED CAPABLE UP TO 1 Gbps
COMPATIBLE WITH MANY OTHER DIGITAL COMMUNICATION PROTOCOLS

Discover More

General Specifications

Environmentally Sealed Slip Ring Specifications

IP Rating

p

Up to IP68

MOUNTING

p

End-of-Shaft

TEMPERATURE

p

-35˚F to 160˚F

RPM

p

Up to 1000 RPM

Configurations

Dustproof & Waterproof Slip Rings

Name	Channels	Amperage	Voltage	Data Speed	Ingress Protection Rating (IP)	Mounting	Shaft Termination	Body Termination	2D Download Action Type	File Datasheet	Model Download (3D STP)	Photos
Custom Harsh Environment ROTOCON Slip Rings	Up to 50 Channels	Up to 35A per Channel	Up to 3,000V	Available up to 1000 Mbps (1 Gbps) Speed	Up to IP68	Available with all types of thermocouple wire					Yes

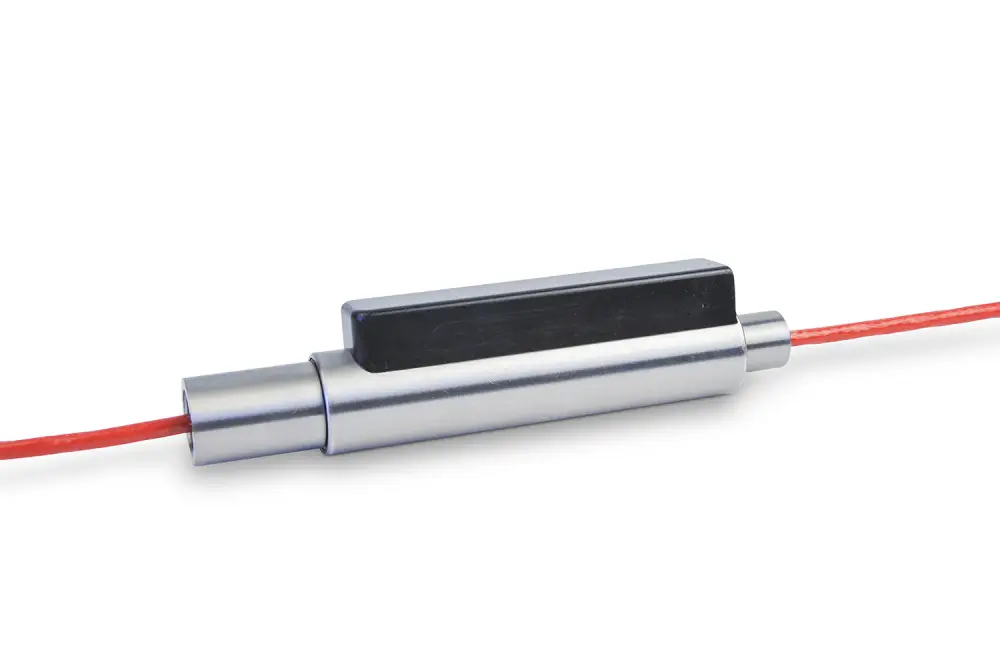

MXO-17-9A	17	10A	1,000V		IP67	Flange	Flying Leads	Flying Leads	Odoo Custom Model	MERIDIAN-LABORATORY-ROTOCON-MXO-17-9A.pdf	Yes
MXO-16-10A	16	10A	600V		IP67	Flange	Flying Leads	Flying Leads	Odoo Custom Model		Yes
MXO-14-15A	14	18A	1,000V	1 Gbps	IP67	End of Shaft	Flying Leads	Flying Leads	Odoo Custom Model	MERIDIAN-LABORATORY-ROTOCON-MXO-14-15A.pdf	Yes
MXOF-12-1112	12	7A	600V		IP67	Flange	Connector	Connector	Custom Model		Yes

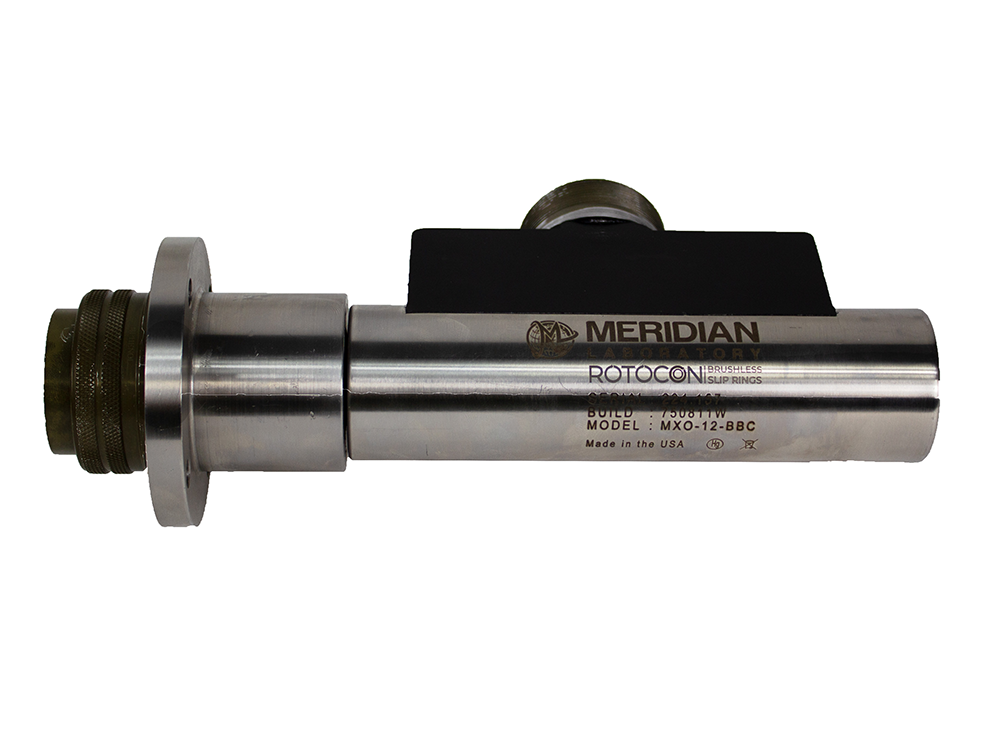

MXO-12-BBC	12	10A	600V		IP67	Flange	Connector	Connector	Odoo Custom Model	MERIDIAN-LABORATORY-ROTOCON-MXO-12-BBC.pdf	Yes	MXO-12-BBC.jpg
MXO-12-11A	12	10A	600V	100 Mbps	IP68	End of Shaft	Flying Leads	Flying Leads	Custom Model		Yes
MXO-12-0211	12	5A	600V		IP68	Flange	Connector	Connector	Custom Model		Yes
MXO-9-20A	9	10A	300V	100 Mbps	IP67	Flange	Flying Leads	Flying Leads	Custom Model		Yes

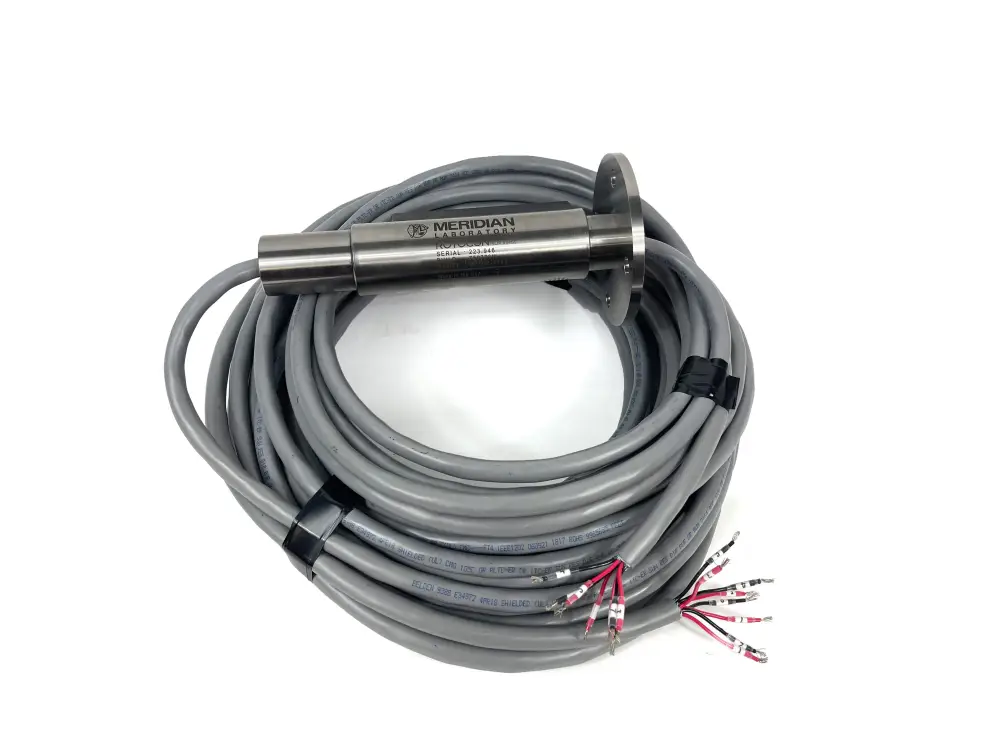

MXO-8-9388	8	3.5A	300V		IP67	End of Shaft	Flying Leads	Flying Leads	Odoo Custom Model	MERIDIAN-LABORATORY-ROTOCON-MXO-8-9388.pdf	Yes	MXO-8-9388.jpg
MXO-8-1025	8	7A	600V	10 Mbps	IP67	Flange	Flying Leads	Flying Leads	Odoo Custom Model	MERIDIAN-LABORATORY-ROTOCON-MXO-8-1025-DNA.pdf	Yes
MXO-8-TGS	8	7A	600V		IP67	Flange	Connector	Connector	Custom Model		Yes

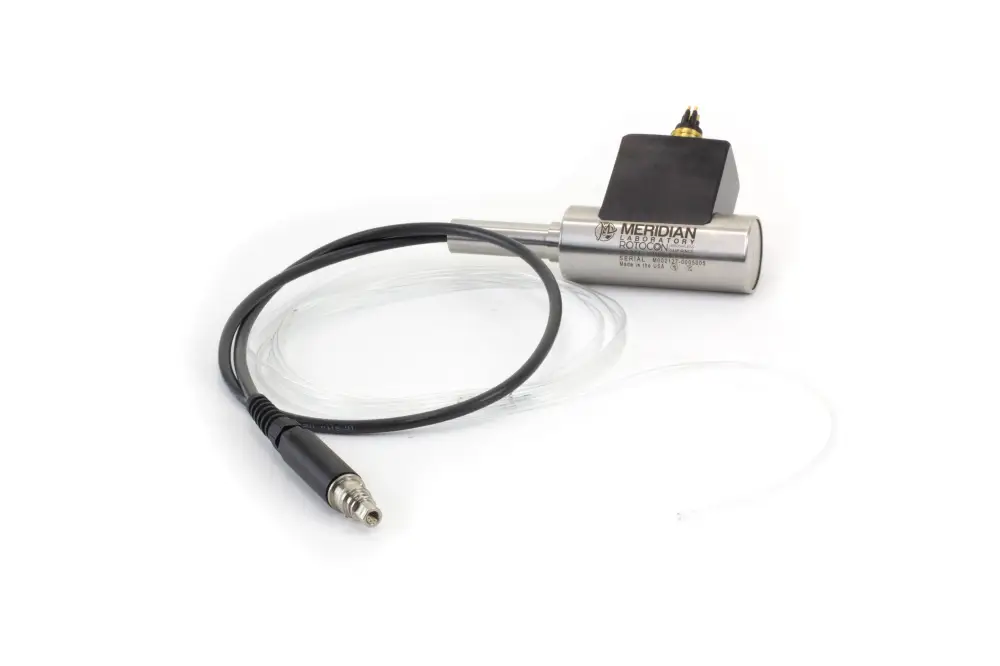

MXO-6-0426	6	2.75A	300V	10 Mbps	IP67	End of Shaft	Connector	Connector	Custom Model		Yes
MXO-6-1219	6	7A	600V		IP68	Flange	Connector	Connector	Custom Model		Yes	MXO-6-1219.jpg
MMO-6-0414	6	2A	480V		IP68	Flange	Flying Leads	Flying Leads	Custom Model		Yes
MXOST-4-0305	4	18A	600V	Fiber Optic	IP67	Flange	Flying Leads	Flying Leads	Odoo Custom Model	MERIDIAN-LABORATORY-ROTOCON-MXOST-4-0305.pdf	Yes	MXOST-4-0305.jpg

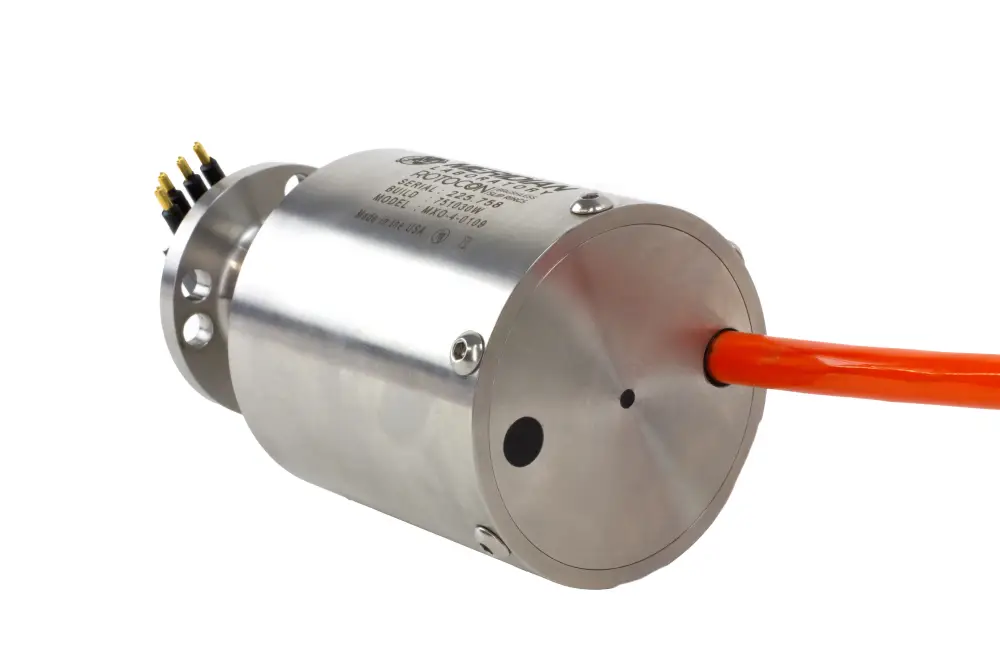

MXO-4-0109	4	10A	600V		IP68	Flange	Connector	Flying Leads	Custom Model		Yes	MXO-4-0109.jpg

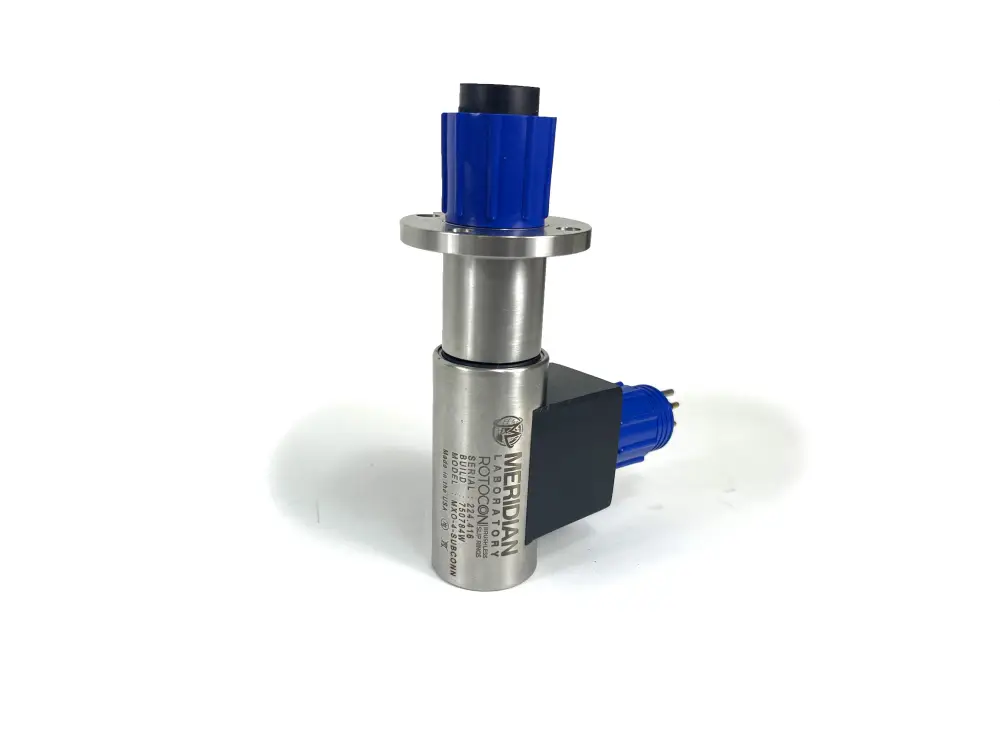

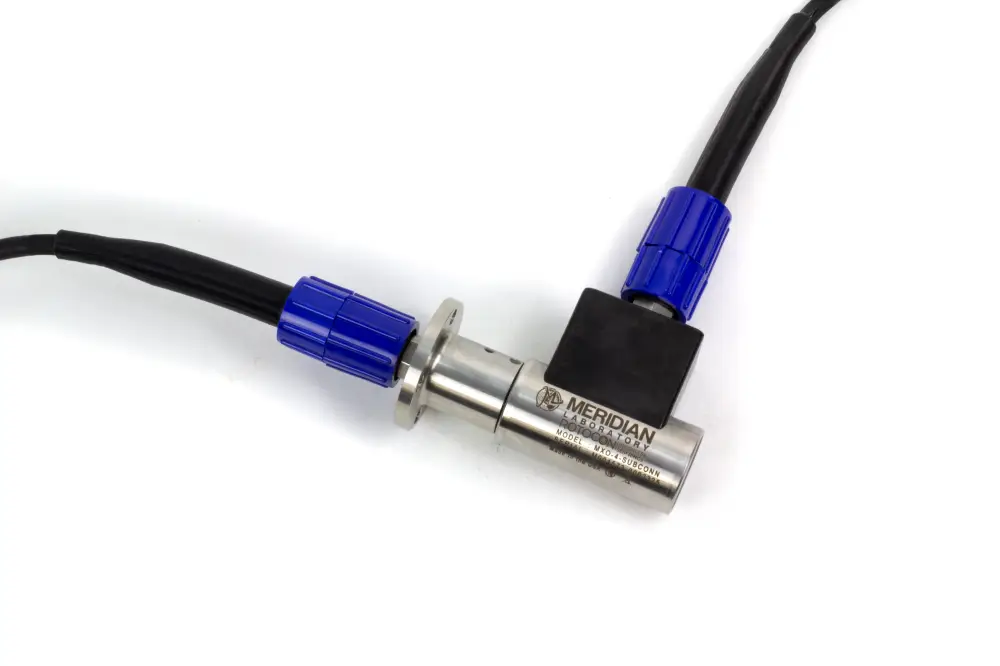

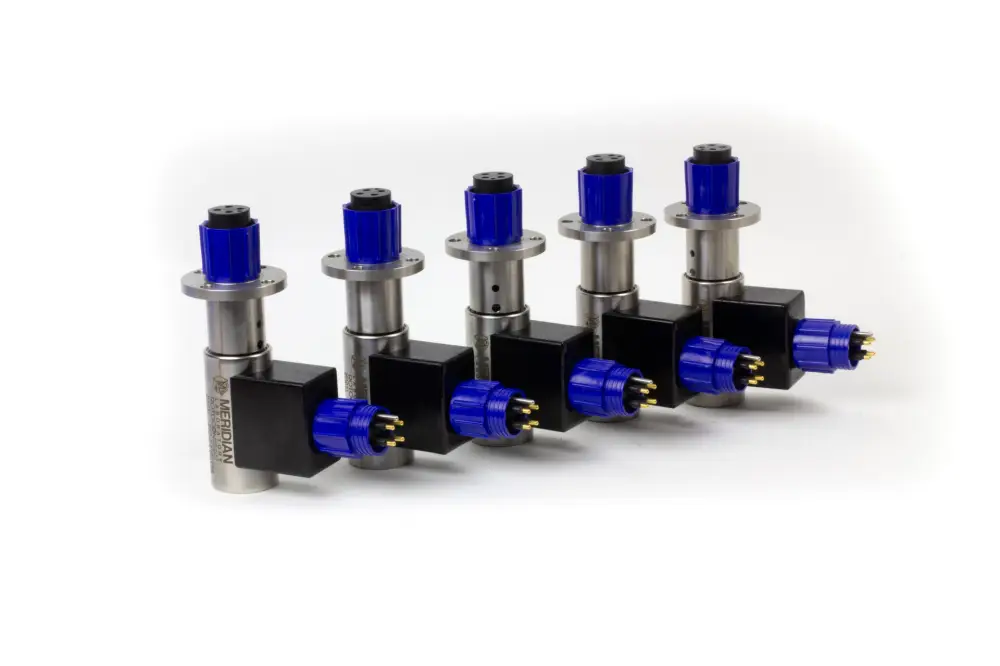

MXO-4-SUBCONN	4	10A	600V		IP67	Flange	Connector	Connector	Standard Model	MERIDIAN-LABORATORY-ROTOCON-MXO-4-SUBCONN.pdf	Yes	MXO-4-SUBCONN.jpg
MXO-2-1023	2	7A	300V		IP67	Flange	Connector	Connector	Custom Model		Yes	MXO-2-1023.jpg
MXO-2-0805	2	10A	300V		IP65	Flange	Connector	Connector	Custom Model		Yes	MXO-2-0805.jpg
MXO-2-0805	2	10A	300V		IP65	Flange	Connector	Connector	Custom Model		Yes	MXO-2-0805.jpg

Filter: Reset

#wtbp-table-33_530826_wrapper table {border-collapse: collapse;} #wtbp-table-33_530826_wrapper td {border-top: 1px solid #ffffff;border-left: 1px solid #a5c2ca;border-right: 1px solid #a5c2ca;} #wtbp-table-33_530826_wrapper tbody tr:first-child td {border-top: none;} #wtbp-table-33_530826_wrapper tbody tr:last-child td {border-bottom: 1px solid #ffffff;} #wtbp-table-33_530826_wrapper .child table {border-collapse: collapse;} .wtbpModalContent {width: 80%;} .wtbpModalContent.wtbpModalContentForVariations {max-width: 600px;}

FAQs

Common Environmentally Sealed Slip Ring Questions

Are ROTOCONs waterproof / dustproof?

All ROTOCONs are environmentally sealed and resist incidental water ingress and high humidity. Most series of ROTOCONs can be customized up to an ingress protection rating of IP66. For heavy washdown, oceanographic, underwater, and other harsh environment applications, the MXO Series offers additional ingress protection up to IP68.

Can a ROTOCON be used underwater?

Almost all ROTOCON brushless slip rings are resistant to water ingress and can be configured to meet an ingress protection rating of IP66. For underwater applications, select models are available with an IP68 rating. For the best water and dust resistance performance, explore our MXO Series. For specific requirements and customized solutions, please contact us to discuss your application needs.

Can a single ROTOCON be used to transmit both power and signal?

Yes, ROTOCON rotary electrical connectors are extremely capable and successful at transmitting both power and signal within the same assembly, minimizing interference or crosstalk.

How often is maintenance required for a ROTOCON?

Never. Once installed, ROTOCON brushless slip rings are engineered for continuous operation throughout their entire lifespan. Their brushless design not only ensures industry-leading signal quality, but also eliminates wear points and common failure modes found in traditional brushed slip rings.

What is the expected lifespan of a ROTOCON?

ROTOCON rotary electrical connectors have been tested and used in excess of 1 billion revolutions. While each application is unique, ROTOCON brushless slip ring technology is designed and proven to outperform and outlast traditional brushed slip rings in most applications and use cases. See our full list of ROTOCON Advantages for more information.

Can a ROTOCON pass Profinet, Ether-CAT, Ethernet, and other industrial communication protocols?

Yes, ROTOCON rotary electrical connectors and slip rings are capable of transferring many signal types and communication protocols, including Etherlink, Profinet, EtherNet/IP, Profibus, Modbus TCP/IP, Powerlink, CC-Link IE, SERCOS III, SynqNet, MECHATROLINK-III, ControlNet, RS485, RS432, RS422, EtherCAT, and more generally speaking – any 1000BASE-T Ethernet-based or similar communication protocols. If you have a specific protocol not listed, please contact us directly to determine if your signal is compatible.

View All Faq’s

Customization

Environmentally Sealed Slip Ring Options

Electrical Mechanical Environmental

The MXO Series of ROTOCON environmentally sealed slip rings can be customized to integrate specialty wire cabling or connectors to match the needs of your application or existing equipment. Additionally, Meridian Laboratory can provide mating connectors and other accessories to make for simple integration.

WIDE VARIETY OF ELECTRICAL TERMINATION OPTIONS AVAILABLE
ABILITY TO INTEGRATE APPLICATION SPECIFIC WIRE AND CABLING FOR HARSH ENVIRONMENTS

Discover More

ROTOCON harsh environment slip rings are offered with standard mounting configurations, but are easily customizable to match the mechanical requirements of your existing equipment.

VARIOUS MECHANICAL MOUNTING OPTIONS AVAILABLE
ABILITY TO INTEGRATE TO HARDWARE AND MOUNTING REQUIREMENTS OF EXISTING EQUIPMENT

Discover More

ROTOCON sealed slip rings can be configured for a wide variety of ingress protection (IP) ratings and environments. Meridian Laboratory can customize the material selection and other parameters to meet the exact needs of your application.

VARIETY OF INGRESS PROTECTION (IP) RATINGS AVAILABLE
CUSTOM MATERIALS AVAILABLE FOR SENSITIVE ENVIRONMENTS

Discover More

APPLICATIONS & USES

Common Uses for Environmentally Sealed Slip Rings

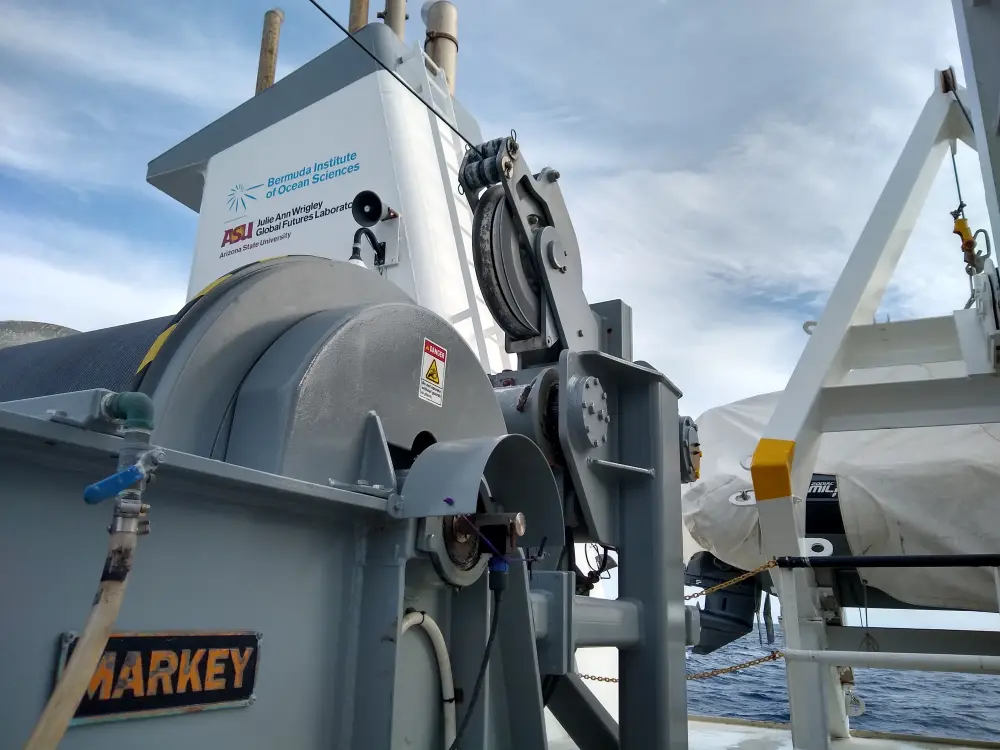

MARINE CABLE REELS & WINCHES

ROTOCON waterproof slip rings are heavily used in the marine industry on deck mounted electric cable reels and winches. Their environmentally sealed design provides unbeatable service life without the challenges of corrosion and wear of metal-on-metal slip rings.

ROTARY FILLING & CAPPING

ROTOCON harsh environment slip rings are commonly found on rotary filling and capping machinery utilized in the food and beverage industry. The environmentally sealed design and unique technology of ROTOCON slip rings allows for 24/7/365 continuous use without downtime.

BULK POWDER MIXERS

ROTOCON MXO Series of sealed rotating electrical connectors are inherently sealed and arc-free, making them ideal for use in dust and powder filled environments without ingress and cleaning intervals or brush replacement over time.
