Overview

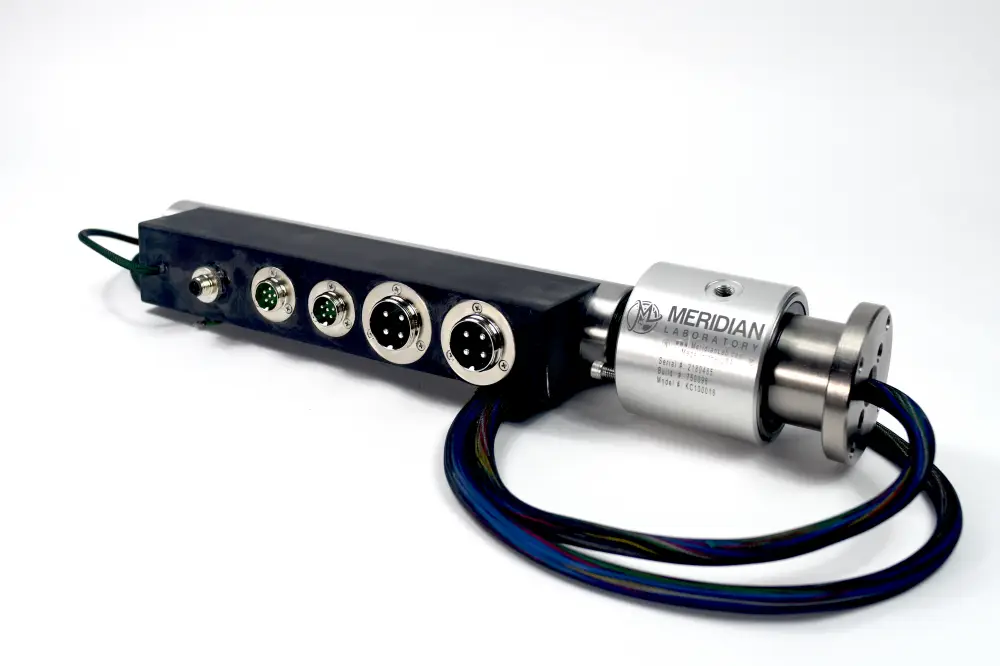

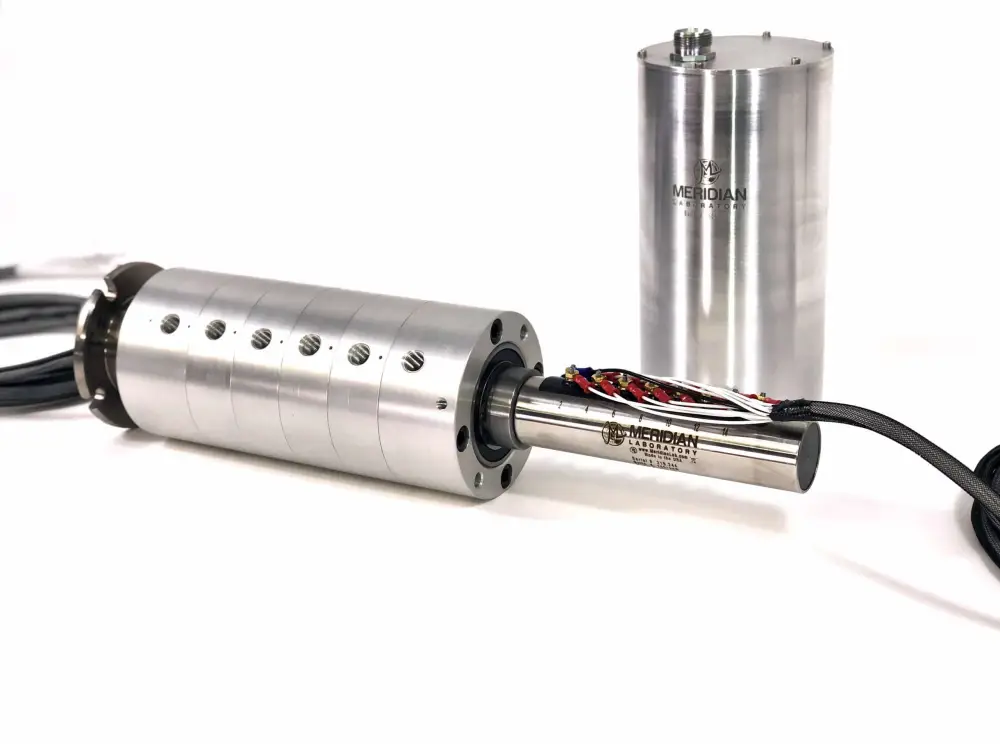

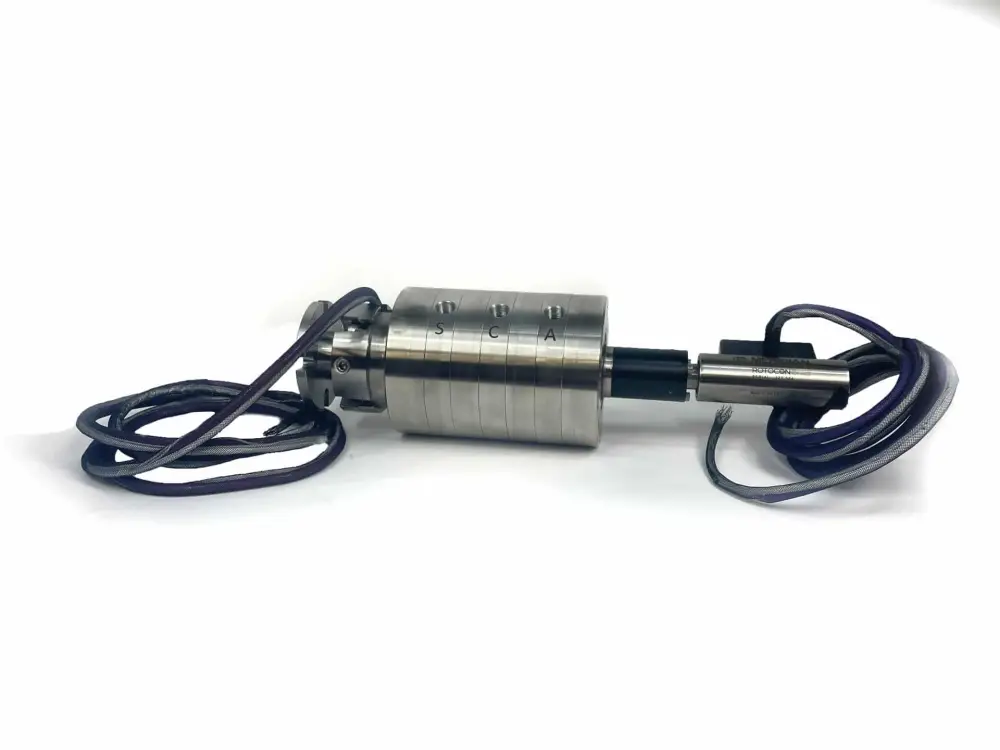

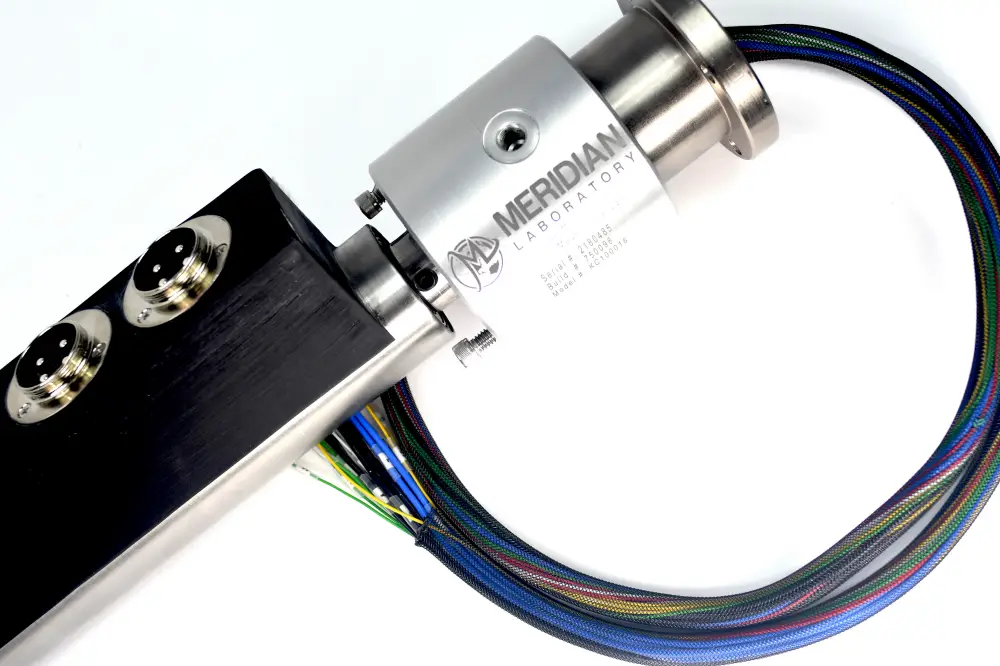

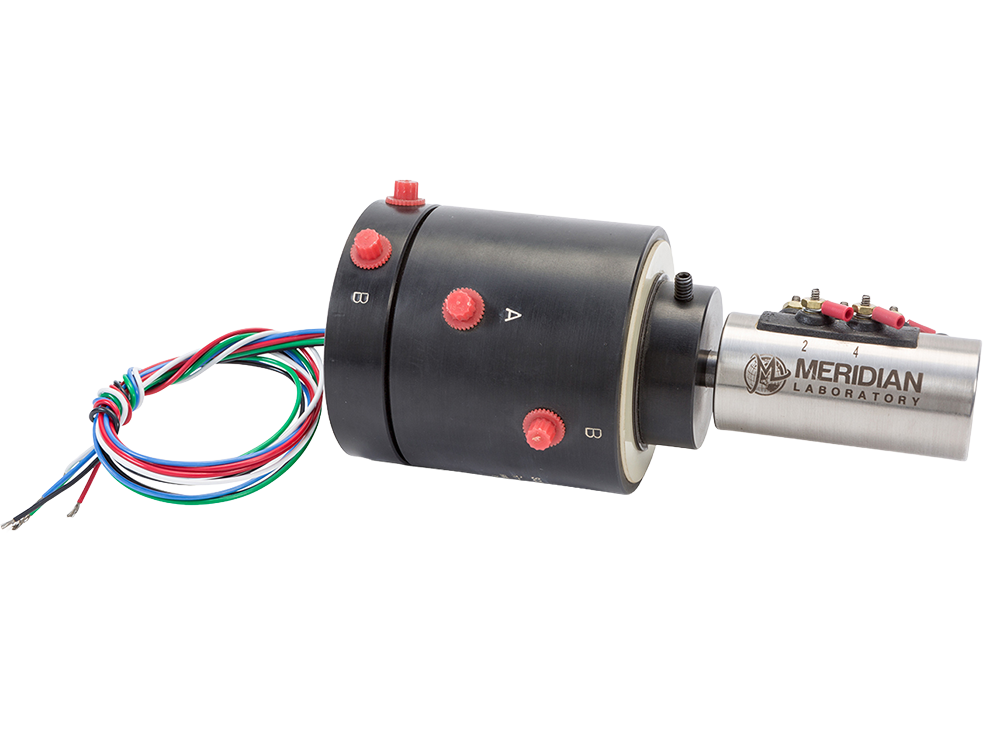

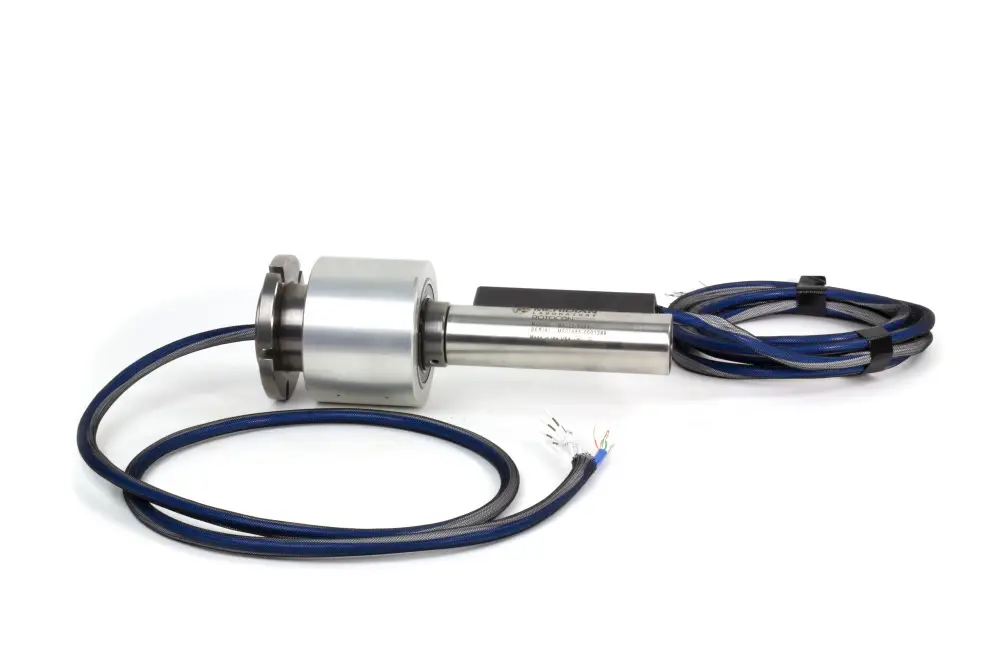

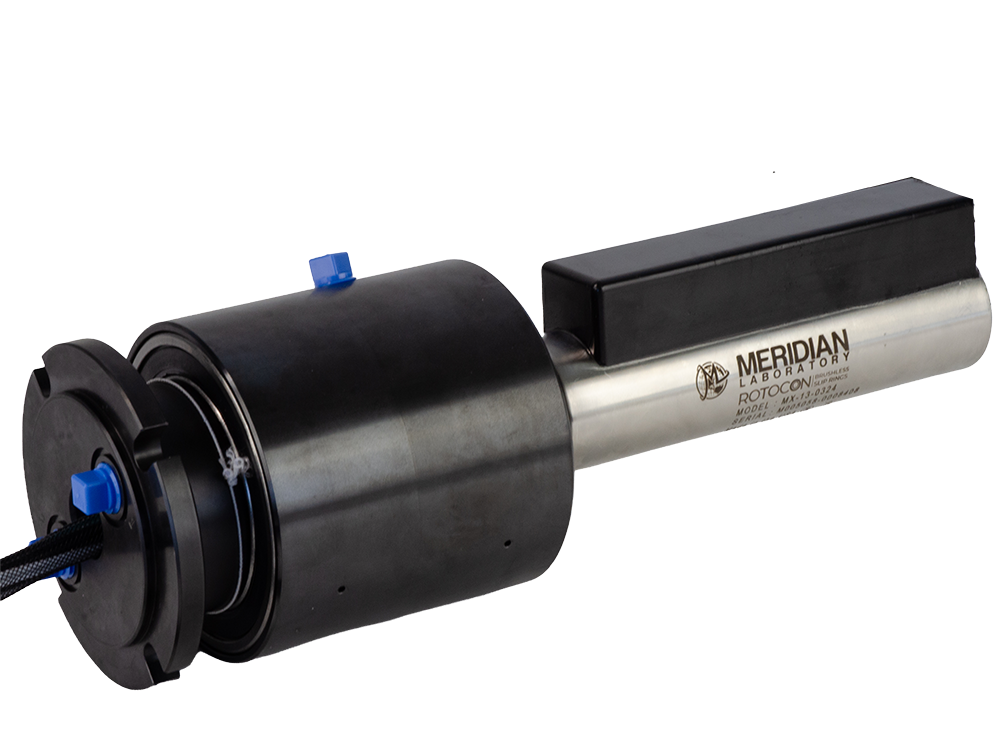

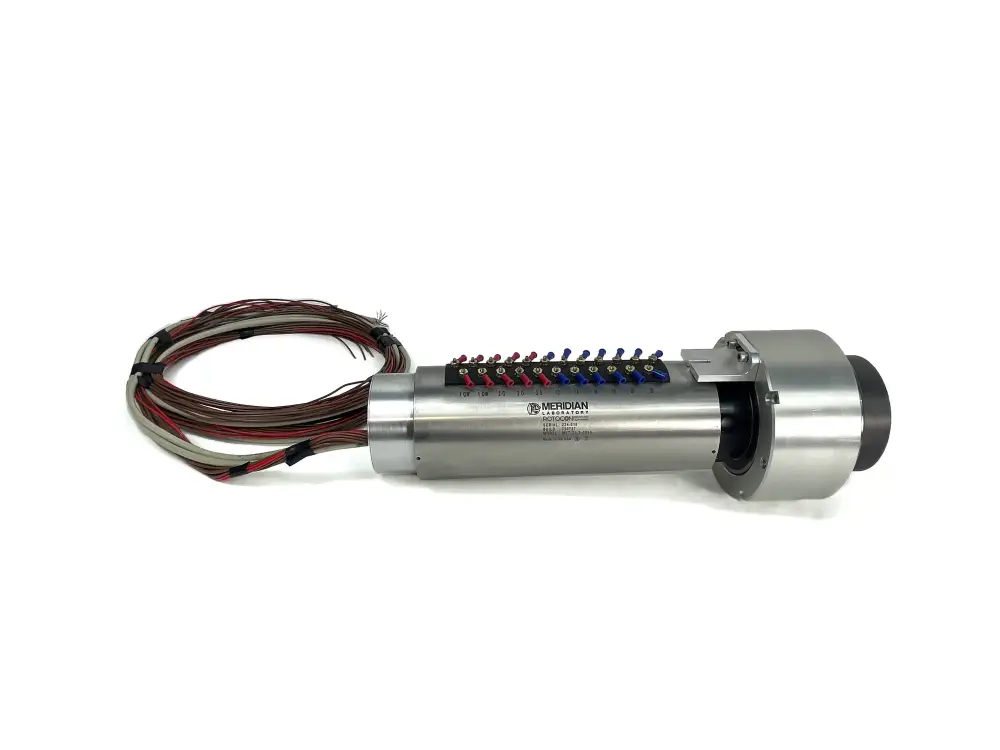

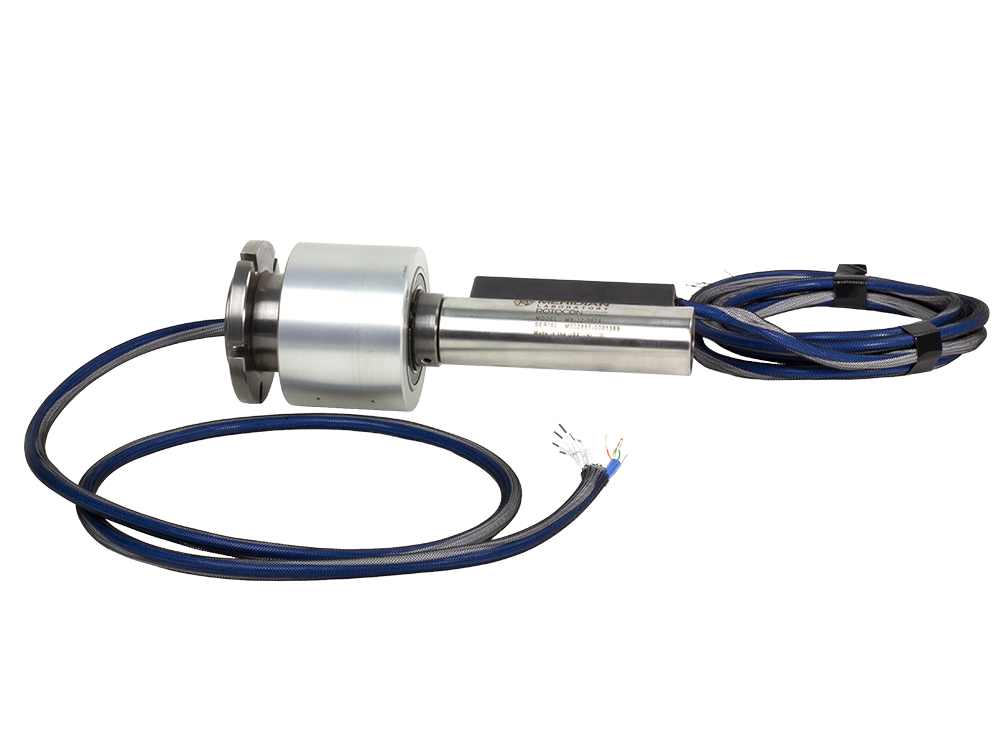

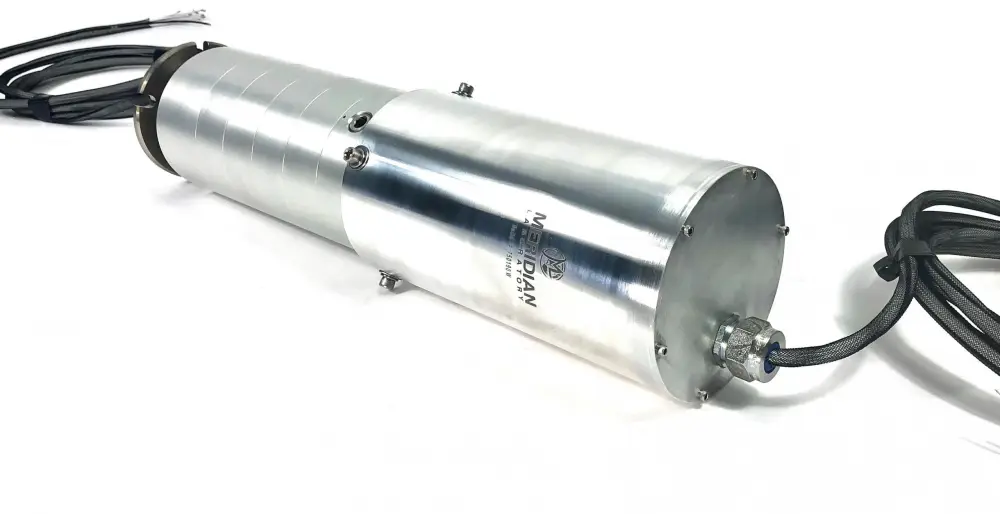

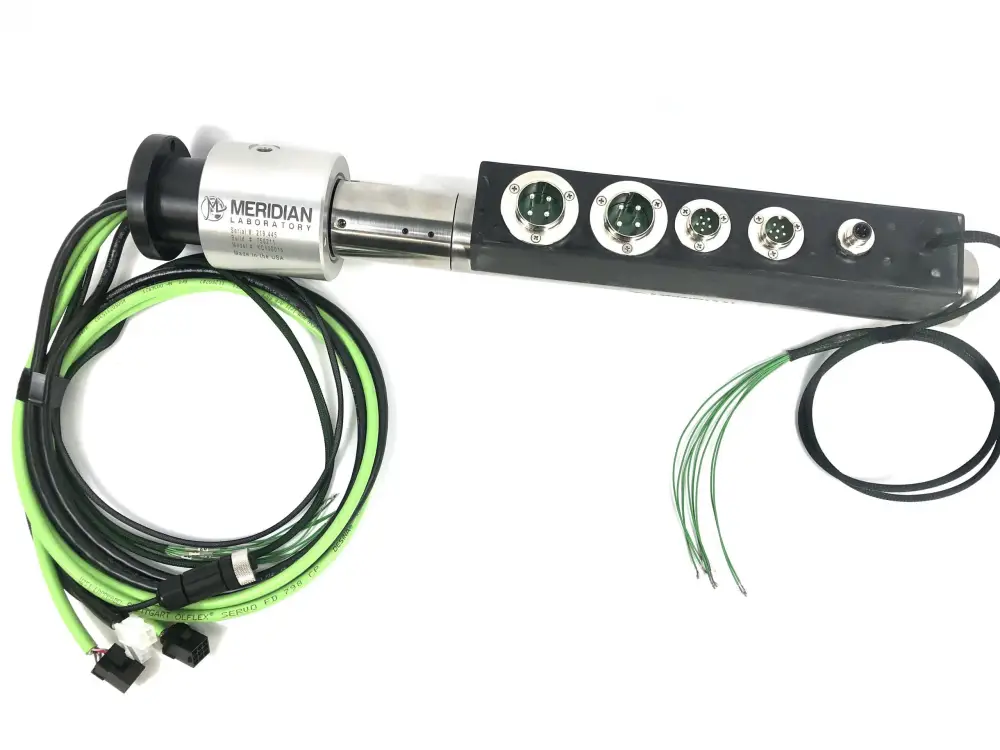

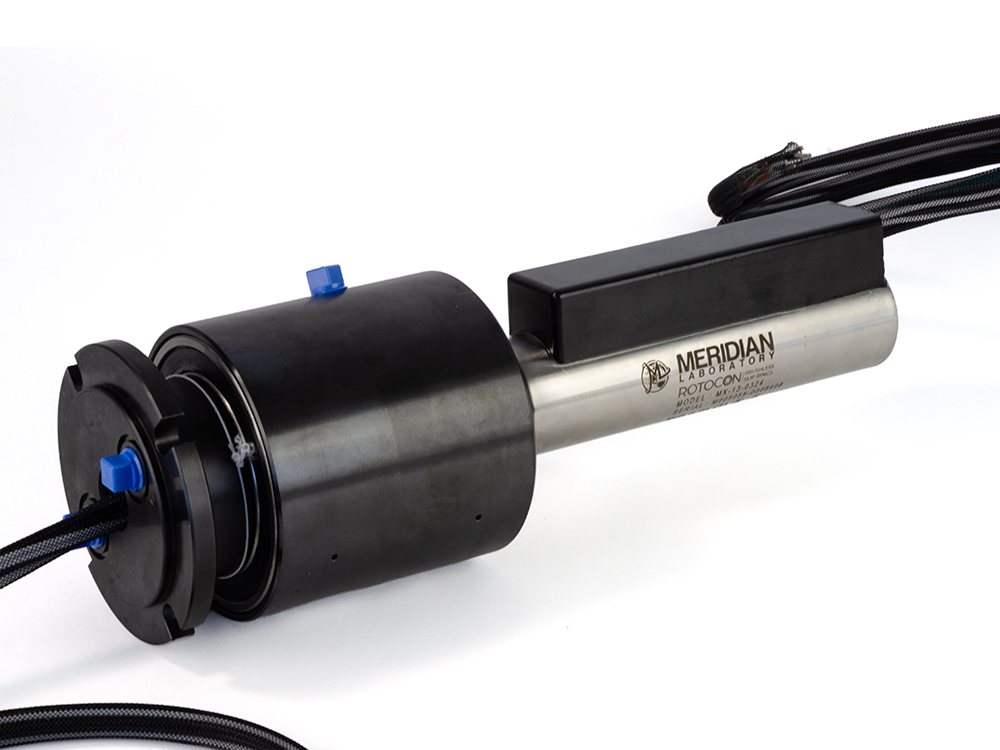

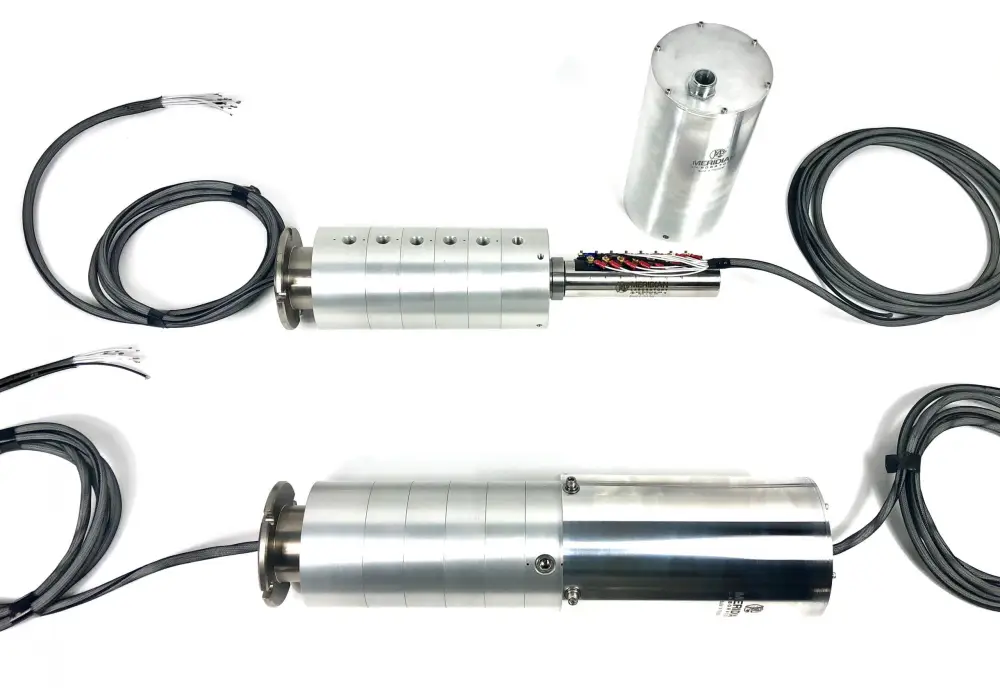

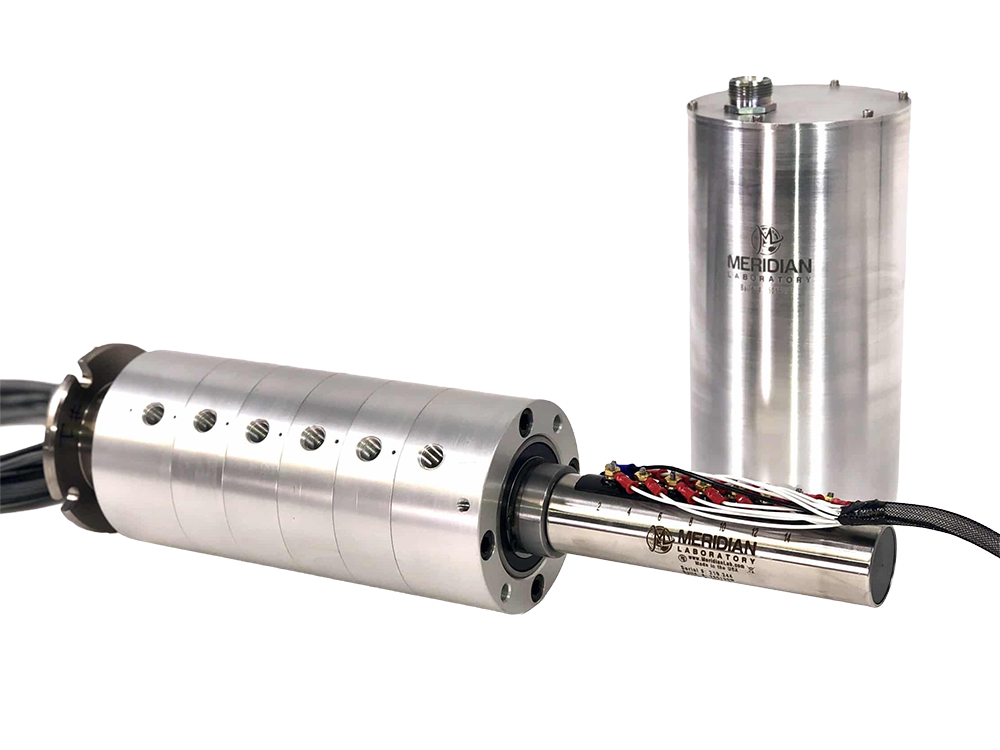

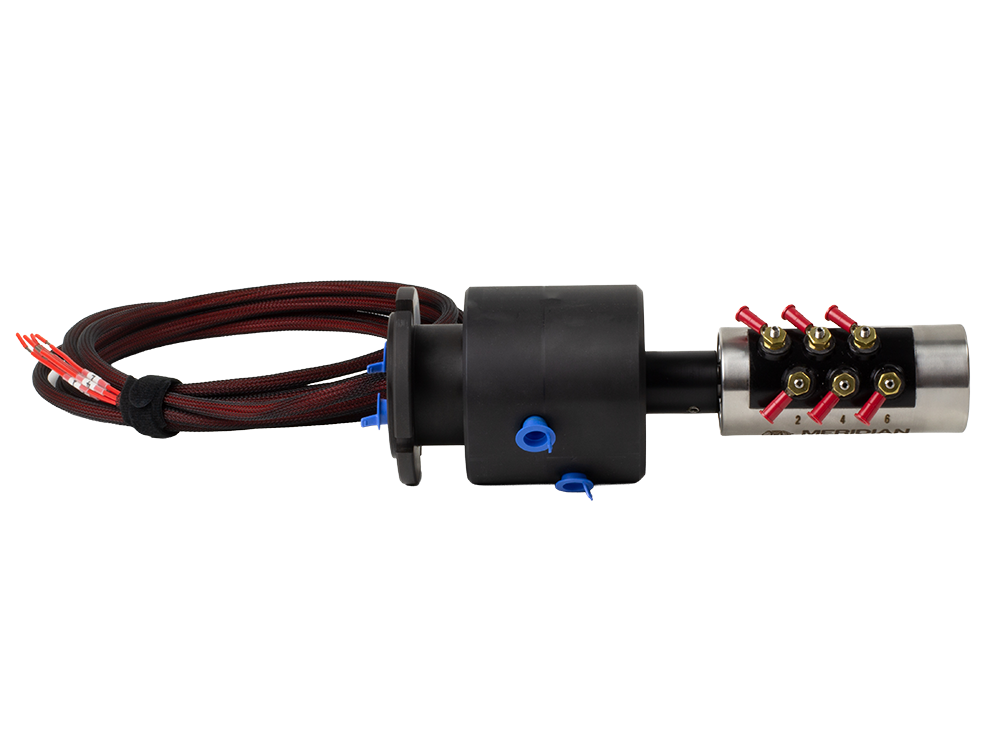

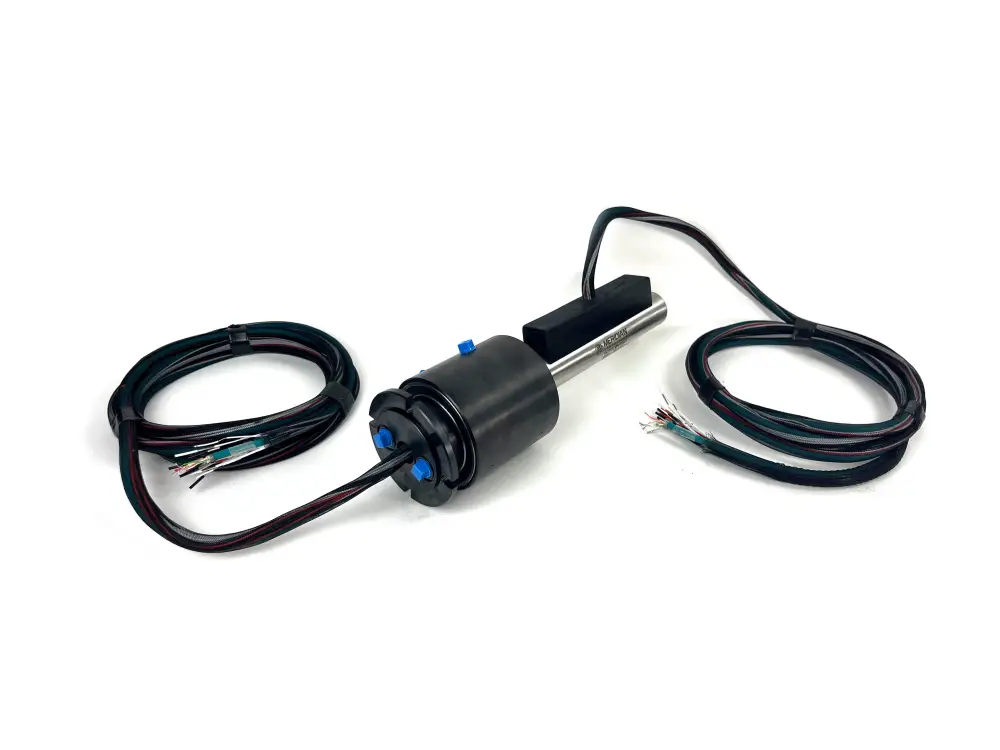

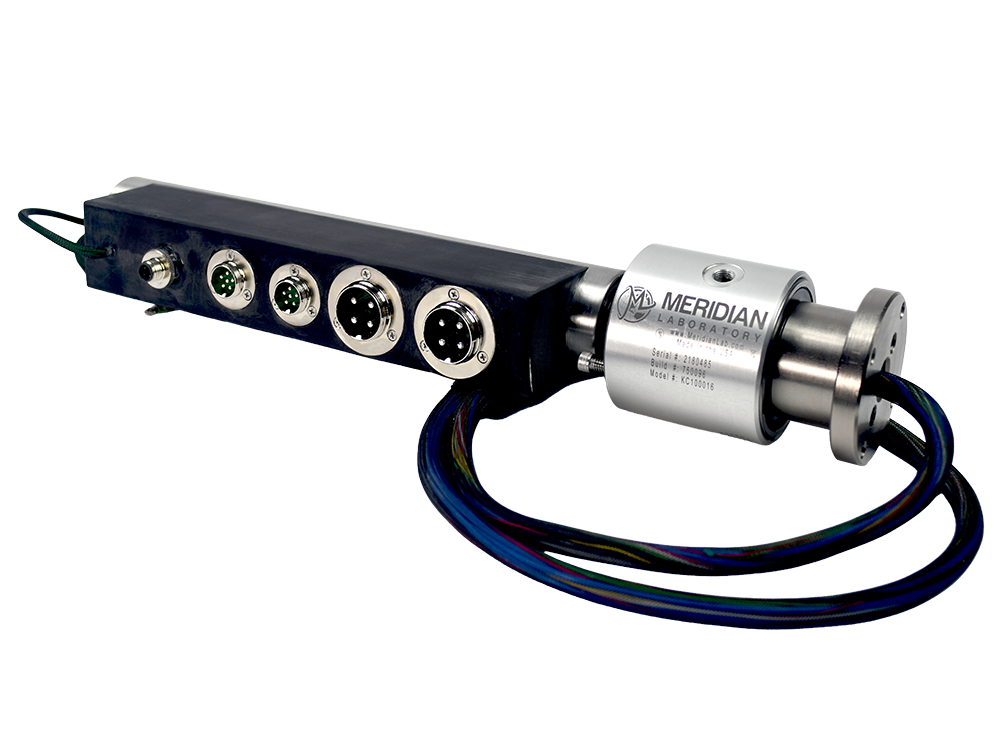

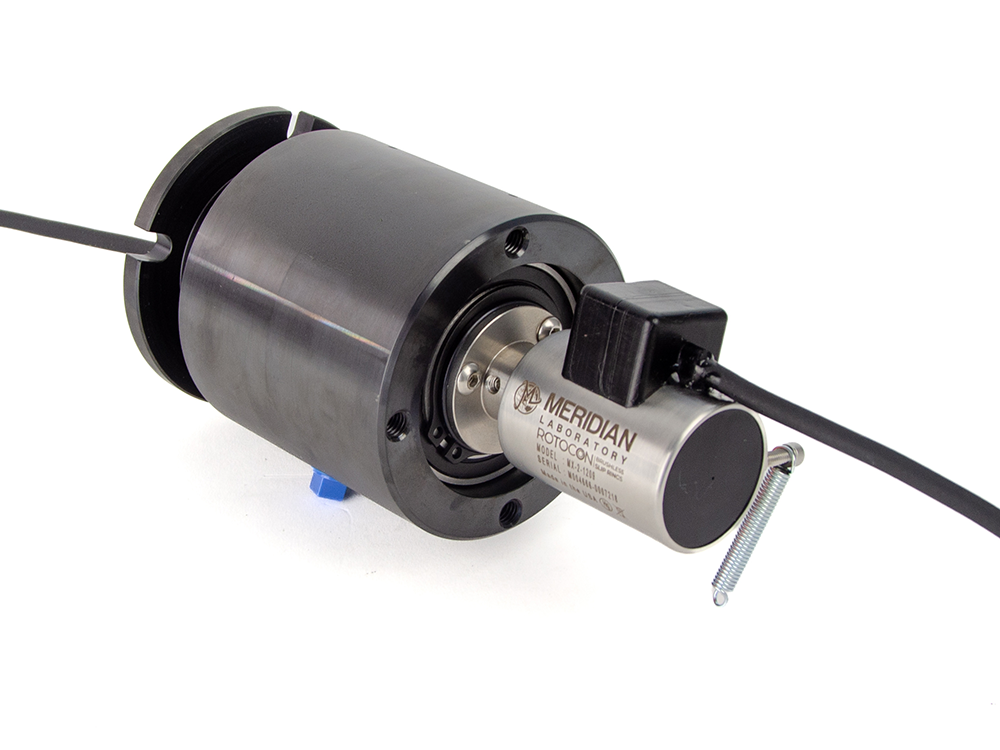

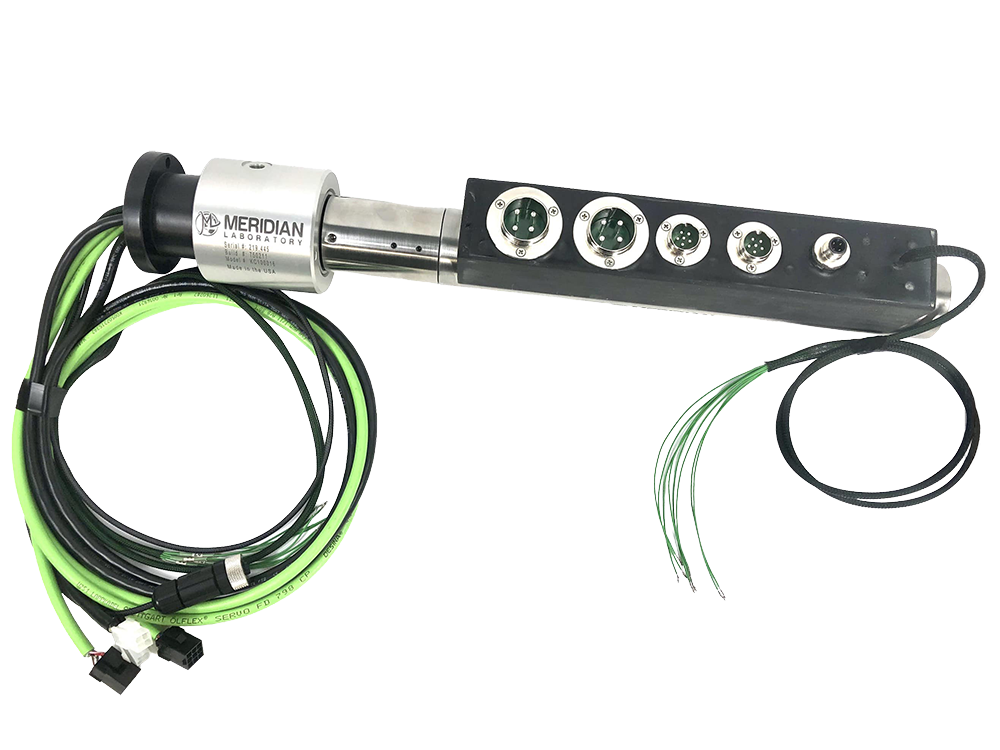

Rotary Union and ROTOCON Slip Ring Combinations for an All-in-One Solution
- Our rotary unions are available standalone or paired with ROTOCON slip rings for an all-in-one rotary fluid and electrical transfer solution
- Standard and custom-engineered rotary unions tailored to your exact application requirements
- Enables simultaneous transfer of electrical signals / power and various media types, including water, steam, chemicals, coolant, gas, mud, cement, cryogenics, oils, and more
For applications requiring both electrical and fluid transfer while rotating, Meridian Laboratory provides fully integrated rotary union and slip ring solutions. Our extensive selection of standard rotary unions is designed to accommodate a wide range of industries and applications. Additionally, we offer customized configurations to meet specific needs, including factors such as passage count, media type, pressure, speed, temperature, and electrical requirements.
With precision engineering and robust sealing technology, our rotary union and ROTOCON slip ring combinations deliver reliable, maintenance-free performance, ensuring uninterrupted operation in even the most demanding environments.
Advantages
Why choose Rotary Union and ROTOCON Brushless Slip Ring Combinations?
FAQs
Common Questions about Rotary Union Combinations
Do you offer standard rotary unions?
Yes, Meridian Laboratory offers standalone rotary unions, or those combined with ROTOCON rotary electrical connectors to provide electrical and fluid/media in a single assembly. Please visit our Rotary Union Combination page for more information on rotary unions.
Can I use a rotary union with a ROTOCON?
Yes! Meridian Laboratory offers standard and custom rotary unions to provide integrated electrical slip ring and rotary union combinations. Additionally, Meridian Laboratory can provide ROTOCON rotary electrical connectors to seamlessly integrate with rotary unions already in use on existing machines and equipment. Regardless of the project details, Meridian Laboratory has the expertise and product knowledge to serve as your single-source solutions provider for all rotary electrical and fluid media needs. Click here for more information on our rotary union combinations.
Are rotary unions rebuildable?
Rotary unions are typically rebuildable with new seals and bearings, assuming the mating surfaces are not damaged. For more information surrounding rebuilding rotary unions, please contact us for assistance.
Do you offer custom rotary unions?
Yes, Meridian Laboratory offers both simple customizations to standard rotary unions, as well as fully custom solutions tailored to your specific needs and requirements. To discuss your custom rotary union project, please contact us to get started.
How much torque is required to rotate a rotary union?
The amount of breakaway and rotational torque to rotate a rotary union varies by series and model number. Additionally, environmental factors such as temperature, media, pressure, and more, factor into the torque calculation. For specific information, please contact us for further assistance.
What media types can you pass through a rotary union?
Rotary unions can transfer a broad range of media, including liquids such as water, hydraulic oil, and coolant, as well as gases like compressed air, steam, and nitrogen. They are also capable of handling vacuum and, with specialized hard-faced seals, abrasive slurries. Because the media dictates the internal seal chemistry, unions are specifically configured to handle the unique temperature, pressure, and corrosive requirements of each substance.
Customization
Rotary Union and Slip Ring Combination Options
APPLICATIONS & USES
Common Uses for Rotary Union and Slip Ring Combinations
Rotary Welding Positioners
Rotary unions are combined with high current ROTOCON rotary grounds to provide an electrical ground circuit along with shielding gas to rotary welding applications.
Semiconductor Wafer Processing
Rotary unions are combined with brushless ROTOCON rotating electrical connectors to pass coolant and other fluids alongside electrical power and signal for accurate measurements and wafer processing.
Indexing Turntables
Rotary unions are combined with brushless ROTOCON slip rings to provide pneumatic and electrical control to devices on the rotating platform of assembly and manufacturing equipment.
