TECHNICAL FEATURES
ROTARY GROUND + ROTARY UNION COMBINATION
- All-In-One Rotating Electrical Ground + Rotary Union
- Provides rotary ground and feedthrough for welding shield gas
- Consistent and stable current without fluctuation
- Does not require grease, adjustment, or maintenance
Meridian Laboratory’s ROTOCON ERGT-800-1PRU combines a brushless high-current rotary electrical ground and a rotary gas union in a single assembly, offering an all-in-one solution. The ROTOCON ERGT-800-1PRU is designed to mount at the end of a workpiece while providing a low resistance electrical ground path and passing welding gas or other media to your workpiece. This seamless design enhances both the stability of the electrical connection and the flow of media, directly improving weld quality and performance.This integration eliminates the need for customers to source and combine separate devices, simplifying design and improving performance and reliability.
Rated for 800 amps DC at 100% duty cycle, the ROTOCON ERGT-800-1PRU delivers stable, fluctuation-free current in any orientation or speed. Its brushless design ensures maintenance-free operation, outperforming traditional brushed and metal-on-metal rotary grounds by eliminating the need for grease or routine adjustments. All ROTOCON brushless rotary grounds are environmentally sealed and can be used for both power (positive) and return (ground) circuits without affecting performance or longevity.
For applications that do not require a rotary gas union, check out our entire lineup of 800-amp rotary grounds.
Advantages
Why Choose ROTOCON Rotary Ground + Rotary Union Combinations?
General Specifications
ERGT-800-1PRU Rotary Ground + Union Specifications
ROTARY UNION
¼” NPT FITTING - COMPATIBLE WITH SHOP AIR, SHIELDING GAS, HYDRAULIC OILS, AND GREASE
For a complete list of rotary union specifications, please see the accompanying model list and datasheets.
ROTARY ELECTRICAL GROUND
800 AMPS DC AT 100% DUTY CYCLE
For a complete list of rotary ground specifications, please see the accompanying model list and datasheets.
MOUNTING
END-OF-SHAFT / WORKPIECE
Flange Mounting: A selection of standard mounting flanges are available, with the option of Meridian Laboratory providing a custom-sized mounting flange to meet application-specific requirements.
TEMPERATURE
-4°F to 160°F
(-20°C to 70°C)
Temperature rating is measured at the body of the ROTOCON slip ring under maximum current load and rotational speed; it should not exceed 160˚F for continuous periods of time. For application specific scenarios, please contact Meridian Laboratory.
Configurations
ERGT-800 Standard Models
| Name | Amperage | Mounting | Rotary Union | NPT Size | Max Operating Speed | Part Downloads | 2D Download Action Type | File Datasheet | Model Download (3D STP) | Photos |
|---|---|---|---|---|---|---|---|---|---|---|
| Custom Rotary Grounds with Unions | Up to 3000A | 500 | ||||||||
| ERGT-800 | 800A | Flange | No | 1/4" | 500 | Standard Model | MERIDIAN-LABORATORY-ROTOCON-ERGT-800.pdf | Yes | _MG_0734.jpg | |
| ERGT-800-1PRU | 800A | Flange | Yes | 1/4" | 100 | Standard Model | MERIDIAN-LABORATORY-ROTOCON-ERGT-800-1PRU.pdf | Yes | _MG_0730.jpg |
MOUNTING

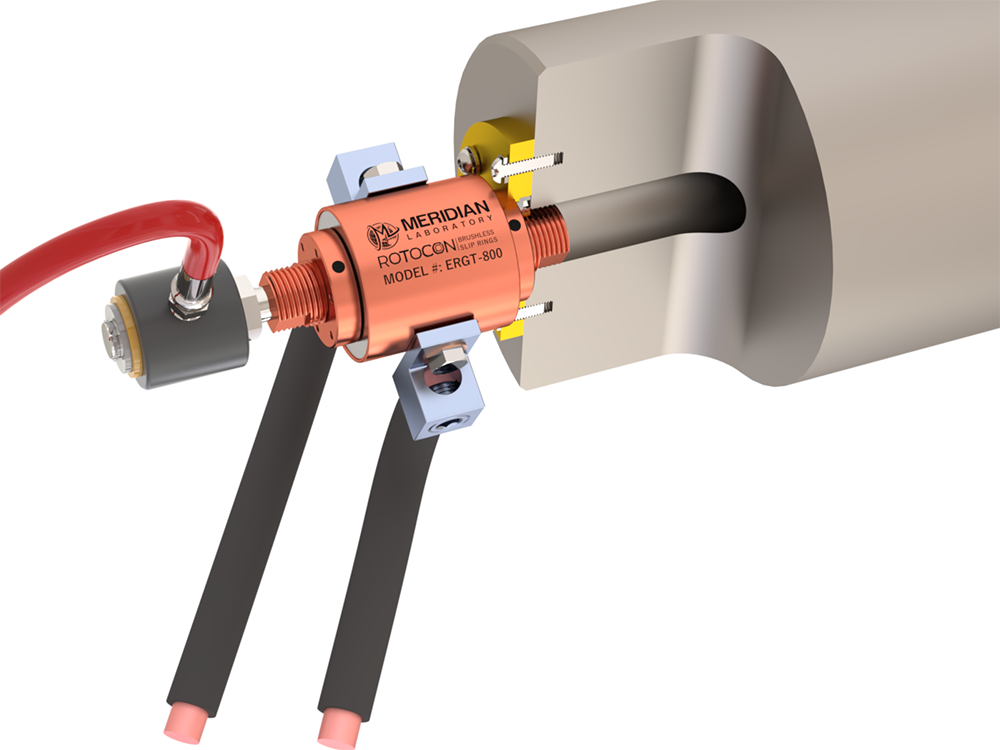

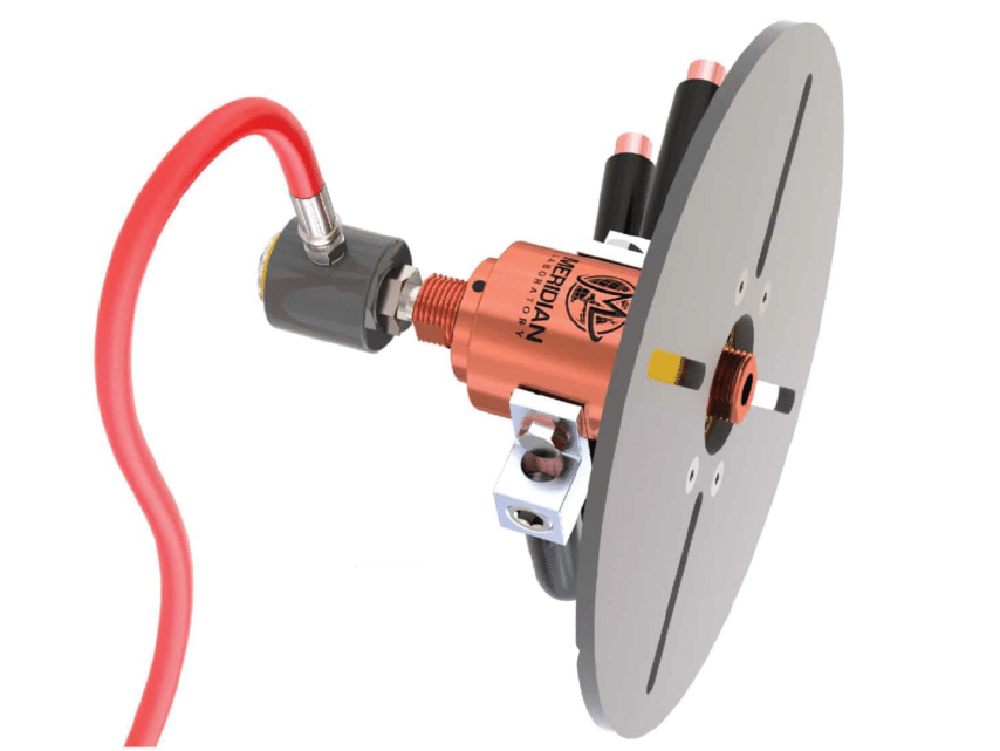

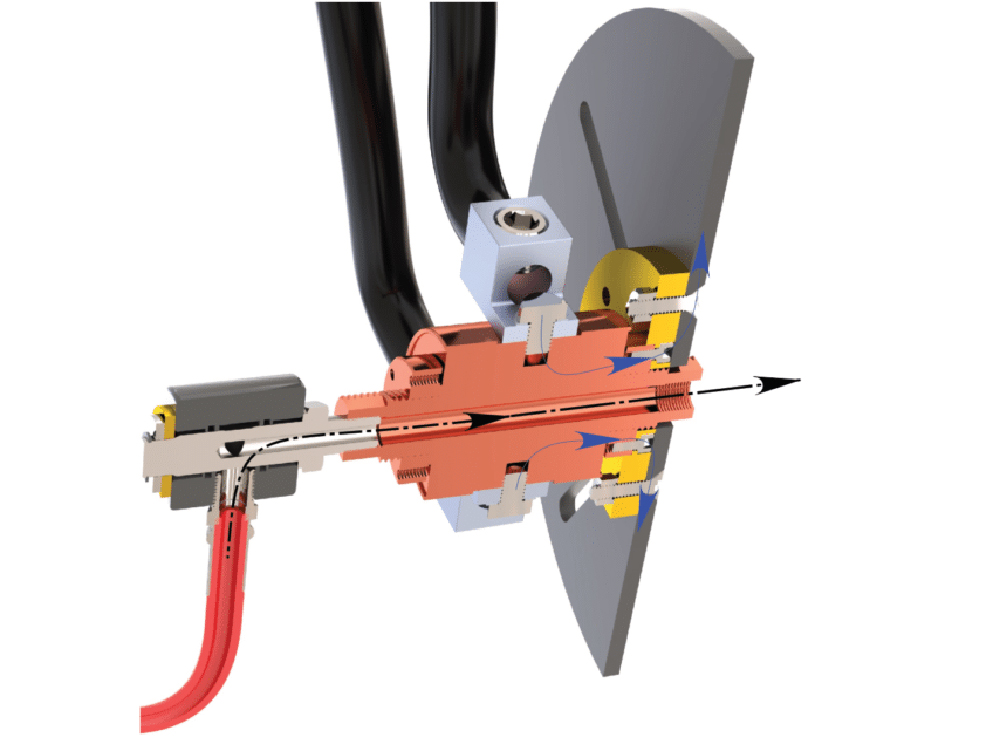

ERGT-800-1PRU Mounting Examples

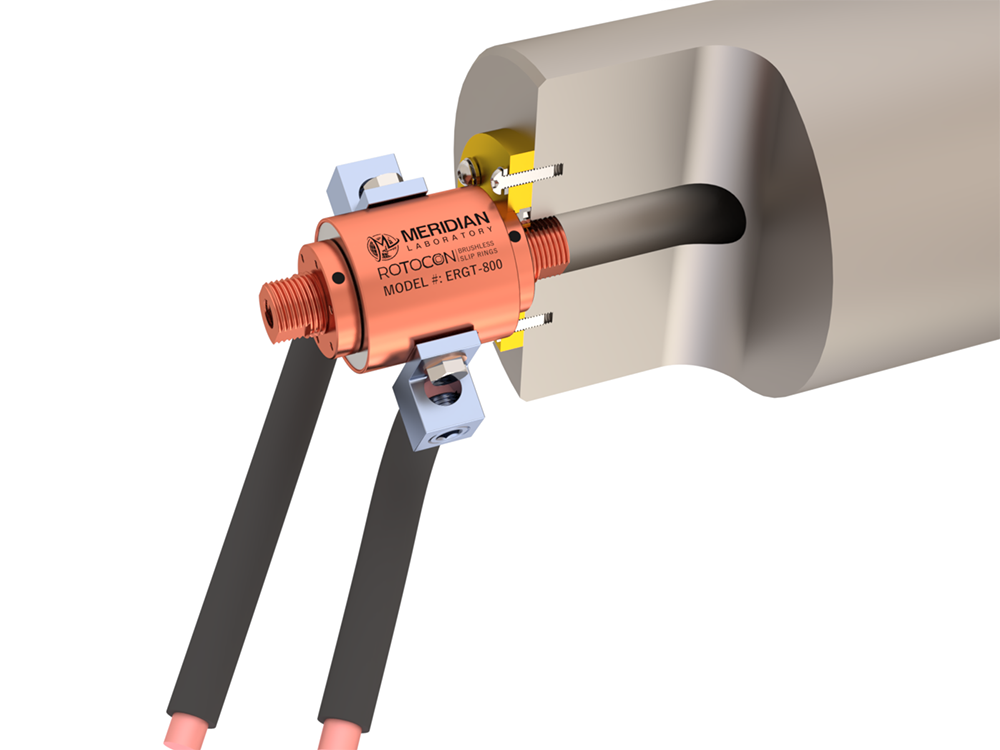

ERGT-800

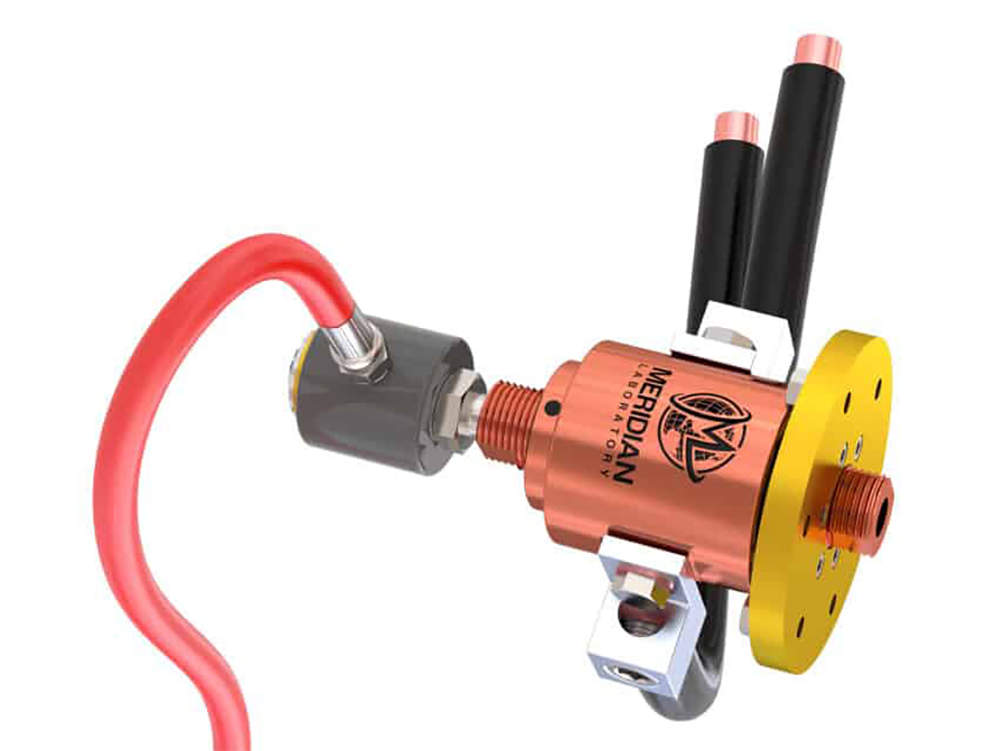

ERGT-800-1PRU
FAQs
Common Rotary Ground + Rotary Union Questions
Does conductive grease need to be applied when installing a ROTOCON rotary ground?
No. The application of grease of any kind, including conductive grease, between the conductive shaft or mating surfaces and the ROTOCON rotary ground is not advised. Meridian Laboratory recommends cleaning and degreasing both the mating surfaces and rotary ground prior to installation. If surface oxide is present on either component, light abrasion with 320 grit sandpaper or Scotch-Brite© Heavy Duty Green pads (or equivalent product) is recommended to ensure a robust electrical contact.
Do you offer a rotary ground with an integrated rotary gas union?
Yes, Meridian Laboratory offers a standard model ERGT-800-1PRU, offering the functionality of being both a rotating electrical ground and a gas/air union combined into one solution. We also offer custom rotary grounds and rotary unions based on the specific needs of your application. Please visit our Rotary Union Combination page or contact us to learn more.
Do you offer custom rotary unions?
Yes, Meridian Laboratory offers both simple customizations to standard rotary unions, as well as fully custom solutions tailored to your specific needs and requirements. To discuss your custom rotary union project, please contact us to get started.
What is the expected lifespan of a ROTOCON rotary ground?
ROTOCON rotary grounds are built to provide reliable, uninterrupted electrical contact over an extended operational lifespan, frequently surpassing 500 million revolutions without requiring cleaning, conductive grease, or brush maintenance. Our designs emphasize long-term performance and dependability, using carefully selected materials and components to ensure a robust, maintenance-free solution.
Which section of the rotary ground is electrically “live”?
The entire ROTOCON rotary ground is electrically “live,” meaning there is no electrical insulation between the shaft and the body of the unit. For more information surrounding this topic, please contact us for application-specific assistance.
What is the maximum voltage a ROTOCON can carry?
Nearly all ROTOCON rotary electrical connectors and rotary grounds are rated to a minimum of 600V AC/DC, unless otherwise stated on their respective model specific datasheets. The maximum voltage rating is largely dependent on the product series of ROTOCON brushless slip rings,but generally speaking, standard models are offered with voltage ratings up to 3,500V AC/DC and custom models available up to hundreds of thousands of volts.
Purpose-built ROTOCON rotary grounds and slip rings have been built, certified, and used for lightning arc grounding devices and other medium to extra high voltage applications up to 800kV. For application specific requirements above our nominally rated ROTOCON rotary ground and slip rings, please contact us for more direct support.
Maximum voltage varies depending on the ROTOCON series and model. See individual datasheets for specific ratings.
APPLICATIONS & USES
Common Uses for Rotary Ground & Rotary Union Combinations
Tilt & Rotate Weld Positioners
Welding positioners utilize our ROTOCON 800 amp rotary ground and rotary union combinations to provide a consistent ground circuit, while being able to pass weld shielding gas to the rotating workpiece.
Frame Welding Positioners
ROTOCON rotary grounds with rotary unions are critical in frame and chassis welding machines to provide repeatable quality welds without maintenance or adjustment.
