ROTOCON HIGH VOLTAGE SLIP RING RESOURCES

Explore the details below, including technical drawings, mounting instructions, applications, FAQs, expert articles, and more.

Configurations

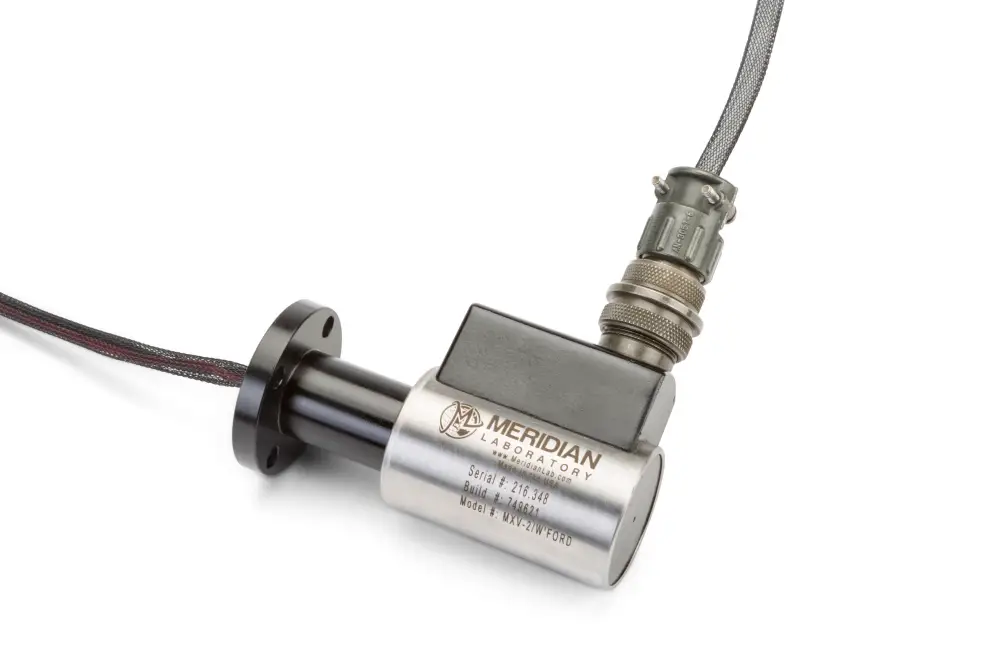

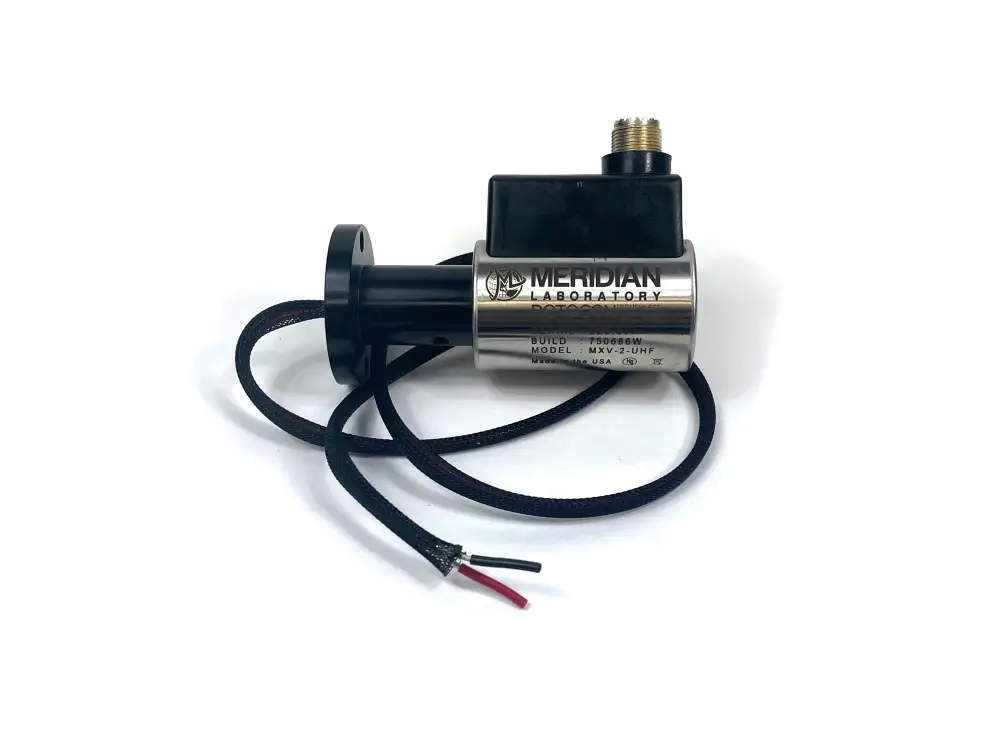

MXV Series High Voltage Slip Rings

Filter Products

Close Filter

Name	Channel Count	Voltage	Amperage	Data Speed	Thermocouple Wire	Mounting	Shaft Termination	Body Termination	Part Downloads	2D Download Action Type	File Datasheet	Model Download (3D STP)	Photos
MXV-8-0327	8	1500V	10A			Flange	Flying Leads	Connector		Odoo Custom Model	MERIDIAN-LABORATORY-ROTOCON-MXV-8-0327.pdf	Yes
MXV-14-1120	14	1500V	10A			End of Shaft	Flying Leads	Flying Leads		Odoo Custom Model	MERIDIAN-LABORATORY-ROTOCON-MXV-14-1120.pdf	Yes
MXV-6-0522	6	1500V	10A			Flange	Flying Leads	Flying Leads		Odoo Custom Model	MERIDIAN-LABORATORY-ROTOCON-MXV-6-0522.pdf	Yes	MXV-6-0522.jpg
MXV-6-0408	6	2000V	18A			End of Shaft	Flying Leads	Ring Terminals		Odoo Custom Model	MERIDIAN-LABORATORY-ROTOCON-MXV-6-0408.pdf	Yes
Custom High Voltage Slip Rings	Up to 30 Channels	Up to 10,000V	Up to 35A per Channel	Available up to 1000 Mbps (1 Gbps) Speed	Available with all types of thermocouple wire				Contact Us			Yes
MXV-14-1500	14	1,500V	10A			End of Shaft	Flying Leads	Ring Terminals		Standard Model	MERIDIAN-LABORATORY-ROTOCON-MXV-14-1500V.pdf	Yes
MXV-12-1500	12	1,500V	10A			End of Shaft	Flying Leads	Ring Terminals		Custom Model		Yes
MXV-10-1500	10	1,500V	10A			End of Shaft	Flying Leads	Ring Terminals		Custom Model		Yes
MXV-8-2500	8	2,500V	18A			End of Shaft	Flying Leads	Ring Terminals		Custom Model		Yes
MXV-8-1500	8	1,500V	18A			End of Shaft	Flying Leads	Ring Terminals		Custom Model		Yes
MXV-6-2500	6	2,500V	18A			End of Shaft	Flying Leads	Ring Terminals		Custom Model		Yes
MXV-6-1500	6	1,500V	18A			End of Shaft	Flying Leads	Ring Terminals		Custom Model		Yes
MXV-4-3500	4	3,500V	18A			End of Shaft	Flying Leads	Ring Terminals		Custom Model		Yes
MXV-4-2500	4	2,500V	18A			End of Shaft	Flying Leads	Ring Terminals		Custom Model		Yes
MXV-4-1500	4	1,500V	18A			End of Shaft	Flying Leads	Ring Terminals		Custom Model		Yes
MXV-3-3500	3	3,500V	18A			End of Shaft	Flying Leads	Ring Terminals		Custom Model		Yes
MXV-3-2500	3	2,500V	18A			End of Shaft	Flying Leads	Ring Terminals		Custom Model		Yes
MXV-3-1500	3	1,500V	18A			End of Shaft	Flying Leads	Ring Terminals		Custom Model		Yes
MXV-2-3500	2	3,500V	18A			End of Shaft	Flying Leads	Ring Terminals		Custom Model		Yes
MXV-2-2500	2	2,500V	18A			End of Shaft	Flying Leads	Ring Terminals		Standard Model	MERIDIAN-LABORATORY-ROTOCON-MXV-2-2500V.pdf	Yes
MXV-2-1500	2	1,500V	18A			End of Shaft	Flying Leads	Ring Terminals		Custom Model		Yes

Filter: Reset

#wtbp-table-62_793550_wrapper table {border-collapse: collapse;} #wtbp-table-62_793550_wrapper td {border-top: 1px solid #ffffff;border-left: 1px solid #a5c2ca;border-right: 1px solid #a5c2ca;} #wtbp-table-62_793550_wrapper tbody tr:first-child td {border-top: none;} #wtbp-table-62_793550_wrapper tbody tr:last-child td {border-bottom: 1px solid #ffffff;} #wtbp-table-62_793550_wrapper .child table {border-collapse: collapse;} .wtbpModalContent {width: 80%;} .wtbpModalContent.wtbpModalContentForVariations {max-width: 600px;}

Installation

ROTOCON MXV Series Installation

FAQs

Common High Voltage Slip Ring Questions

Can a ROTOCON be used in corrosive environments?

Yes, ROTOCON rotary electrical connectors and rotary grounds are built with durable, industrial-grade materials, making them suitable for many challenging environments. Depending on the level of exposure to corrosive substances, a standard model may be sufficient for your application. Meridian Laboratory also offers upgrades to enhance ingress protection (IP rating) and chemical resistance. For extreme cases, Meridian Laboratory has the ability to deliver custom ROTOCONs to meet the challenging environmental requirements of your application. Contact us to discuss your project and find the best solution for your needs.

Can a ROTOCON be used to transmit torque?

ROTOCON brushless rotary electrical connectors are primarily designed as passive devices and are not typically intended to transmit torque or support mechanical loads. However, Meridian Laboratory does offer specialized ROTOCON models that can be engineered to deliver rotational torque through the shaft. If your application requires torque transmission, please contact us so we can ensure the appropriate design and configuration for your needs.

Do you offer mating connectors?

Yes, Meridian Laboratory can source and supply mating electrical connectors and other accessories for easy integration into systems.

Does Meridian Laboratory offer miniature ROTOCONs?

The smallest series of multi-channel ROTOCON rotary electrical connectors which Meridian Laboratory offers is the MM Series. For help integrating ROTOCONs into small areas, please contact us for direct support.

What is the minimum quantity required for a custom ROTOCON?

There is no minimum order requirement for a custom ROTOCON slip ring. In most cases, we can tailor our standard models to fit your specific needs without a minimum quantity requirement.

For more complex or highly specialized projects, we work closely with your R&D and engineering teams to efficiently develop prototype, pre-production, and final production models at each stage of your project. Whether you need a single unit or a full production run, we are committed to delivering the right solution for your application. Contact us to discuss your requirements!

Do you offer covers to limit contact to exposed ring terminals?

Meridian Laboratory does not offer standard covers that can be added to limit contact with exposed ring terminals. However, we do offer the option to integrate potted flying leads or electrical connectors to the units, which adequately isolate exposed terminals and offer fast and easy termination. For more information on electrical termination options, please see the specific ROTOCON series in question.
