ROTOCON SLIP RINGS SOLUTIONS BY APPLICATION

Near-Zero Electrical Noise and No Metal-On-Metal Contact

ROTOCON brushless slip rings are used in acoustics test chambers for sensitive low-noise electrical measurements, transmitting signal from instrumentation to the stationary data acquisition systems.

The ROTOCON Advantage

Meridian Laboratory’s ROTOCON slip rings provide near-zero electrical noise for clean and accurate signal transmission. Unlike standard brushed slip rings, which rely on metal contacts that can create both physical (audible) and electrical noise, ROTOCON brushless slip rings have no metal-on-metal contacts. They are completely maintenance-free, requiring no adjustments, dust clean-out, or part replacements throughout their operation.

Dependable Data & Test Results

ROTOCON rotating electrical connectors are utilized in aerospace testing for vibrational, stress and strain, and other data measurements under rotation.

The ROTOCON Advantage

ROTOCON brushless slip rings provide dependable data and test results without signal packet loss, electrical noise, or bit errors for data critical applications. They offer reliable data integrity, maintaining flawless signal transmission throughout demanding testing environments.

Consistent Performance without Compromise

ROTOCON brushless slip rings are used in many of the popular rides at amusement parks, such as Gravitrons, Ferris wheels, and more. Our slip rings provide the power and signal needed to keep the lights on, the music playing, and the sensors functioning, ensuring a safe and enjoyable experience.

The ROTOCON Advantage

ROTOCON brushless slip rings are sealed and maintenance-free, consistently performing for hundreds of millions of total revolutions without the need for adjustment or replacement. They deliver consistent power and signal without compromise, ensuring maximum uptime.

Flawless Signal Quality with Zero Bit Errors

ROTOCON brushless slip rings and rotary unions are regularly used in automated assembly machinery and mechanical turntables and turrets to supply electrical power and media to powered platforms.

The ROTOCON Advantage

Our ROTOCON brushless slip rings offer the convenience of power, signal, and data in a single assembly, guaranteeing flawless signal quality with zero bit errors. Built to regularly surpass over 500 million revolutions without the need for upkeep, our slip rings are a reliable, high-performance solution for demanding automated assembly applications.

Continuous Operation and Zero Maintenance

ROTOCON custom brushless slip rings are used in battery and energy storage device production, during slurry mixing processes in corrosive environments, as well as for high speed, end-of-line resistance testing.

The ROTOCON Advantage

ROTOCON multi-channel slip rings are environmentally sealed and offer a completely maintenance-free operation. They are designed to operate continuously, providing a dependable rotating electrical contact 24 hours a day, 7 days a week, 365 days a year.

Environmentally Sealed and Maintenance-Free

ROTOCON rotary grounds deliver high-amperage electrical current to electroplating baths which break down and recycle lead acid batteries in an environmentally friendly way versus traditional methods such as smelting.

The ROTOCON Advantage

ROTOCON rotary grounds ensure the delivery of consistent high current without fluctuations or the need for maintenance during extended operation. The sealed nature of ROTOCON rotary grounds are designed to operate for hundreds of millions of rotations in harsh environments.

Longlasting and Maintenance-Free

ROTOCON brushless slip rings and fiber optic rotary joints are used to provide uninterrupted power, signal, and fiber optic communication in cable reels and tethers used across the entertainment industry.

The ROTOCON Advantage

ROTOCON rotating electrical connectors can provide flawless signal, power, and fiber optic transmission in a single assembly. One of the major advantages of a ROTOCON in cable reels is their zero-maintenance design, which eliminates the need for any adjustments or part replacements, unlike conventional brushed slip rings whose performance varies and degrades over time.

High-Speed Data Transfer without Interruption

Meridian Laboratory’s ROTOCON rotary electrical connectors are utilized in metal can manufacturing and filling machinery to deliver power and data to and from the rotating carousel.

The ROTOCON Advantage

ROTOCON rotary electrical connectors provide real-time information to the control panel at high speeds and data rates, with no interruptions or delay. They are built to last, regularly performing for hundreds of millions of total revolutions while requiring no form of maintenance and guaranteeing zero downtime.

Accurate and Reliable Measurements

ROTOCON multi-channel slip rings are used in centrifuge test cells to provide accurate data between rotating and stationary equipment.

The ROTOCON Advantage

ROTOCON aerospace slip rings transmit real-time sensor data from the blades back to the control system, offering high-speed capabilities with RPMs up to 10,000. Their compact and lightweight design allows for smooth integration into UAVs without adding unnecessary weight. ROTOCON’s sealed construction delivers dependable operation, specifically for outdoor environments.

Sealed Design and Real-Time Data Transfer

ROTOCON brushless slip rings are used in CMP processing to provide electrical power and Ethernet communication between the logic controller and the wafer polishing heads.

The ROTOCON Advantage

ROTOCON brushless slip rings offer seamless real-time communication without packet loss or bit errors, and are maintenance-free throughout their lifespan. They are sealed, durable, and deliver consistent performance with no change regardless of rotational direction.

Reliable Power and Signal Transmission

ROTOCON brushless slip rings are used in diaper manufacturing and other heated cutting and sealing applications to supply power to the rotating hot knives and provide precise temperature feedback to the controller.

The ROTOCON Advantage

ROTOCON slip rings deliver stable, dependable power and signal measurements without any fluctuation, regardless of rotational speeds. Thanks to their brushless design, they are maintenance-free and require no brush replacements, adjustments, or cleaning of any kind throughout their entire lifespan.

Sealed Design and Maintenance-Free

ROTOCON rotary grounds are used to deliver a consistent, high amperage current to electroplating baths, ensuring an even deposition of plating material on the end product.

The ROTOCON Advantage

ROTOCON rotary grounds feature a sealed design that withstands harsh plating environments and require no maintenance. With standard options ranging from 400 amps up to 10,000 amps, our rotary grounds deliver solutions to a variety of electroplating applications.

Precise Signal Measurement

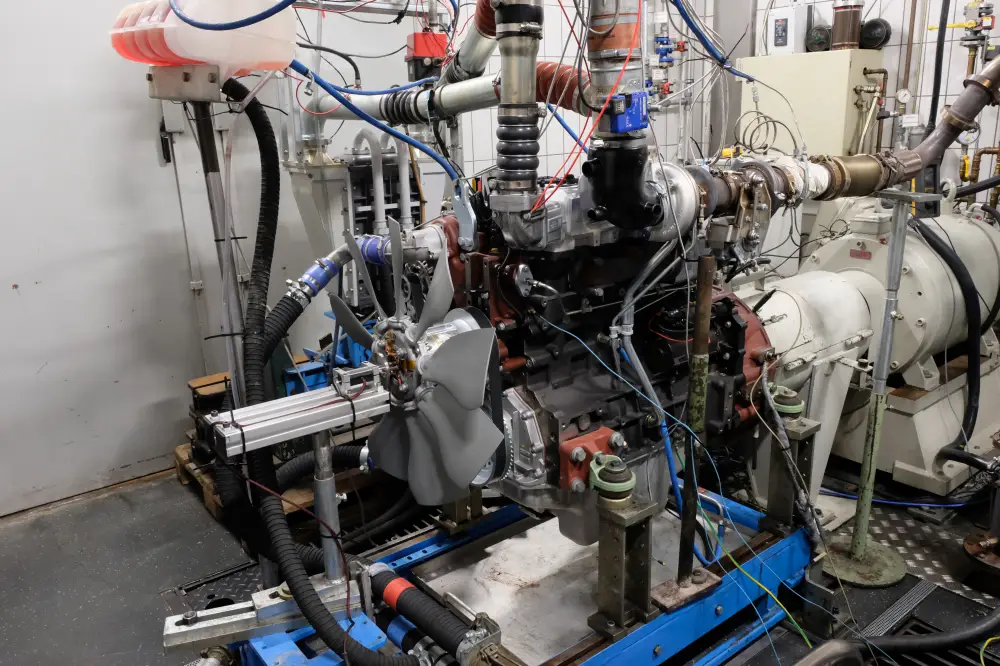

ROTOCON brushless slip rings are used for engine, electric motor, and transmission test stands to measure signals on rotating equipment. They are used for the measurement of fan blades, shaft vibration testing, torque transfer, stress/strain gauges, temperature, and other critical electrical signals that are present on the rotating parts of an engine, motor or transmission.

The ROTOCON Advantage

ROTOCONs are unaffected by rotational speed, temperature changes, vibration, orientation, dust and fluid exposure, or other environmental factors that would normally compromise traditional brushed slip rings. Our rotating electrical connectors provide accurate, real-time communication without any loss of signal integrity.

Uninterrupted Performance and Sealed Design

Our ROTOCON ERG-Series brushless rotary grounds are used to deliver high-amperage current for material plating processes to ensure a consistent and even deposition of plating materials.

The ROTOCON Advantage

Our ROTOCON ERG-Series rotary grounds are sealed and resistant to corrosive materials often used in plating processes. They provide a steady, uninterrupted current flow that maintains consistent performance for the life of the ROTOCON. The maintenance-free design of our rotary grounds offers reliability in the long-term, eliminating downtime or the need for adjustment or replacement.

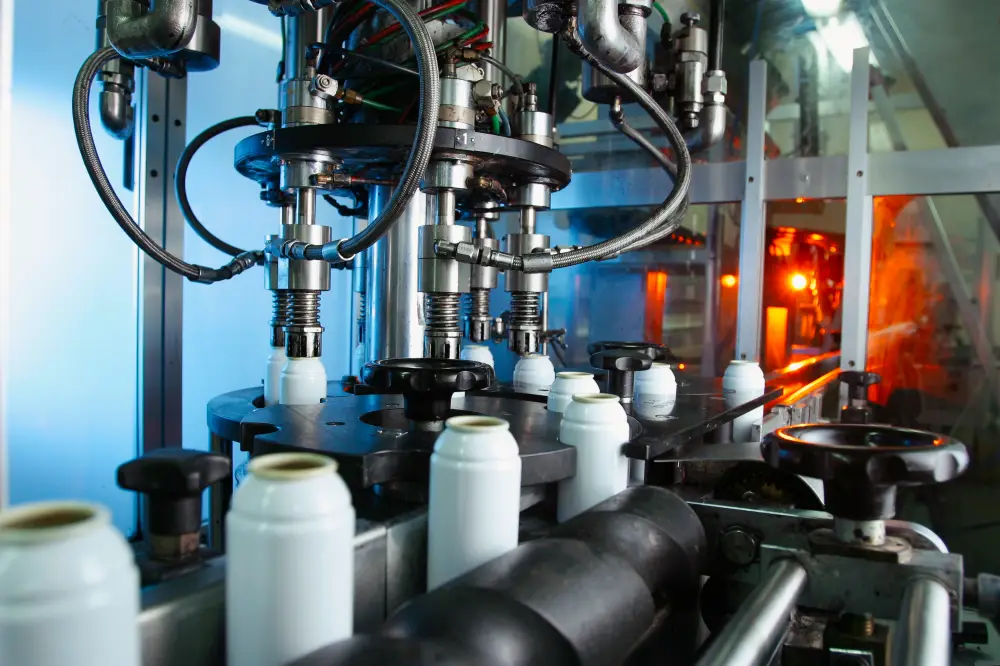

High-Speed Communication and Long-Term Performance

ROTOCON rotary electrical connectors are used in metal can and aerosol manufacturing machinery to deliver power and data between the rotating carousel and the control panel.

The ROTOCON Advantage

Food and aerosol machinery manufacturers choose Meridian Laboratory’s ROTOCON brushless slip rings for their consistent performance and longevity. Our rotating electrical connectors provide real-time information to the control panel at high data rates, without any interruption or loss. They regularly exceed hundreds of millions of revolutions, requiring no maintenance, attention, or downtime.

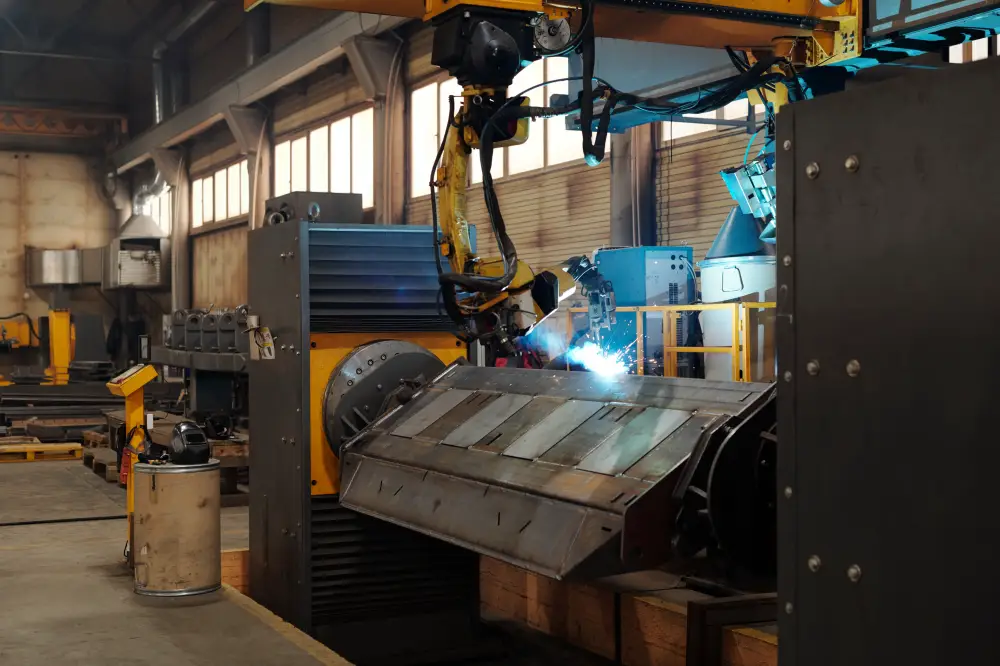

High-Quality Welds with Zero Maintenance

ROTOCON rotary grounds are used in frame and chassis welding positioners to provide an electrical ground circuit while being welded during rotation and while stationary.

The ROTOCON Advantage

ROTOCON rotary grounds deliver a steady, consistent electrical current without fluctuation, resulting in repeatable, high-quality welds, reduced QA, and less scrapped product. They require no type of maintenance, adjustments, or replacement throughout their life cycle, providing reliable performance for hundreds of millions of revolutions.

Critical Signal Data and Zero Downtime

ROTOCON slip rings and rotary grounds are used in high-frequency wafer processing equipment operating at 13.56MHz to ground the platen and provide signals during operation.

The ROTOCON Advantage

ROTOCON rotary grounds can be configured to operate at mid-to-high level frequencies, delivering a reliable ground circuit without the need for maintenance. ROTOCON multi-channel slip rings transmit critical signal data to ensure that wafer processing is as accurate and efficient as possible, with no downtime.

Brushless Technology Delivers Uninterrupted Performance

ROTOCON brushless slip rings and rotary grounds are used to transmit power, signals, and data from stationary control panels to rotating workpieces, sensors, and tooling in a variety of automated industrial processes.

The ROTOCON Advantage

ROTOCON slip ring technology is brushless and does not feature any internal wear or contact points. This provides long lasting and maintenance-free performance for challenging applications in industrial environments.

Flawless Power and Signal for Clear Resolution

ROTOCON brushless slip rings and fiber optic rotary joint assemblies are used to provide power and fiber optic data for intravascular and pullback imaging devices in medical applications.

The ROTOCON Advantage

ROTOCON brushless slip rings combine power and fiber optic data in a single, lightweight assembly to provide crisp, clear resolution in soft tissue imaging. Capable of high speeds up to 10k RPM, our slip rings deliver flawless signal quality without introducing electrical noise or resistance.

Hassle-Free Longevity

ROTOCON brushless slip rings are used to provide power to lights, motors, and transmit signals to and from sensors in rotating art installations for some of the most renowned institutions across the world.

The ROTOCON Advantage

ROTOCON slip rings are brushless and do not require any type of maintenance during their lifetime of use. This hassle-free durability guarantees that once installed, they will continue to perform reliably for the long haul, eliminating the need for routine upkeep.

Excellent Signal Quality and Customized Solutions

ROTOCON brushless slip rings are commonly used by some of the world’s leading public and private institutions to collect critical data in applications such as centrifugal testing, torque/strain gauge testing, high-frequency vibrational testing, and many other research and development applications.

The ROTOCON Advantage

ROTOCON brushless slip rings guarantee a clean, dependable signal regardless of orientation, signal type or RPM ensuring clear transmission of the most sensitive electrical sensors and devices. With a wide range of customization available for our standard models or custom slip rings, Meridian Laboratory offers tailor-made solutions for your unique requirements.

Consistent Rotation and Low-Resistance Current

ROTOCON brushless rotary grounds are used in the manufacturing of grain handling equipment, agricultural machinery, storage tanks, and electrical towers and poles to provide a high-amperage ground connection for the welding process.

The ROTOCON Advantage

Meridian Laboratory’s ROTOCON rotary grounds perform consistently at a 100% duty cycle without the need for grease, maintenance or adjustments over time. This reliability reduces QA issues and scrapped product, ensuring consistent current and repeatable weld penetration for a higher quality end product.

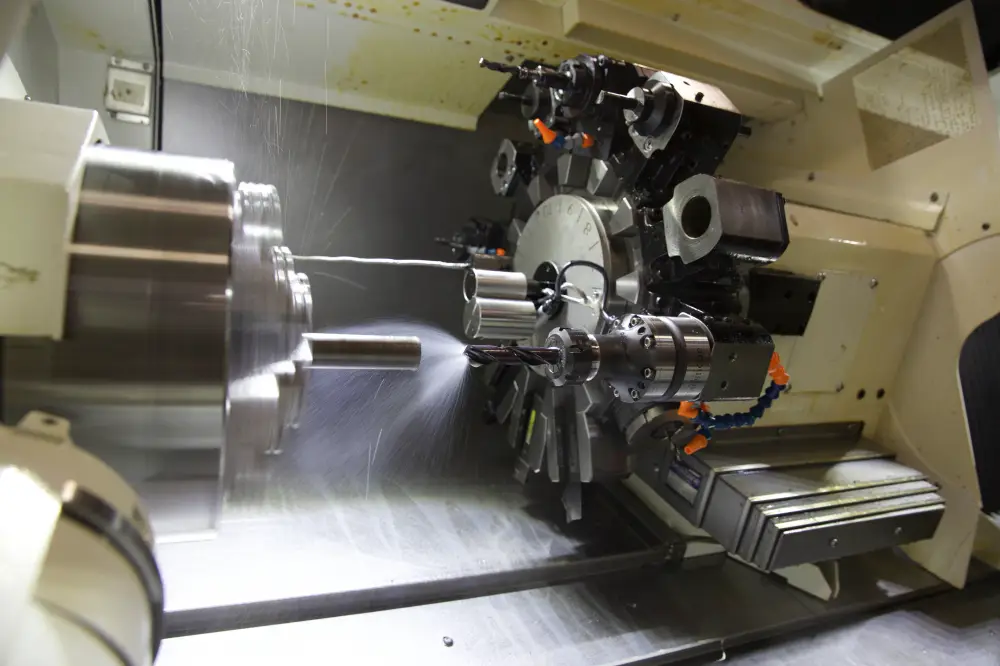

Durability and Consistent Performance

ROTOCON brushless slip rings, rotary unions, and rotary grounds are used in CNC machine tools, additive manufacturing processes, and machining centers to transmit power, electrical signals, and media. They support coolant delivery through spindles, hydraulic chuck actuation, high-frequency ultrasonic machining, and power supply to rotating tables and swivel spindles.

The ROTOCON Advantage

Machine tool manufacturers trust Meridian Laboratory’s ROTOCON products for their sealed design and durable material construction, which ensure they are unaffected by the conditions of challenging machining environments. Our electrical slip rings and rotary union combinations integrate power, signal and media within the same assembly, delivering dependable and consistent results.

Perfect Signal Integrity and Durability

MXO-Series ROTOCON marine-rated slip rings are used on oceanographic winches to provide power and signal to the instruments lowered into the water.

The ROTOCON Advantage

Our ROTOCON marine-rated slip rings are 100% sealed and unaffected by water, temperature, humidity, and rough environments. They require zero maintenance, guaranteeing perfect signal integrity over time and significantly outlasting traditional slip rings. Their durability and performance have made them a top choice for decades enduring the demanding conditions of oceanographic research. In fact, our MXO series was used in the groundbreaking 1985 expedition led by Bob Ballard (Woods Hole Oceanographic Institute) that discovered the wreck of the R.M.S Titanic.

Continuous Operation without Maintenance or Downtime

ROTOCON brushless slip rings and rotary grounds are used in a variety of production processes for consumables in the medical industry. ROTOCONs are employed in sterile needle grinding and packaging operations, surgical instrument manufacturing, and other applications involving the production of medical consumables.

The ROTOCON Advantage

ROTOCON brushless slip rings and rotary grounds are designed to provide continuous operation without ever requiring maintenance or downtime, ensuring uninterrupted production. Their sealed assembly prevents dust and contamination and is compliant with many clean room standards contributing to reliable performance throughout the production of medical consumables.

Uninterrupted Operation and Maintenance-Free

ROTOCON rotary electrical connectors are used in metal can manufacturing and filling machinery to transfer power, signals, and data from the control panel to the rotating equipment that forms, lines, and inspects cans as they are produced.

The ROTOCON Advantage

Meridian Laboratory’s brushless slip rings offer reliable, maintenance-free performance for hundreds of millions of revolutions. ROTOCON slip rings guarantee consistent power and precise real-time information during the production process, operating at high rotational speeds 24/7.

Flawless Signal Quality and Zero Noise

ROTOCON brushless slip rings are utilized in eddy current instrumentation and other high-frequency non-destructive testing (NDT) equipment to transmit power and signal.

The ROTOCON Advantage

Manufacturers of non-destructive testing equipment (NDT) depend on Meridian Laboratory’s ROTOCON slip rings for their industry-leading signal quality, stationary or rotating. They deliver flawless and accurate signal quality with no noise interference to guarantee the most accurate readings and measurements, regardless of orientation or total revolutions.

Standard and Customized Solutions

Meridian Laboratory’s ROTOCON slip rings are used by a wide variety of universities, government agencies, institutions, and private R&D efforts, including marine exploration, subsea vessels, cave mapping and imaging, water purity testing, and more.

The ROTOCON Advantage

Meridian Laboratory offers both standard and customized slip ring solutions to meet specific project needs, with no requirement for large volume orders. Clients can benefit from working directly with our US-based design and manufacturing team for direct support and streamlined communication.

Electrical and Pneumatic Combined for Maximum Capability

ROTOCON brushless slip rings are used to deliver power and signal to automated palletizing and packaging machines that require a mix of indexing and continuous rotation for repeatable performance, oftentimes with a need for pneumatics.

The ROTOCON Advantage

ROTOCON slip rings can be seamlessly integrated with rotary media unions for electrical and pneumatic rotation. They offer consistent performance whether in indexing or fully rotating applications, and require no maintenance or adjustment throughout their operation.

Consistent, Arc-Free Ground Circuit

Rotary grounds are used in PCB material manufacturing to provide a grounding circuit for rollers that experience static build-up and require a safe discharge path.

The ROTOCON Advantage

ROTOCON rotary grounds provide a consistent and arc-free ground circuit to dissipate static energy. They are sealed to protect against harsh chemicals and are built to survive the challenging environments in which they operate.

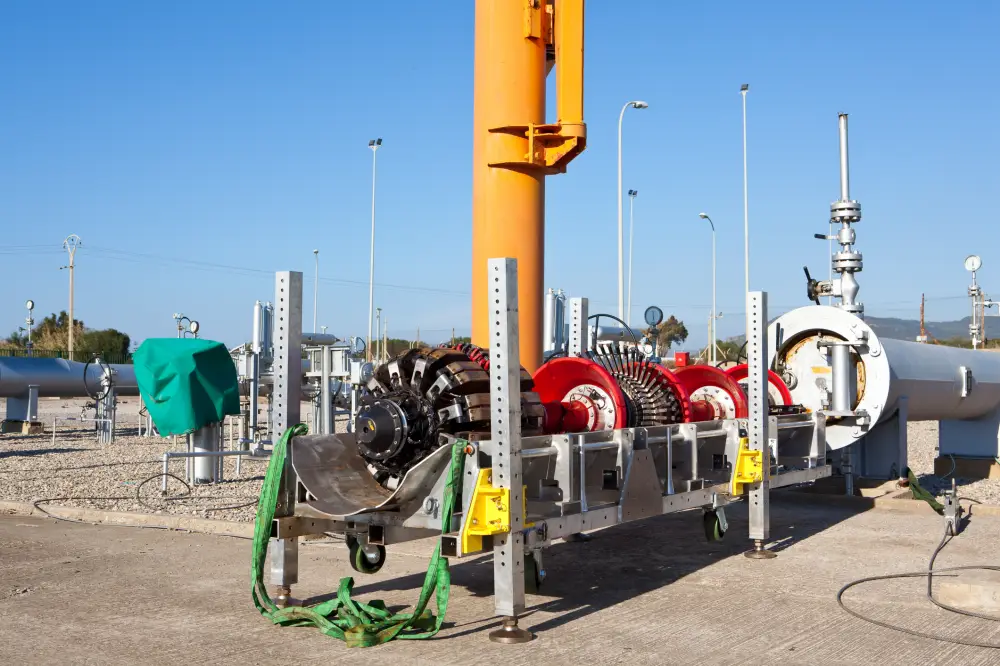

Premium Signal Quality and Environmentally Sealed

ROTOCON multi-channel slip rings are utilized within pipeline inspection cable reels and robots to provide camera signals, side scanning, laser profiling and other diagnostic signals to ensure accurate real-time information to the stationary monitoring platform.

The ROTOCON Advantage

The brushless design utilized in our ROTOCON rotating electrical connectors guarantees industry leading signal quality, especially when compared to electrically noisy brushed slip rings. Additionally, ROTOCONs are environmentally sealed to protect against dust, water, and other environmental factors to ensure a long-lasting, quality solution.

Zero Fluctuation and Sealed Design

ROTOCON rotary grounds are used to establish a stable ground circuit for pipes being welded together during manufacturing with either a ground clamp or when used in a rotary positioner.

The ROTOCON Advantage

Our ROTOCON rotary grounds are sealed, maintenance-free, and provide steady and consistent current flow without fluctuation. They outperform traditional, metal-on-metal contacts, without requiring any grease or adjustment during use.

Sealed Design and Steady Current Flow

ROTOCON rotary grounds deliver a stable, high-amperage current to electroplating baths to ensure a uniform deposition of plating material on your end product.

The ROTOCON Advantage

Meridian Laboratory’s ROTOCON brushless rotary grounds are the preferred choice for plating line manufacturers due to their sealed design and ability to withstand challenging conditions. They provide a steady current flow without fluctuation, delivering consistent and repeatable process control and high-quality results.

Accurate Signal and Sensor Measurements

ROTOCON electrical connectors are used in agitated process vessels to establish a reliable link between the stationary control panel and the rotating mix and measurement heads inside the tank.

The ROTOCON Advantage

Regardless of rotational speeds or start-stop conditions, ROTOCON brushless rotary connectors operate without any maintenance in continuous-use environments. They provide the most accurate signal and sensor readings, and are environmentally sealed to prevent dust and debris from affecting the system’s performance. Meridian Laboratory’s ROTOCON slip rings are ideal for long-lasting, reliable operation in agitated process vessels.

Sealed Design and High Reliability

ROTOCON marine-grade slip rings are critical components for communication and power between the vessel and the submerged remotely operated vehicle (ROV).

The ROTOCON Advantage

Our ROTOCON marine-rated rotating electrical connectors are sealed and internally fluid-filled for further reliability. Their maintenance-free design ensures longer deployments and reduces the need for topside servicing. Available with integrated subsea/marine connectors, they simplify installation and generate low electrical noise, minimizing data errors for cameras, sensors, and controls.

Mid-to-High Frequency Ranges with Minimal Loss

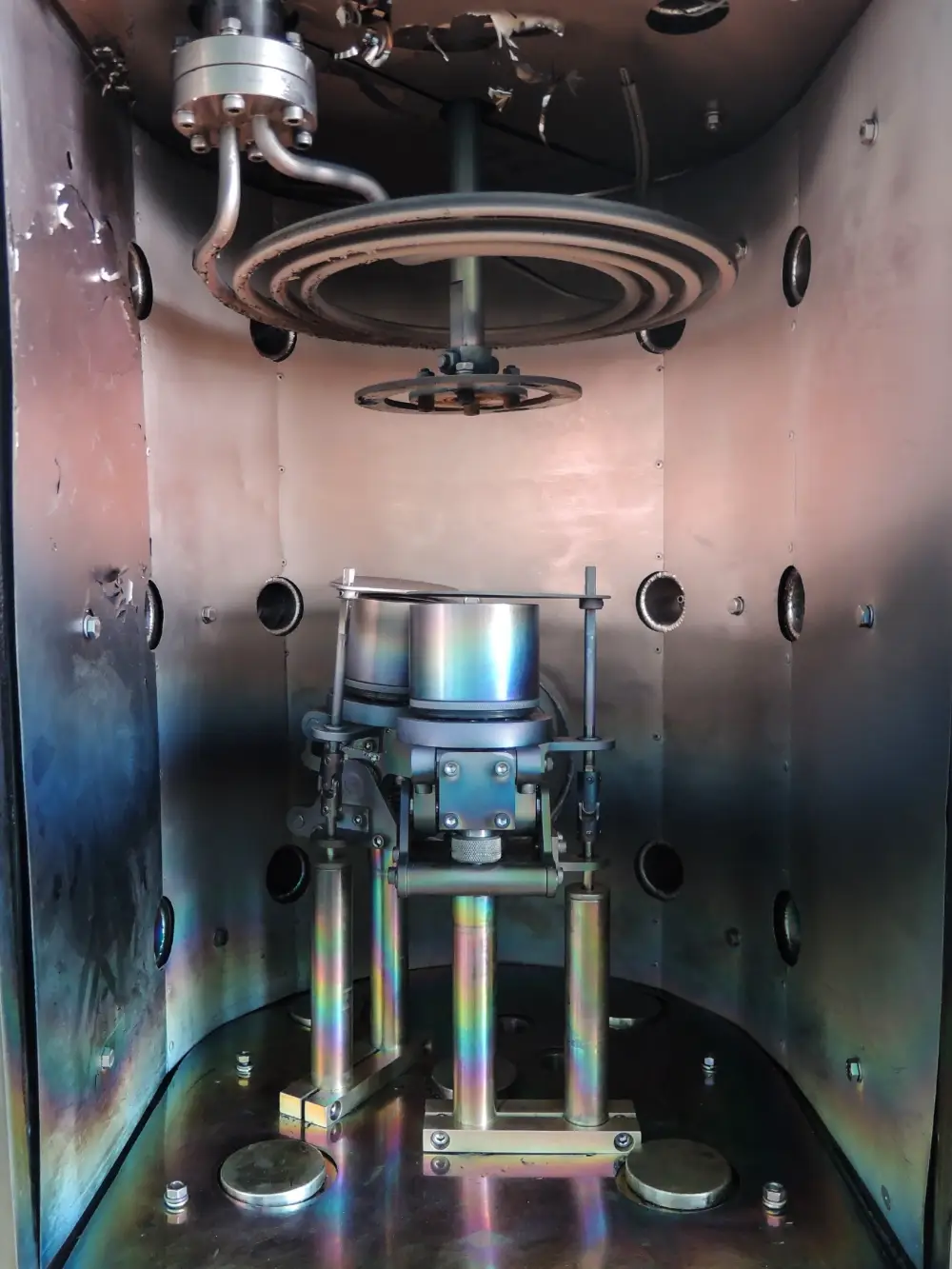

RF (Radio Frequency) sputtering deposition requires specialized rotary grounds that operate at mid-to-high frequencies to effectively ground the circuit during the ion deposition process onto the base material.

The ROTOCON Advantage

ROTOCON rotary grounds can be specifically engineered to handle mid-to-high frequency ranges with little loss, guaranteeing reliable and consistent ground contact without the need for maintenance, adjustments, or replacements. Fully sealed and dust-free, they operate without generating any type of free particulate matter.

Sealed for Washdown Environments

ROTOCON rotary electrical connectors are crucial components in rotary fillers, commonly used in filling and bottling machinery. They enable continuous electrical power and data transfer to rotating parts of the machinery, such as filling heads or conveyors.

The ROTOCON Advantage

The ROTOCON advantage lies in its maintenance-free, uninterrupted performance, even in harsh, washdown environments. Sealed to IP67 standards, our rotating electrical connectors are unaffected by humidity, liquid exposure, and other challenges that compromise traditional slip rings, guaranteeing consistent and dependable operation.

Operates Consistently without Fluctuations

Meridian Laboratory’s ROTOCON brushless slip rings are used in rotary sealing applications for blister pack and tray heat sealers, delivering power to the heaters and providing accurate temperature readings from the rotating carousel.

The ROTOCON Advantage

ROTOCON brushless rotating electrical connectors perform consistently, whether rotating, indexing, or stationary, with no fluctuations in power and signal delivery. They deliver consistent signals for accurate readings over their lifespan and require no maintenance.

Steady Current with Zero Fluctuation

Meridian Laboratory’s ROTOCON rotary grounds are used to ground a workpiece during welding, whether it is rotating or stationary.

The ROTOCON Advantage

ROTOCON rotary grounds deliver steady, consistent current without any fluctuation. This yields higher-quality welds, reduced QA issues, and less scrapped product, all while offering a maintenance-free design that lasts for hundreds of millions of revolutions.

Sealed Design and Convenient Operation

From concert stages to dynamic automotive displays, our slip rings guarantee seamless power and signal transmission for rotating stages, supporting the setups of high-profile events.

The ROTOCON Advantage

ROTOCON slip rings feature a durable, sealed design that ensures they perform consistently and reliably in any environment. A variety of electrical termination options allow for quick and simple connections to be made, perfect for frequent setup and breakdown.

Stable Current and Voltage

ROTOCON slip rings are used in high-voltage, high-surge current applications to enable subsea imaging. Thousands of amps at high voltage pass through ROTOCONs in short bursts of time, facilitating concentrated energy discharges for detailed subsea mapping and imaging.

The ROTOCON Advantage

Traditional slip rings would be greatly impacted by continuous surges of high voltage and high current, leading to internal arcing and frequent maintenance or replacement. In contrast, ROTOCON brushless slip rings are inherently arc-free and can be configured to handle these surges without internal damage. They consistently provide stable, uninterrupted electrical power.

24/7 Operation and Sealed, Dust-Free Design

ROTOCON brushless slip rings are used in tablet filling and packaging machines for automated picking and packing, rotating filler carousels, package sealing, and many other applications where consistent power and signal are required to transfer from the stationary source to a rotating assembly or process.

The ROTOCON Advantage

ROTOCON brushless slip rings are engineered for continuous, 24/7 operation without downtime or the need for maintenance. Featuring a sealed, dust-free design, our slip rings deliver the reliable performance needed in extreme environments, lasting for hundreds of millions of revolutions.

Lossless Signal & Power

ROTOCON brushless slip rings are used to connect ground-based equipment to tethered drones through electrical cable reels.

The ROTOCON Advantage

ROTOCON brushless rotating electrical connectors provide stable electrical connection without fluctuation, ensuring accurate data and consistent power delivery to and from the drone. Their 100% maintenance-free design provides hundreds of millions of revolutions with no change in performance.

Accurate Temperature Readings and Increased Throughput

ROTOCON brushless slip rings are used to deliver power and heat to the rotating cartridge heaters inside lip rollers that form the “lip” on plastic beverage cups (such as ‘Red Solo Cups’). They operate continuously at speeds of up to 800 RPM, running for days on end without interruption.

The ROTOCON Advantage

Stable and consistent temperature readings guarantee precise control over heater power, resulting in enhanced process accuracy and reliability. The maintenance-free design of our brushless slip rings provides significant improvements when compared to conventional brushed slip rings to provide maximum return on investment.

Real-Time Feedback and Compact, Durable Design

ROTOCON brushless slip rings are utilized in unmanned aerial vehicles (UAV) to provide power and signal to and from the rotating propellers. They are commonly used to power resistive heating elements for de-icing drone blades.

The ROTOCON Advantage

ROTOCON aerospace slip rings transmit real-time sensor data from the blades back to the control system, offering high-speed capabilities with RPMs up to 10,000. Their compact and lightweight design allows for smooth integration into UAVs without adding unnecessary weight. ROTOCON’s sealed construction delivers dependable operation, specifically for outdoor environments.

Signal Quality & Transmission for Assembly

ROTOCON brushless slip rings are used within automated assembly lines to provide power and communication to rotating equipment. These systems are designed for machinery that carefully performs repetitive operations in a precise, repeatable manner – without the need for manual supervision.

The ROTOCON Advantage

ROTOCON slip rings deliver repeatable and consistent signal quality and reliability, ensuring no downtime. They provide accurate, real-time communication without any loss of signal integrity. The importance of this precision is clear in automated processes to ensure process integrity and quality is maintained over time.

Maintenance-Free and Consistent Performance

ROTOCON rotating electrical connectors are used in underwater wave power generators to allow them to articulate and orient to the direction of the waves for maximum efficiency, while also eliminating cable breakage.

The ROTOCON Advantage

ROTOCON rotating electrical connectors are ideal for underwater wave power generators, where maintenance is costly and difficult due to the challenging environment. With their maintenance-free design and ability to perform consistently in both indexing/articulating motions and continuous rotation, ROTOCONs offer outstanding reliability and longevity. They can endure hundreds of millions of cycles, perfect for applications that demand long-term performance without the hassle of frequent upkeep.

Maintenance-Free with Power & Signal in One Assembly

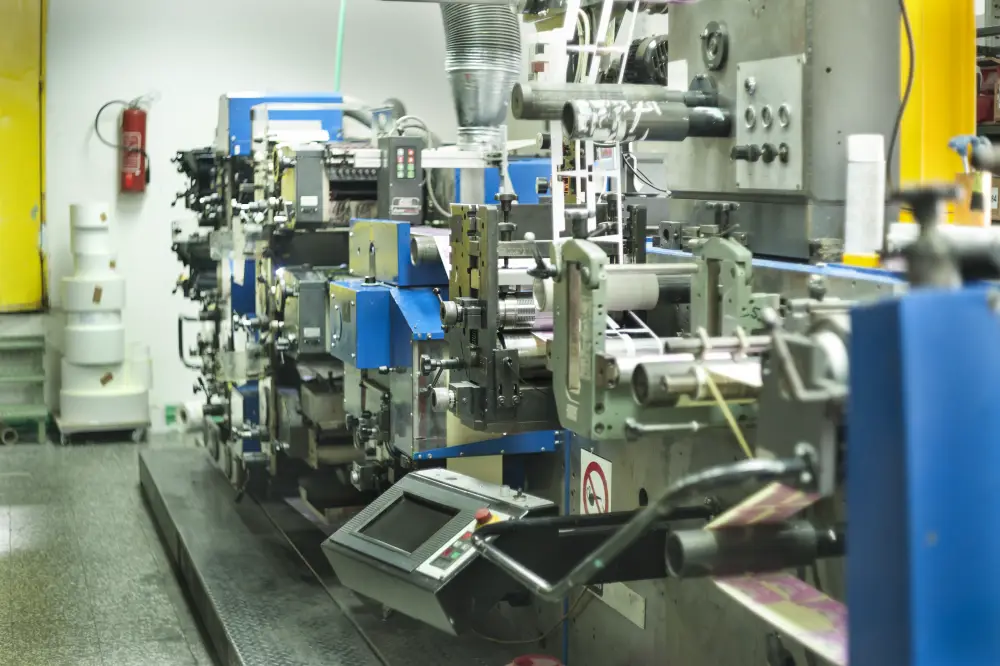

ROTOCON brushless slip rings are utilized in web converting machinery to perform coating, laminating, and film sealing. They deliver power and signal between the rotating heaters and sensors, to the stationary control panel.

The ROTOCON Advantage

For web converting machinery manufacturers, ROTOCON brushless slip rings offer several advantages. They are completely maintenance-free and require no upkeep, delivering flawless performance and maximum output for hundreds of millions of total revolutions. With power and signal delivered within a single assembly, our slip rings provide dependable and consistent power, electrical signal, and data with near zero electrical resistance or noise.

Consistent and Seamless Operation

ROTOCON slip rings are used in cable bundling machinery for the manufacturing of multi-stranded cables. Our rotary grounds are utilized to deliver high-amperage current to silver and nickel baths for even deposition of plating materials onto bare conductors.

The ROTOCON Advantage

ROTOCON brushless slip rings and high-amperage rotary grounds are 100% maintenance-free, requiring no brush replacement, grease, adjustment, or cleanup from dust. Due to their brushless technology, they provide reliable, long-term performance, consistently surpassing hundreds of millions of revolutions without any fluctuation. ROTOCON solutions guarantee continuous, quality performance in wire and cable manufacturing environments.
