FEATURES
BRUSHLESS HIGH-VOLTAGE ROTARY ELECTRICAL CONNECTORS PROVIDE MAINTENANCE-FREE PERFORMANCE
- Standard voltage ratings up to 3,500V with custom options exceeding 10,000V.
- Wear-free, arc-free rotary electrical contact for long-term reliability.
- Seamless integration of high voltage and low voltage signals in a single unit.

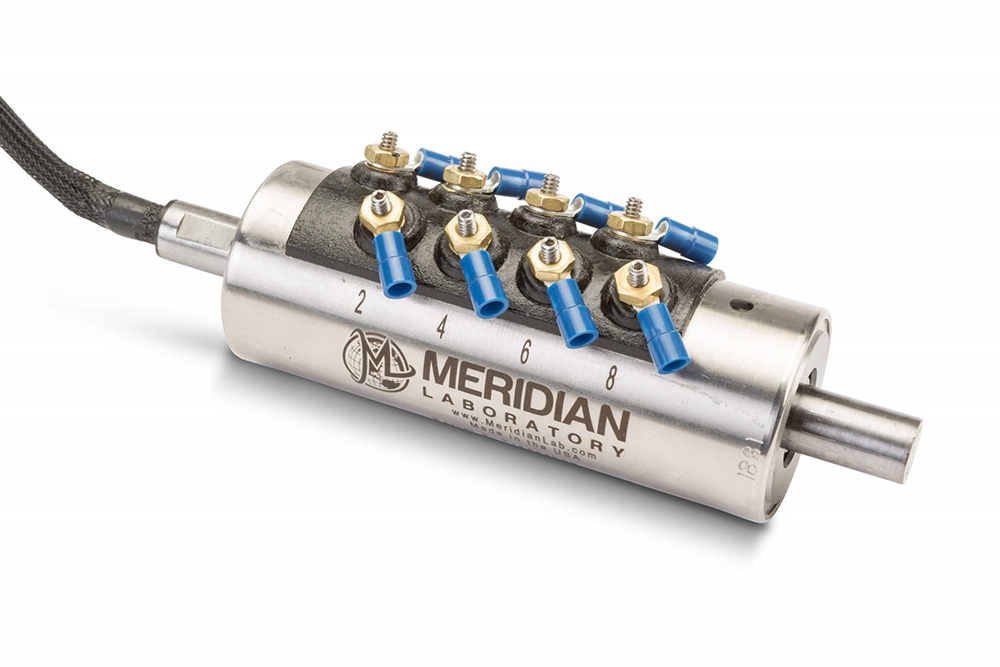

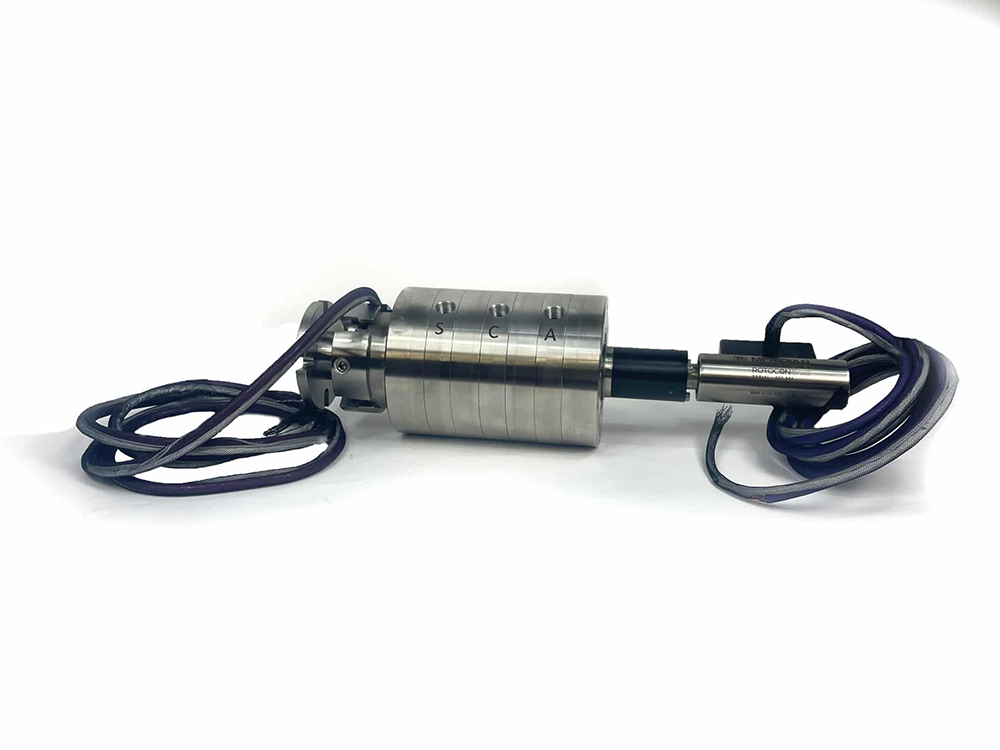

ROTOCON MXV Series high voltage rotary electrical connectors are available with up to 14 conductors / channels, designed for both high current power applications up to 20 amps per contact and for small signal level (mV / mA) transmission. ROTOCON high voltage rotary electrical connectors offer flexible customization with mechanical, electrical, and environmental options to match specific operational needs.
Unlike traditional brushed slip rings, ROTOCON high voltage rotary electrical connectors eliminate common failures caused by wear, electrical noise, and frequent maintenance requirements. One of their most critical advantages is their inherently arc-free operation, meaning they do not suffer from internal arcing – a common issue in conventional brushed slip rings that leads to premature failure, degraded signal integrity, and increased downtime.
Meridian Laboratory’s ROTOCON technology leverages an innovative brush-free contact system, ensuring flawless signal transmission, extended service life, and zero electrical interference. ROTOCON high voltage rotary electrical connectors are sealed for environmental protection for a wide range of demanding applications, making them the superior choice for high reliability.
For higher channel counts, explore our entire MXV Series of high voltage rotating electrical connectors.
Additionally, for applications which are less than 600 volts, please see our Multi-Channel MX-Series Slip Rings for more information.
Advantages
Why Choose ROTOCON High Voltage Rotary Electrical Connectors?
General Specifications
High Voltage Rotating Electrical Connector Specifications
MOUNTING
End-of-Shaft
End-of-Shaft: This series of rotating electrical connectors is intended to be mounted at the end of a workpiece and is typically secured via set screws to the shaft, or has a variety of other options available.
VOLTAGE
Up to 3,500VDC
ROTOCON high voltage slip rings come standard in voltage ratings up to 3,500VDC. For higher voltage requirements, please contact us for further information and assistance.
TEMPERATURE
-35˚F to 160˚F
(-20°C - 70°C)
Temperature rating is measured at the body of the ROTOCON slip ring under maximum current load and rotational speed; it should not exceed 160˚F for continuous periods of time. For application specific scenarios, please contact Meridian Laboratory.
CONTACT RESISTANCE
0.2mΩ
Contact resistance refers to the electrical resistance between the stationary and rotating portions, internal to the ROTOCON rotating electrical connector. This is measured without additional cabling or connectors, and is internal to the units themselves. This is measured stationary or rotating, regardless of rotational direction, speed, or orientation.
Configurations
MXV Series Models (8-14 Channels)
| Name | Channel Count | Voltage | Amperage | Data Speed | MT - Thermocouple Wire | Mounting | Shaft Termination | Body Termination | Part Downloads | 2D Download Action Type | File Datasheet | Model Download (3D STP) | Photos |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Custom High Voltage ROTOCON Slip Rings | Up to 30 Channels | 000V, Up to 5 | Up to 35A per Channel | Available up to 1000 Mbps (1 Gbps) Speed | Available with all types of thermocouple wire | Yes | |||||||
| MXV-10-1500 | 10 | 1500V | 10A | End of Shaft | Flying Leads | Ring Terminals | Custom Model | Yes | |||||
| MXV-12-1500 | 12 | 1500V | 10A | End of Shaft | Flying Leads | Ring Terminals | Custom Model | Yes | |||||
| MXV-14-1120 | 14 | 1500V | 10A | End of Shaft | Flying Leads | Flying Leads | Odoo Custom Model | MERIDIAN-LABORATORY-ROTOCON-MXV-14-1120.pdf | Yes | ||||
| MXV-14-1500 | 14 | 1500V | 10A | End of Shaft | Flying Leads | Ring Terminals | Standard Model | MERIDIAN-LABORATORY-ROTOCON-MXV-14-1500V.pdf | Yes | ||||
| MXV-8-0327 | 8 | 1500V | 10A | Flange | Flying Leads | Connector | Odoo Custom Model | MERIDIAN-LABORATORY-ROTOCON-MXV-8-0327.pdf | Yes | ||||
| MXV-8-1500 | 8 | 1500V | 18A | End of Shaft | Flying Leads | Ring Terminals | Custom Model | Yes | |||||
| MXV-8-2500 | 8 | 2500V | 18A | End of Shaft | Flying Leads | Ring Terminals | Custom Model | Yes |
Mounting
MXV Series Mounting Options
END-OF-SHAFT (STANDARD)

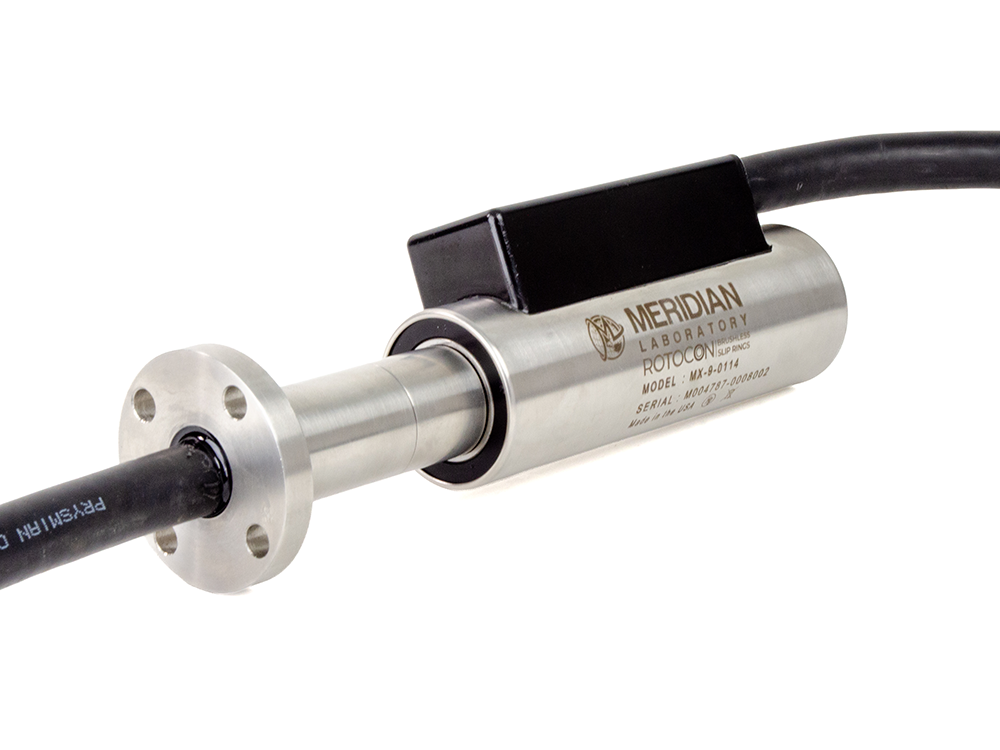

SHAFT FLANGE
BODY FLANGE
DOUBLE END-OF-SHAFT
For through-hole slip rings, check out our MXT-Series of through-hole rotary electrical connectors.
FAQs
Common High Voltage Rotating Electrical Connector Questions
What size mount do I need?
Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit amet. Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat
Is this RoHS/CE compliant?
Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit amet. Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat
What speed does this reach?
Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit amet. Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat
How do I mount this item?
Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit amet. Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat
Customization
High Voltage Rotary Electrical Connector Customization Options
APPLICATIONS & USES
Rotary Heat Seal Machines
Meridian Laboratory’s ROTOCON high voltage rotary electrical connectors are used in rotary sealing applications for blister pack and tray heat sealers, delivering power to the heaters and providing accurate temperature readings from the rotating carousel.
Wireline Ultrasonic Logging
Ultrasonic high frequency logging utilizes ROTOCON brushless rotary electrical connectors that require more signals, which provide accurate real-time readings for high frequency tools.
Diaper Manufacturing
ROTOCON high voltage rotary electrical connectors are used in diaper manufacturing and other heated cutting and sealing applications to supply power to the rotating hot knives and provide precise temperature feedback to the controller.
