FEATURES
Brushless High-Voltage Rotating Electrical Connectors Deliver Superior Performance
- Available voltage ratings of 3,500V (standard) and 10,000V+ (custom).
- Arc-free rotating electrical contact with no wear components.
- Combine high voltage and low voltage signal together.
ROTOCON high voltage rotating electrical connectors are available with up to 14 channel / conductor configurations, designed for both high-current power transfer (up to 20 amps per contact) and signal-level transmission in rotating applications.
All ROTOCON high voltage rotating electrical connectors are inherently arc-free, delivering low and stable electrical resistance for reliable performance. Their environmentally sealed construction and durable materials make them ideal for manufacturing and production applications, ensuring long-lasting operation without the downtime and maintenance required by traditional metal-on-metal slip rings.
ROTOCON high voltage rotating electrical connectors are used in wireline cable reels, downhole logging, resistive heated rollers and sealers, medical manufacturing, packaging, and other demanding industries. ROTOCON high voltage rotating electrical connectors provide a reliable, maintenance-free solution.
For higher channel counts, explore our entire MXV Series of high voltage rotating electrical connectors.
Additionally, for applications which are less than 600 volts, please see our Multi-Channel MX-Series Slip Rings for more information.
Advantages
Why Choose ROTOCON High Voltage Rotating Electrical Connectors?
General Specifications
High Voltage Rotating Electrical Connector Specifications
MOUNTING
End-of-Shaft
End-of-Shaft: This series of rotating electrical connectors is intended to be mounted at the end of a workpiece and is typically secured via set screws to the shaft, or has a variety of other options available.
VOLTAGE
Up to 3,500VDC
ROTOCON high voltage slip rings come standard in voltage ratings up to 3,500VDC. For higher voltage requirements, please contact us for further information and assistance.
TEMPERATURE
-35˚F to 160˚F
(-20°C - 70°C)
Temperature rating is measured at the body of the ROTOCON slip ring under maximum current load and rotational speed; it should not exceed 160˚F for continuous periods of time. For application specific scenarios, please contact Meridian Laboratory.
CONTACT RESISTANCE
0.2mΩ
Contact resistance refers to the electrical resistance between the stationary and rotating portions, internal to the ROTOCON rotating electrical connector. This is measured without additional cabling or connectors, and is internal to the units themselves. This is measured stationary or rotating, regardless of rotational direction, speed, or orientation.
Configurations
MXV Series Mounting Options
| Name | Channel Count | Voltage | Amperage | Data Speed | MT - Thermocouple Wire | Mounting | Shaft Termination | Body Termination | Part Downloads | 2D Download Action Type | File Datasheet | Model Download (3D STP) | Photos |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Custom High Voltage ROTOCON Slip Rings | Up to 30 Channels | 000V, Up to 5 | Up to 35A per Channel | Available up to 1000 Mbps (1 Gbps) Speed | Available with all types of thermocouple wire | Yes | |||||||
| MXV-2-1500 | 2 | 1500V | 18A | End of Shaft | Flying Leads | Ring Terminals | Custom Model | Yes | |||||
| MXV-2-1500 | 2 | 1500V | 18A | End of Shaft | Flying Leads | Ring Terminals | Custom Model | Yes | |||||
| MXV-2-2500 | 2 | 2500V | 18A | End of Shaft | Flying Leads | Ring Terminals | Standard Model | MERIDIAN-LABORATORY-ROTOCON-MXV-2-2500V.pdf | Yes | ||||
| MXV-2-3500 | 2 | 3500V | 18A | End of Shaft | Flying Leads | Ring Terminals | Custom Model | Yes | |||||
| MXV-3-1500 | 3 | 1500V | 18A | End of Shaft | Flying Leads | Ring Terminals | Custom Model | Yes | |||||
| MXV-3-2500 | 3 | 2500V | 18A | End of Shaft | Flying Leads | Ring Terminals | Custom Model | Yes | |||||
| MXV-3-3500 | 3 | 3500V | 18A | End of Shaft | Flying Leads | Ring Terminals | Custom Model | Yes | |||||
| MXV-4-1500 | 4 | 1500V | 18A | End of Shaft | Flying Leads | Ring Terminals | Custom Model | Yes | |||||
| MXV-4-2500 | 4 | 2500V | 18A | End of Shaft | Flying Leads | Ring Terminals | Custom Model | Yes | |||||
| MXV-4-3500 | 4 | 3500V | 18A | End of Shaft | Flying Leads | Ring Terminals | Custom Model | Yes | |||||
| MXV-6-0408 | 6 | 2000V | 18A | End of Shaft | Flying Leads | Ring Terminals | Odoo Custom Model | MERIDIAN-LABORATORY-ROTOCON-MXV-6-0408.pdf | Yes | ||||
| MXV-6-0522 | 6 | 1500V | 10A | Flange | Flying Leads | Flying Leads | Odoo Custom Model | MERIDIAN-LABORATORY-ROTOCON-MXV-6-0522.pdf | Yes | MXV-6-0522.jpg | |||
| MXV-6-1500 | 6 | 1500V | 18A | End of Shaft | Flying Leads | Ring Terminals | Custom Model | Yes | |||||
| MXV-6-2500 | 6 | 2500V | 18A | End of Shaft | Flying Leads | Ring Terminals | Custom Model | Yes |
MOUNTING
MXV Series Mounting Options
END-OF-SHAFT (STANDARD)
SHAFT FLANGE
BODY FLANGE
DOUBLE END-OF-SHAFT
For through-hole slip rings, check out our MXT-Series of through-hole rotary electrical connectors.
FAQs
Common High Voltage Rotating Electrical Connector Questions
What size mount do I need?
Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit amet. Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat
Is this RoHS/CE compliant?
Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit amet. Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat
What speed does this reach?
Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit amet. Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat
How do I mount this item?
Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit amet. Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat
Customization

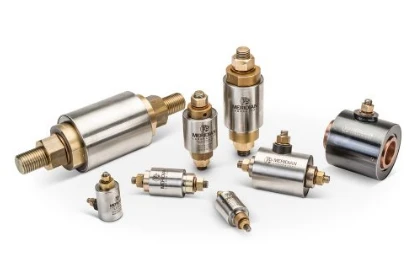

High-Speed Rotary Electrical Connector Customization Options
APPLICATIONS & USES
Wireline
ROTOCON high voltage rotating electrical connectors are installed on wireline cable reels, delivering power and signal from the operations center in the wireline truck to downhole tools. They are utilized in a wide range of processes, including plasma pulse generator tools, jet cutters, bond logging, caliper logging, ultrasonic logging, temperature tooling, and many more.
Rotary Heat Sealers
Meridian Laboratory’s ROTOCON high voltage rotary electrical connectors are used in rotary sealing applications for blister pack and tray heat sealers, delivering power to the heaters and providing accurate temperature readings from the rotating carousel.
Diaper Production
ROTOCON high voltage rotary electrical connectors are used in diaper manufacturing and other heated cutting and sealing applications to supply power to the rotating hot knives and provide precise temperature feedback to the controller.
