ROTOCON MXV Series

Brushless High Voltage Slip Rings

Request A Quote

OVERVIEW

Contactless High Voltage Slip Rings Without Brush Wear and Arcing

Available with up to 14 channels and up to 3,500V (standard) and 10kV+ (custom)
ROTOCON technology provides a sealed, arc-free rotating electrical contact without wear parts
Combine high voltage and low voltage signal within the same assembly

ROTOCON high voltage slip rings are available with up to 14 electrical channels and standard voltage configurations of 1500V, 2500V, and 3,500V. Meridian Laboratory also offers custom, high voltage slip rings for voltage potentials up to 10kV. All ROTOCON high voltage slip rings are designed to handle low voltage signals in addition to high voltage lines, with strong insulation resistance between channels.

ROTOCON high voltage slip rings are commonly used on wireline logging and measurement, ultrasonic welding and etching, x-rays, cable reels for pipe inspection, and other applications where the need for a reliable rotating electrical connector is integral to the machine’s function.

All ROTOCON high voltage slip rings are inherently arc-free by design, while providing low and stable electrical resistance. They are environmentally sealed and use robust materials making them the ideal choice for manufacturing and production applications, providing long-lasting performance without the downtime and routine maintenance associated with conventional, metal-on-metal slip rings.

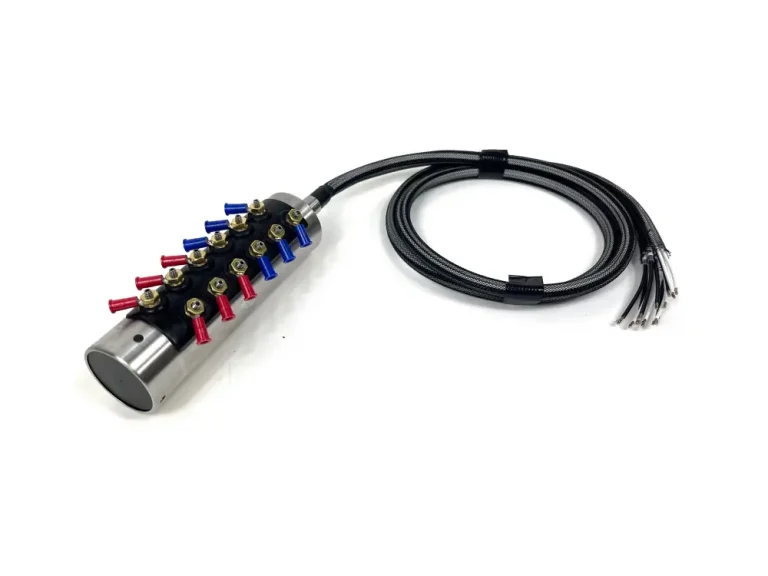

For wireline specific applications, please see our Wireline Series of ROTOCON slip rings. Additionally, for applications which are less than 600 volts, please see our Multi-Channel MX-Series Slip Rings for more information.

Advantages

Why choose ROTOCON High Voltage Slip Rings?

BRUSHLESS TECHNOLOGY MAINTENANCE FREE LOSSLESS SIGNALS ENVIRONMENTALLY SEALED

BRUSHLESS SLIP RING TECHNOLOGY PROVIDES SUPERIOR PERFORMANCE

ROTOCON high voltage slip rings are brushless by design, functioning through a molecularly bonded, liquid metal film contact to transfer electrical power and signal. ROTOCON high voltage rotating electrical connectors introduce near-zero electrical resistance while stationary, or during rotation – regardless of rotational speed, or total number of revolutions.

NEAR-ZERO ELECTRICAL NOISE, STATIONARY OR ROTATING
HIGH SPEED CAPABLE WITHOUT FLUCTUATION IN ELECTRICAL RESISTANCE
NO INTERNAL WEAR PARTS

Discover More

MAINTENANCE FREE, HIGH VOLTAGE SLIP RINGS

Conventional, brushed slip rings rely on metal-on-metal contact to transfer power between stationary and rotating components. ROTOCON high voltage slip rings and rotating electrical connectors do not have any internal wear parts, and therefore do not require any maintenance, adjustment, or replacement of parts during the lifetime of their use.

NO METAL-ON-METAL CONTACT
100% MAINTENANCE-FREE
OUTLAST TRADITIONAL, BRUSHED SLIP RINGS
FREQUENTLY SURPASSES 500M+ REVOLUTIONS

Discover More

PERFECT SLIP RING SIGNAL INTEGRITY, STATIONARY OR ROTATING

ROTOCON brushless slip rings are unique in their ability to provide excellent analog signal transmission, without fluctuation or noise – whether stationary or while rotating. They are the ideal choice for sensitive electrical signals such as encoders, thermocouples, strain gauges, and more.

PERFECT SIGNAL INTEGRITY – REGARDLESS OF SPEED
NEAR-ZERO ELECTRICAL NOISE
EXCELLENT FOR ANALOG SIGNAL TRANSMISSION

Discover More

ENVIRONMENTALLY SEALED SLIP RINGS PROVIDE SAFE AND LONG LASTING OPERATION

ROTOCON high voltage slip rings are environmentally sealed to provide a superior rotating electrical connection. They are sealed from the outside environment and remain unaffected by dust and liquids, as well as humidity and other environmental factors that conventional, brushed slip rings are challenged by. They are internally arc-free making them the ideal choice for wet, dust-filled, clean rooms and other challenging operating environments.

ENVIRONMENTALLY SEALED DESIGN
UNAFFECTED BY LIQUIDS, DUST, AND OTHER FACTORS
ROBUST DESIGN FOR HARSH ENVIRONMENTS

Discover More

READY TO ELEVATE YOUR EXPERIENCE?

Explore the possibilities and configure your ideal solution with Rotocon's Product Configurator. Tailor your product to your unique needs in just a few clicks!



CONFIGURE YOUR ROTOCON

CONFIGURATIONS

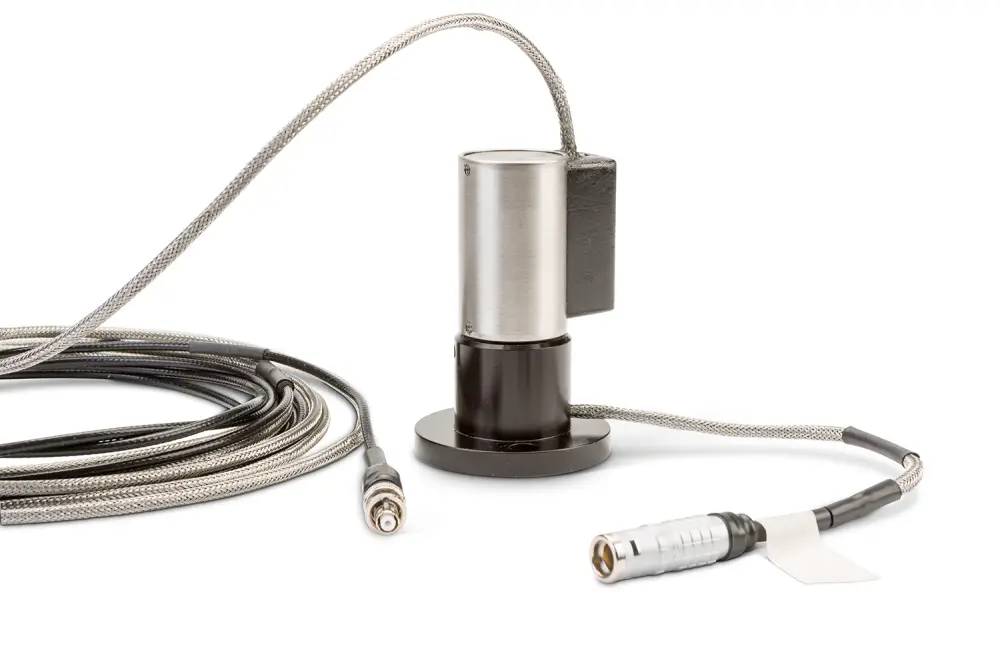

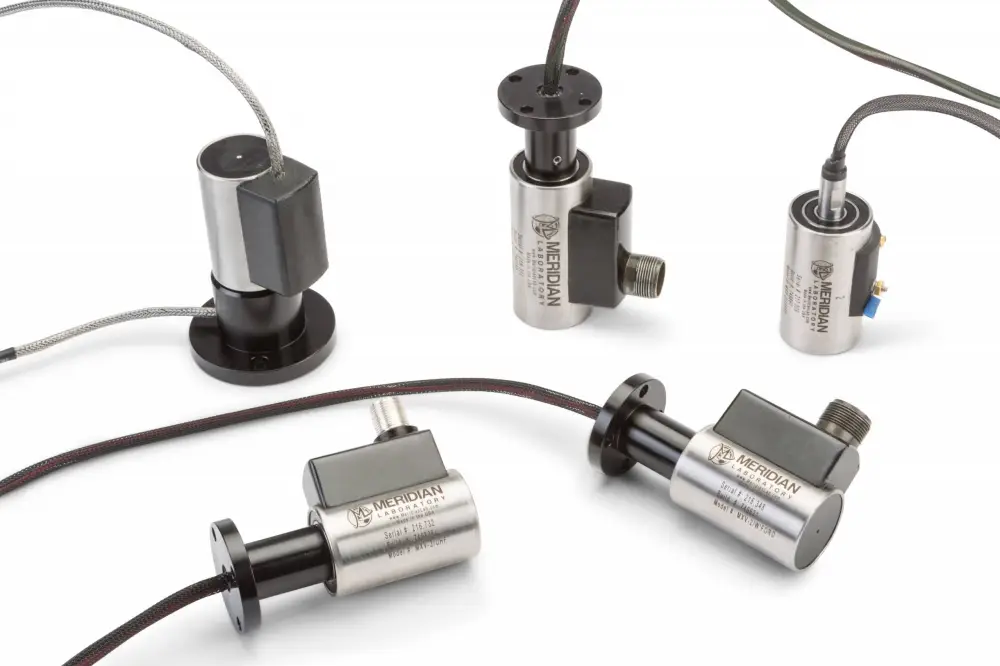

High Voltage Slip Ring Models

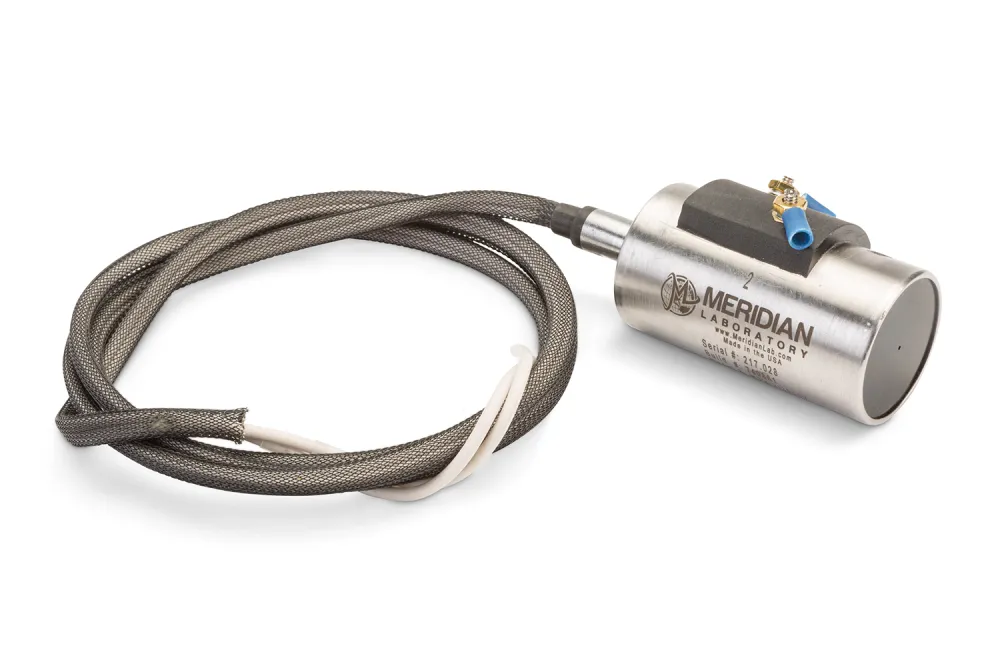

8-14 Channel High Voltage Slip Rings

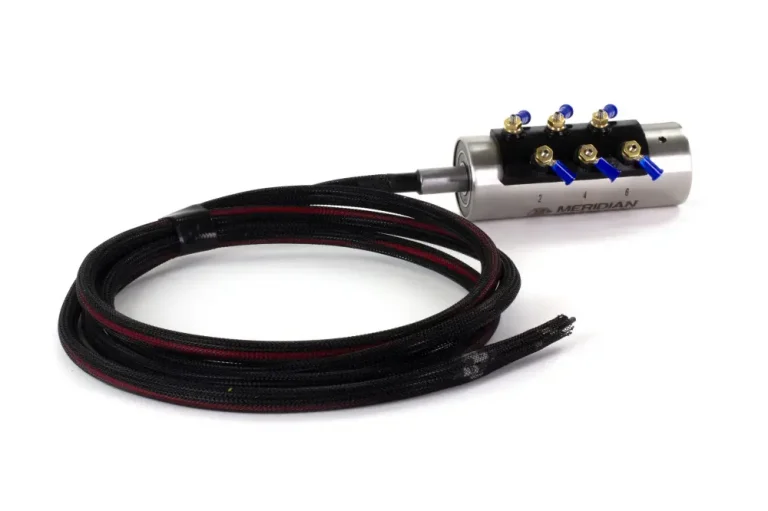

MXV Series (8-14 Conductors)

View Models

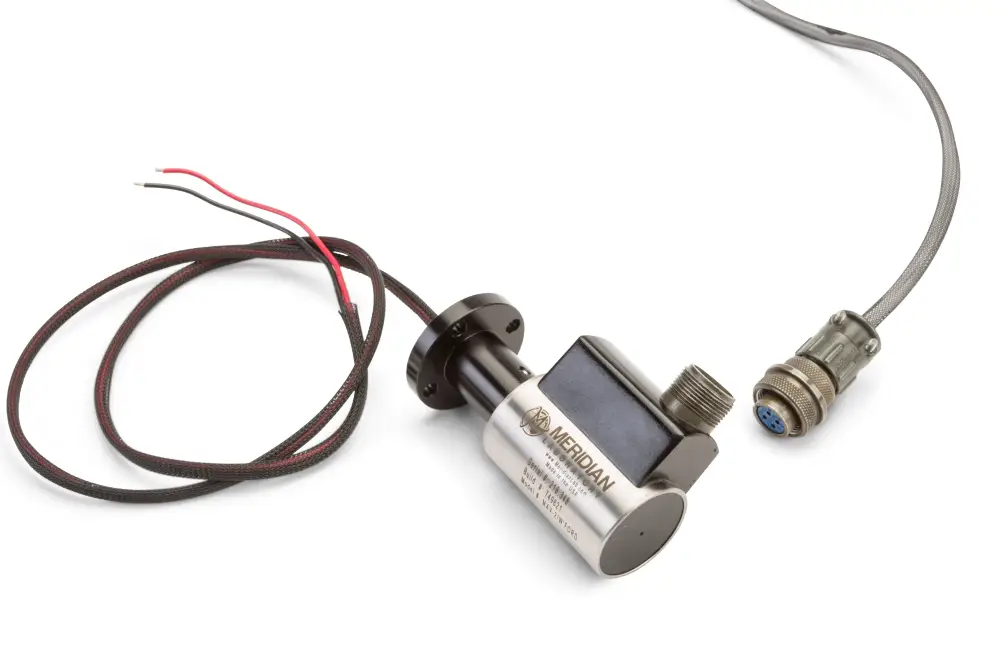

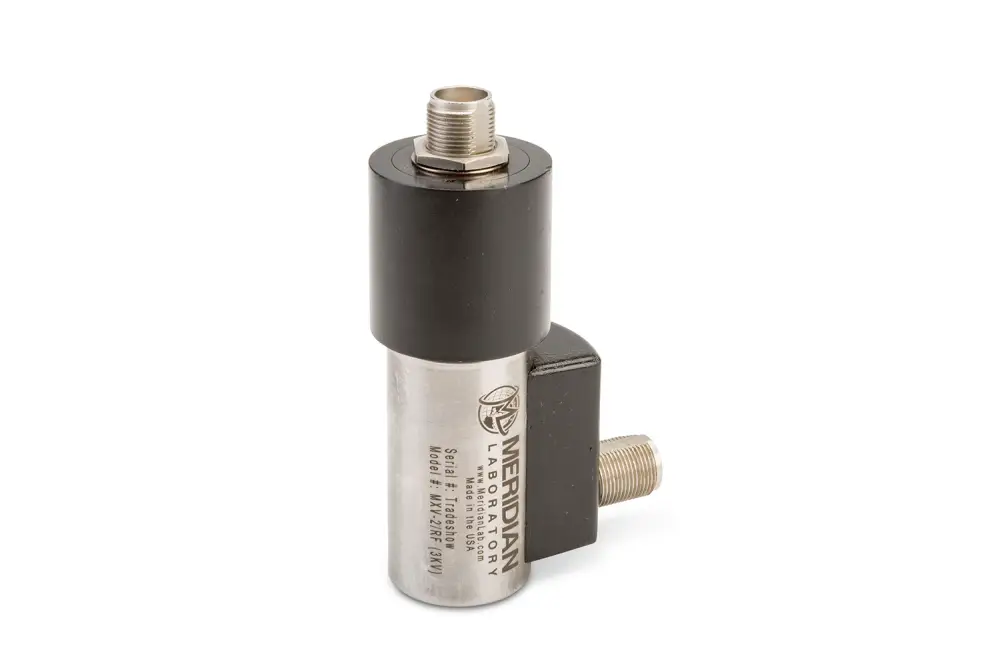

2-6 Channel High Voltage Slip Rings

MXV Series (2-6 Conductors)

View Models

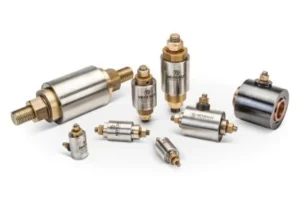

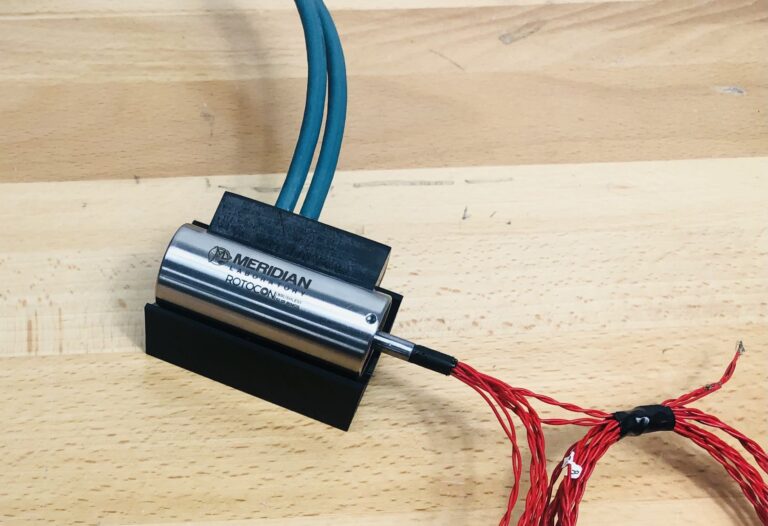

Custom Rotating Electrical Slip Rings

Key Features

Ability to easily modify standard ROTOCON brushless slip rings and rotary electrical connectors
Custom solutions with no minimum order quantity and short lead times
Highly customizable ROTOCON brushless slip rings to meet unique mechanical, electrical, and environmental requirements.

View Custom Slip Rings

Applications & Uses

Common Uses for High Voltage Slip Rings

ULTRASONIC PROCESSES

ROTOCON high voltage slip rings are oftentimes used for ultrasonic processes that combine elevated frequencies and voltages to produce or measure ultrasonic signals in rotating applications. This includes processes such as ultrasonic cutting and etching found in the fabric, machine tool, and inspection industry.

ELECTROSPINNING

ROTOCON high voltage slip rings are used in electrospinning applications which rely on a stable and consistent rotating electrical circuit to ensure fibers are deposited evenly.

ELECTRON BEAM, PULSE POWER, & IMAGERY

ROTOCON high voltage slip rings are used for scientific instrumentation and imaging applications throughout the medical industry, water treatment, as well as in the underwater marine research industry. They provide a consistent electrical signal without degradation due to increased voltages or rotation.

View All Applications
