ROTOCON HIGH-SPEED SLIP RING RESOURCES

Explore the details below, including technical drawings, mounting instructions, applications, FAQs, expert articles, and more.

Configurations

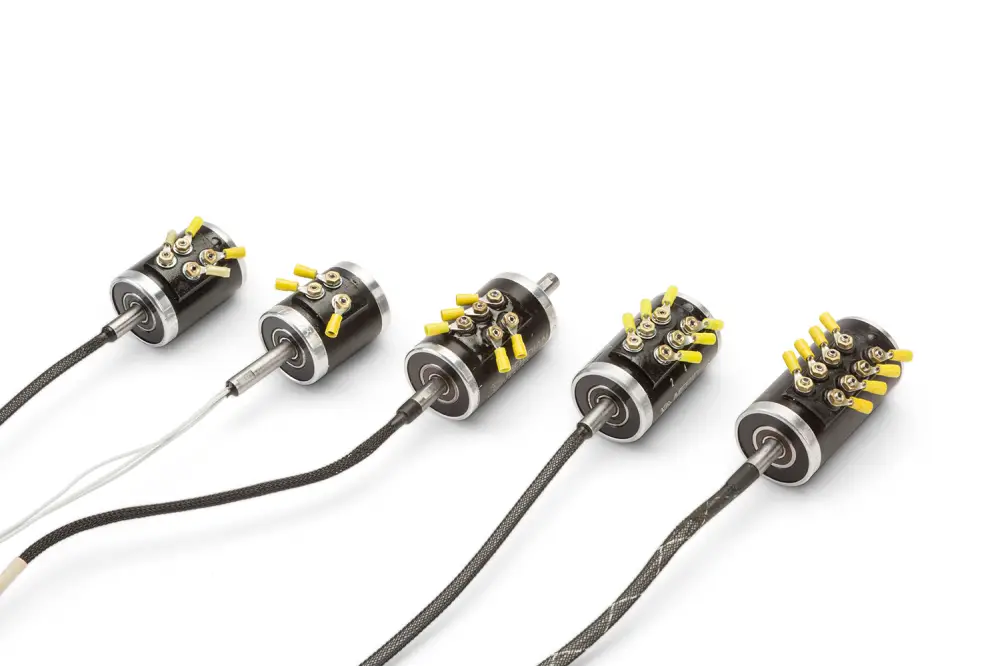

MM Series High-Speed Slip Rings

Filter Products

Close Filter

Name	Channels	Amperage	Voltage	Thermocouple Wire	Mounting	Shaft Electrical Term	Body Electrical Term	2D Download Action Type	File Datasheet	Model Download (3D STP)	Photos
MMS-12	12	1.5A	600V	Yes	End of Shaft	Flying Leads	Ring Terminals	Odoo Custom Model	MERIDIAN-LABORATORY-ROTOCON-MMS12.pdf	Yes
MM-12-0706	12	1A	600V		Flange	Flying Leads	Flying Leads	Odoo Custom Model		Yes
MM-12-0920	12	1.5A	600V		Flange	Flying Leads	Flying Leads	Odoo Custom Model	MERIDIAN-LABORATORY-ROTOCON-MM120920.pdf	Yes
MM-12-0625	12	1.5A	600V		End of Shaft	Flying Leads	Flying Leads	Odoo Custom Model	MERIDIAN-LABORATORY-ROTOCON-MM120625.pdf	Yes
MM-12-0213	12	1A	600V		Flange	Flying Leads	Flying Leads	Odoo Custom Model		Yes	IMG_9396.jpg, IMG_9397.jpg
MM-12	12	1A	600V		End of Shaft	Flying Leads	Ring Terminals	Standard Model	MERIDIAN-LABORATORY-ROTOCON-MM12.pdf	Yes
MM-10	10	1.5A	600V		End of Shaft	Flying Leads	Ring Terminals	Standard Model		Yes
MM-8-0717	8	Signal	600V	Yes	End of Shaft	Flying Leads	Flying Leads	Odoo Custom Model	MERIDIAN-LABORATORY-ROTOCON-MM80717.pdf	Yes
MM-8-0916	8	2.75A	600V		End of Shaft	Connector	Flying Leads	Odoo Custom Model		Yes
MM-8	8	1.5A	600V		End of Shaft	Flying Leads	Ring Terminals	Standard Model		Yes
MM-6-0506	6	2.75A	600V		Flange	Flying Leads	Flying Leads	Odoo Custom Model	MERIDIAN-LABORATORY-ROTOCON-MM60506.pdf	Yes
MM-6-1118	6	2.75A	600V	Yes	End of Shaft	Flying Leads	Ring Terminals	Odoo Custom Model		Yes
MM-6	6	2.75A	600V		End of Shaft	Flying Leads	Ring Terminals	Standard Model		Yes
MM-5-0804	5	2.75A	600V		End of Shaft	Flying Leads	Flying Leads	Custom Model		Yes
MM-5-0511	5	2.75A	600V		End of Shaft	Flying Leads	Flying Leads	Custom Model		Yes
MM-5	5	4A	600V		End of Shaft	Flying Leads	Ring Terminals	Standard Model		Yes
MM-4-1213	4	5.5A	600V		End of Shaft	Flying Leads	Flying Leads	Custom Model		Yes
MM-4-1031	4	2.75A	600V		End of Shaft	Flying Leads	Ring Terminals	Odoo Custom Model	MERIDIAN-LABORATORY-ROTOCON-MM41031.pdf	Yes
MM-4	4	4A	600V		End of Shaft	Flying Leads	Ring Terminals	Standard Model	MERIDIAN-LABORATORY-ROTOCON-MM4.pdf	Yes
MM-3-ZSDN	3	4A	600V		End of Shaft	Flying Leads	Ring Terminals	Custom Model		Yes
MM-3	3	4A	600V		End of Shaft	Flying Leads	Ring Terminals	Standard Model		Yes
MM-2-0521	2	5A	600V		End of Shaft	Flying Leads	Flying Leads	Odoo Custom Model	MERIDIAN-LABORATORY-ROTOCON-MM20521.pdf	Yes
MM-2	2	5.5A	600V		End of Shaft	Flying Leads	Ring Terminals	Standard Model	MERIDIAN-LABORATORY-ROTOCON-MM2.pdf	Yes

Filter: Reset

#wtbp-table-61_851453_wrapper table {border-collapse: collapse;} #wtbp-table-61_851453_wrapper td {border-top: 1px solid #ffffff;border-left: 1px solid #a5c2ca;border-right: 1px solid #a5c2ca;} #wtbp-table-61_851453_wrapper tbody tr:first-child td {border-top: none;} #wtbp-table-61_851453_wrapper tbody tr:last-child td {border-bottom: 1px solid #ffffff;} #wtbp-table-61_851453_wrapper .child table {border-collapse: collapse;} .wtbpModalContent {width: 80%;} .wtbpModalContent.wtbpModalContentForVariations {max-width: 600px;}

Installation

ROTOCON MM Series Installation

PDF Download

FAQs

Common High-Speed Slip Ring Questions

Can a ROTOCON be used in corrosive environments?

Yes, ROTOCON rotary electrical connectors and rotary grounds are built with durable, industrial-grade materials, making them suitable for many challenging environments. Depending on the level of exposure to corrosive substances, a standard model may be sufficient for your application. Meridian Laboratory also offers upgrades to enhance ingress protection (IP rating) and chemical resistance. For extreme cases, Meridian Laboratory has the ability to deliver custom ROTOCONs to meet the challenging environmental requirements of your application. Contact us to discuss your project and find the best solution for your needs.

Can a ROTOCON be used to transmit torque?

ROTOCON brushless rotary electrical connectors are primarily designed as passive devices and are not typically intended to transmit torque or support mechanical loads. However, Meridian Laboratory does offer specialized ROTOCON models that can be engineered to deliver rotational torque through the shaft. If your application requires torque transmission, please contact us so we can ensure the appropriate design and configuration for your needs.

Do you offer mating connectors?

Yes, Meridian Laboratory can source and supply mating electrical connectors and other accessories for easy integration into systems.

Does Meridian Laboratory offer miniature ROTOCONs?

The smallest series of multi-channel ROTOCON rotary electrical connectors which Meridian Laboratory offers is the MM Series. For help integrating ROTOCONs into small areas, please contact us for direct support.

What is the minimum quantity required for a custom ROTOCON?

There is no minimum order requirement for a custom ROTOCON slip ring. In most cases, we can tailor our standard models to fit your specific needs without a minimum quantity requirement.

For more complex or highly specialized projects, we work closely with your R&D and engineering teams to efficiently develop prototype, pre-production, and final production models at each stage of your project. Whether you need a single unit or a full production run, we are committed to delivering the right solution for your application. Contact us to discuss your requirements!

Is the MM Series offered in more than 12 electrical contacts / channels?

The MM Series of high speed rotary electrical connectors features a maximum of 12 electrical channels / contacts. For higher channel counts, we offer our ROTOCON MX Series which features up to 30 electrical channels / contacts, or our Custom ROTOCON brushless slip rings to meet your needs.
